< Eclipse >

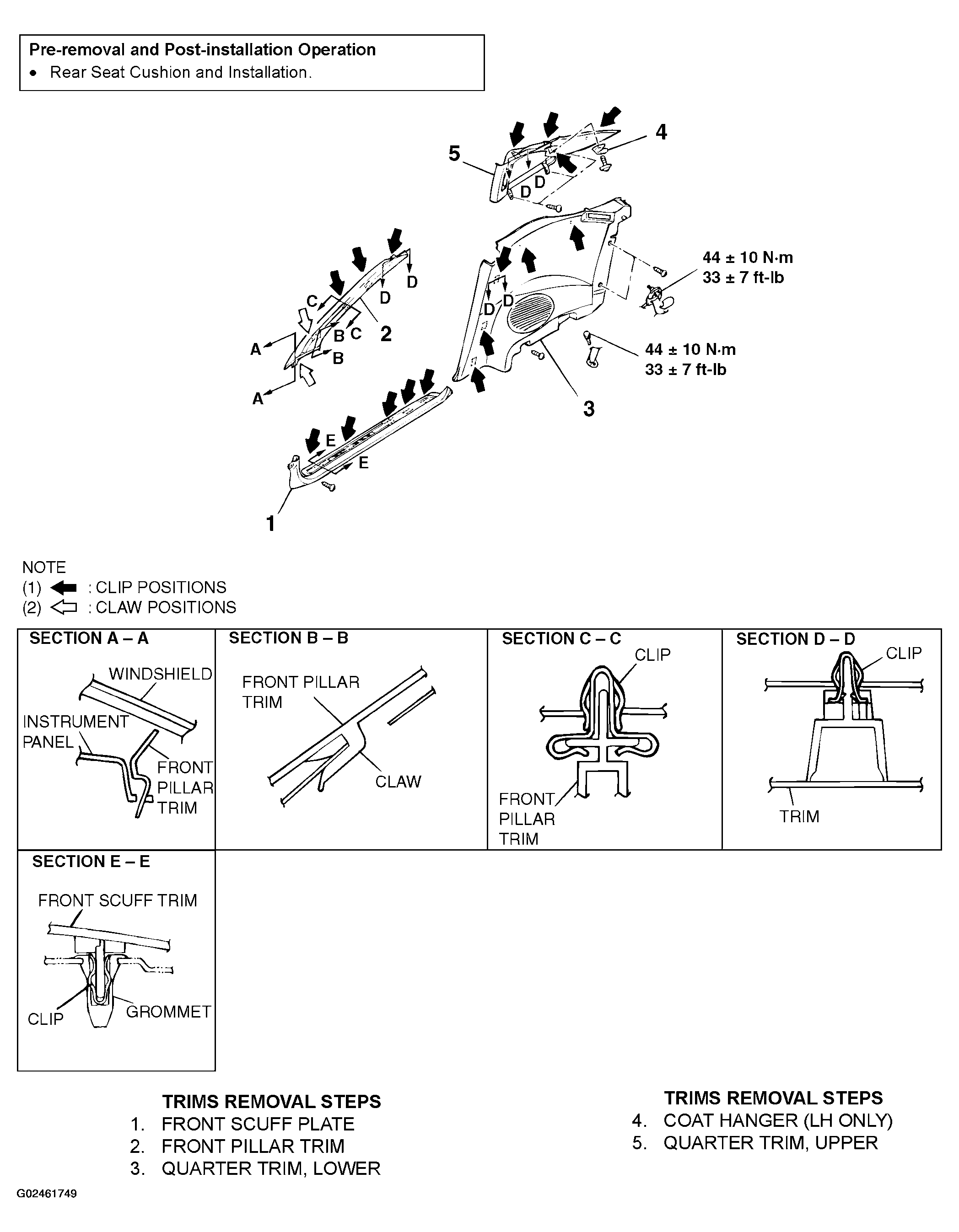

Fig 1: Installing Trims - Clip And Claw Position (Eclipse) (1 Of 2)
G02461749Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

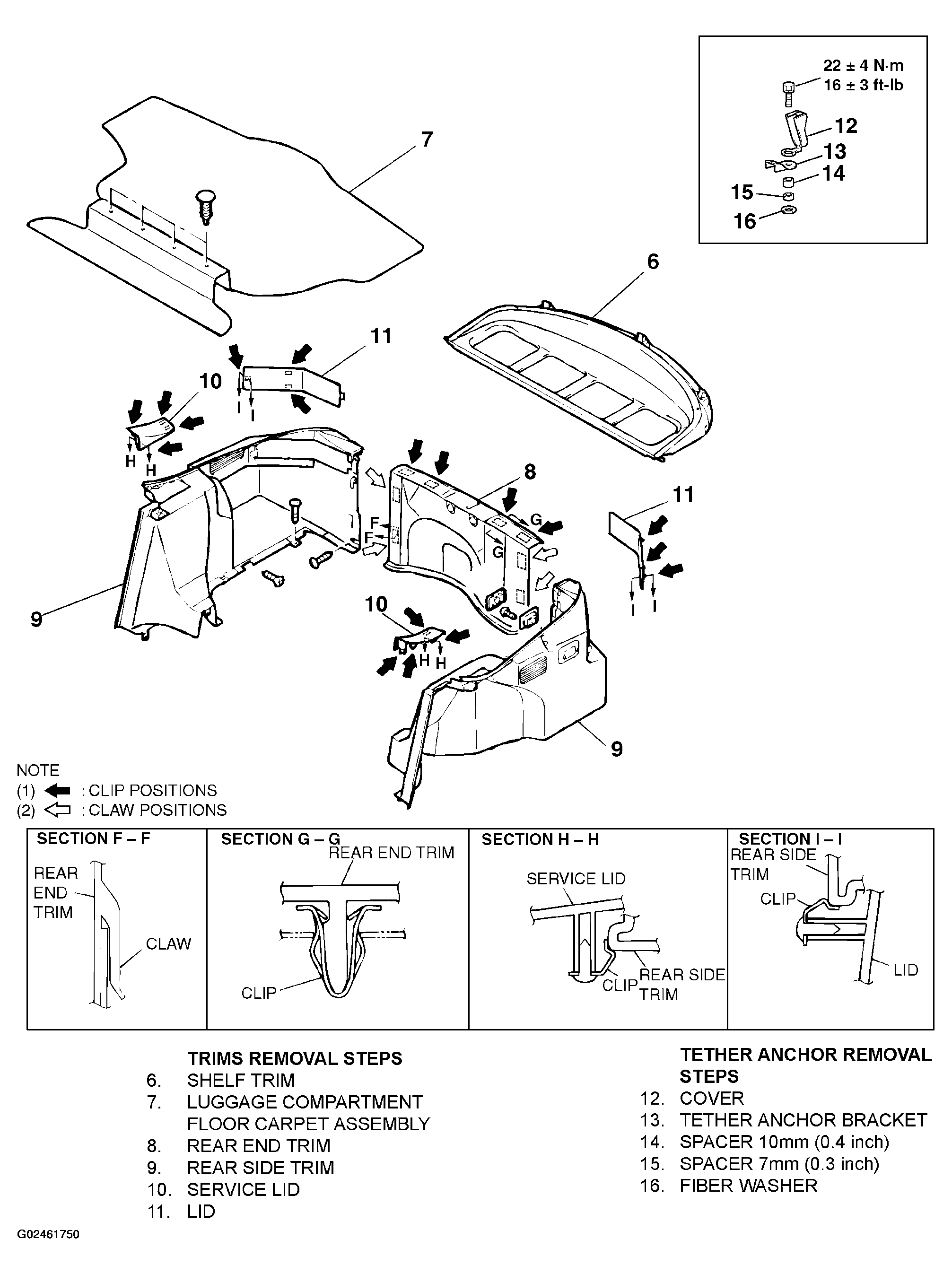

Fig 2: Installing Trims - Clip And Claw Position (Eclipse) (2 Of 2)
G02461750Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
