Backup Light Switch

Check for continuity between terminals.

BACKUP LIGHT SWITCH TERMINALS CONTINUITY

SWITCH CONDITION CONTINUITY
Pressed Open
Released Conductive

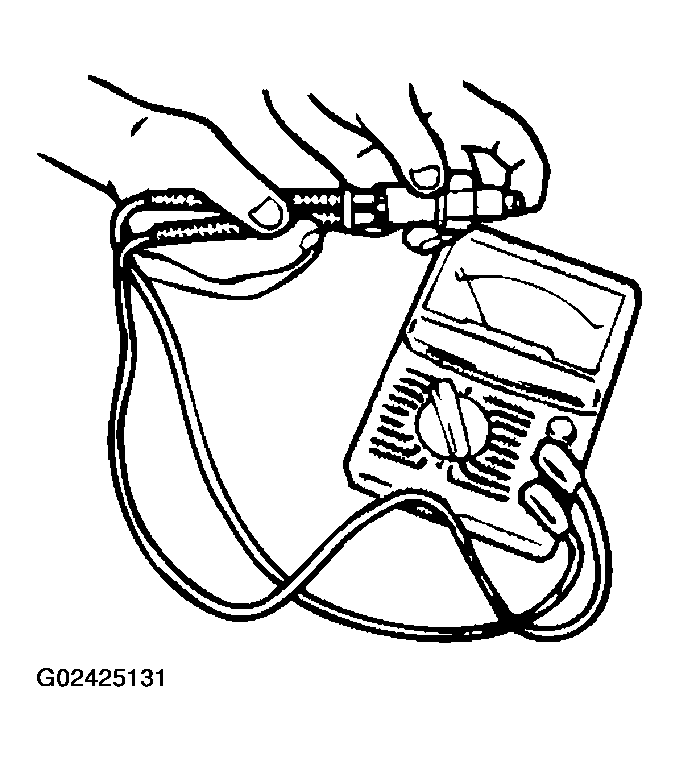

Fig 1: Checking Continuity Between Backup Light Switch Terminals
G02425131Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
