Ball Joint Dust Cover Replacement: Notes

If the dust cover is damaged accidentally during service work, replace the dust cover as follows:

1. Remove the dust cover.
2. Apply multipurpose grease to the lip and inside of the dust cover.
3. Using special tool MB990799, drive in the dust cover until it is fully seated.

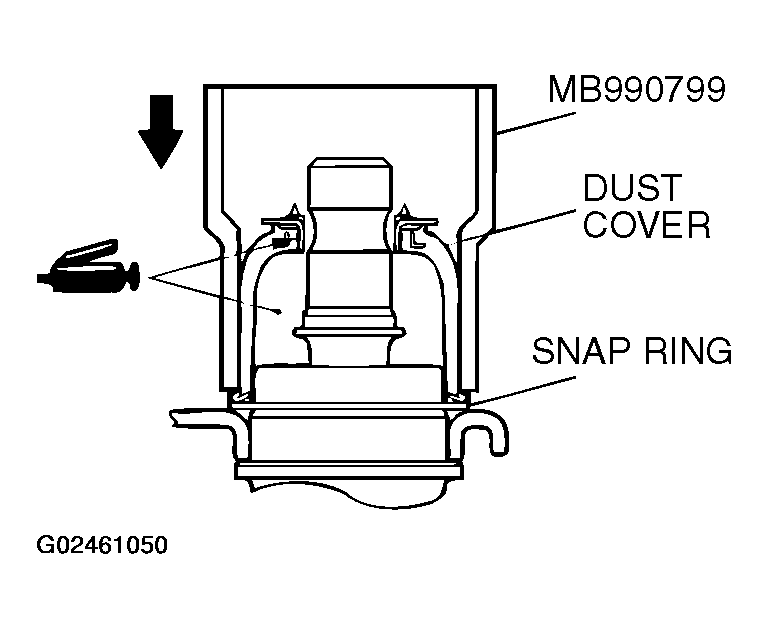

   Fig 1: Seating Dust Cover

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Using special tool MB991007, drive in the dust cover plate until it contacts the projection of the ball joint.
5. Check the dust cover for cracks or damage by pushing it with your finger.

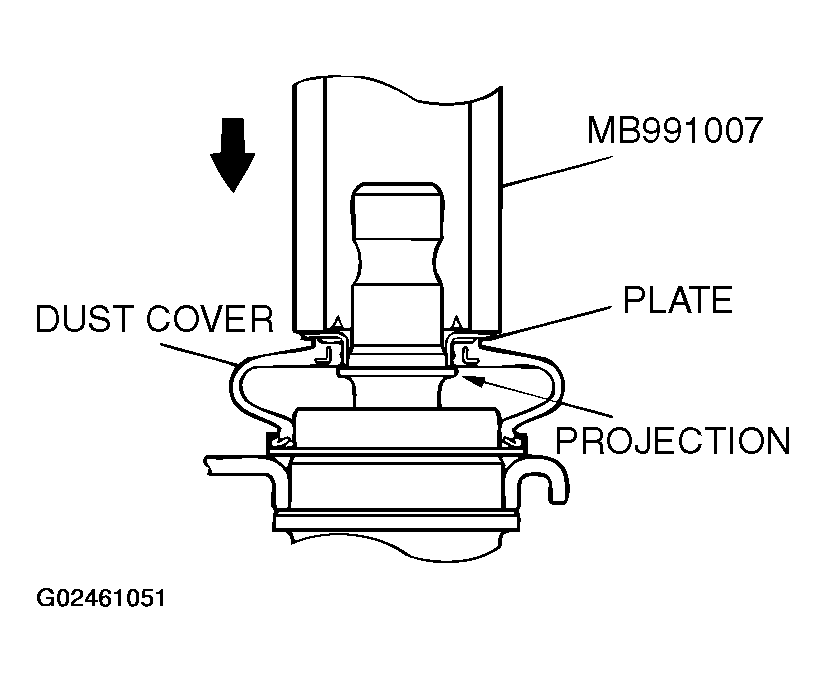

   Fig 2: Driving Dust Cover Plate In

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
