Disassembly And Assembly: Notes

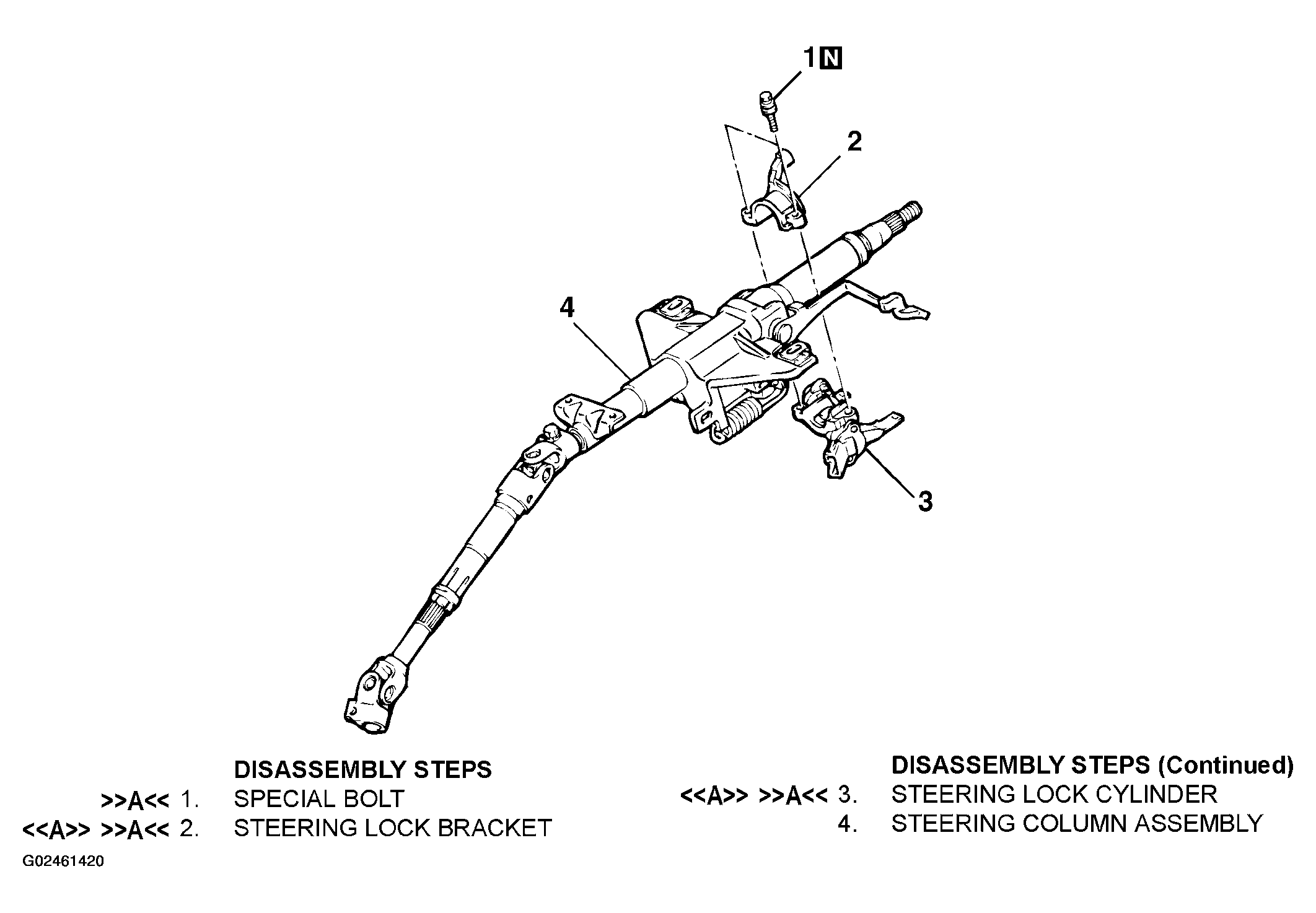

Fig 1: Disassembling /Assembling Procedure
G02461420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
