Home >> Mitsubishi >> 2005 >> Eclipse GS, Standard >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Hoses >> Removal And Installation >> Notes

Removal And Installation: Notes

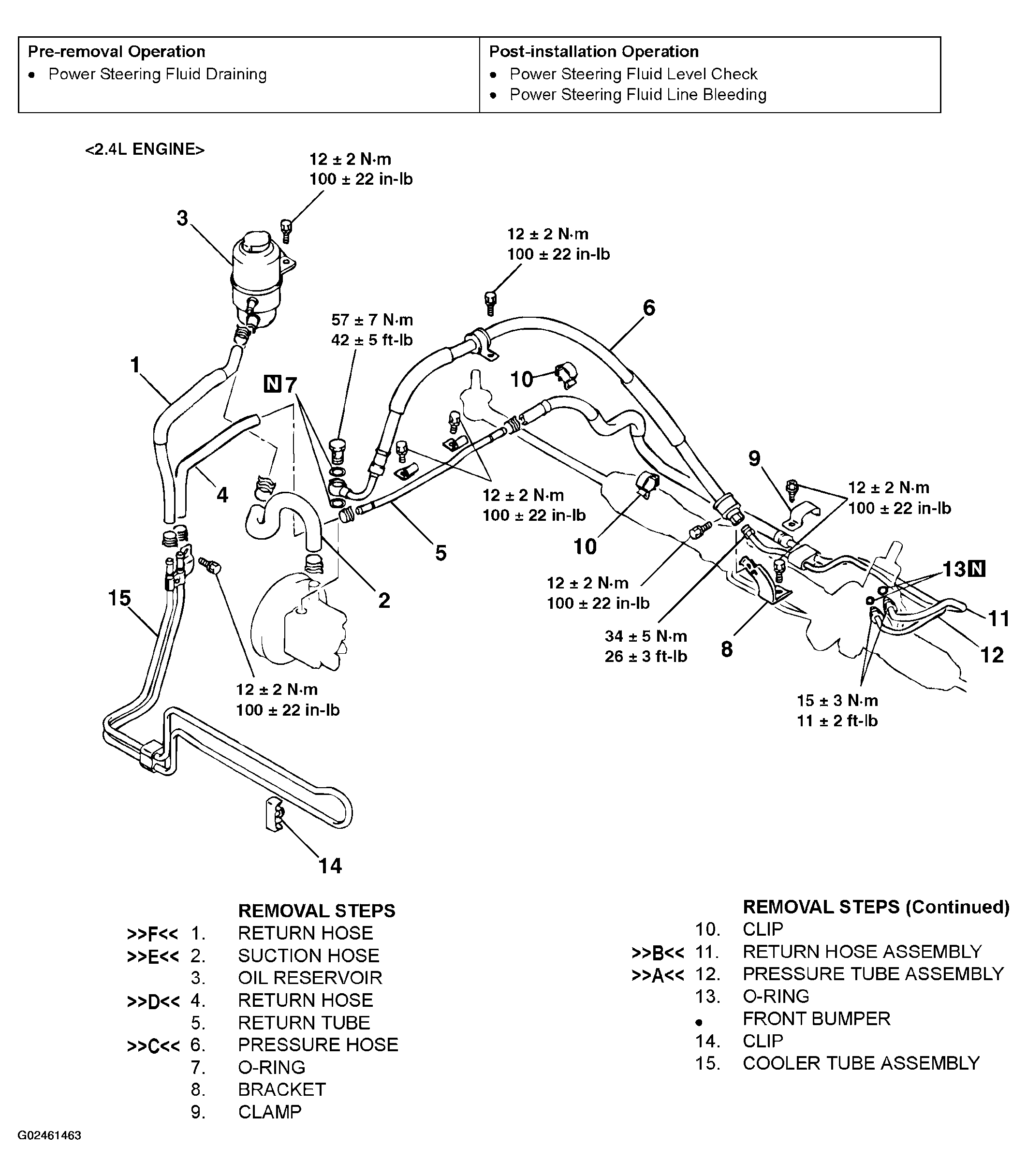

Fig 1: Removing /Installing Power Steering Hoses (1 Of 2)
G02461463Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

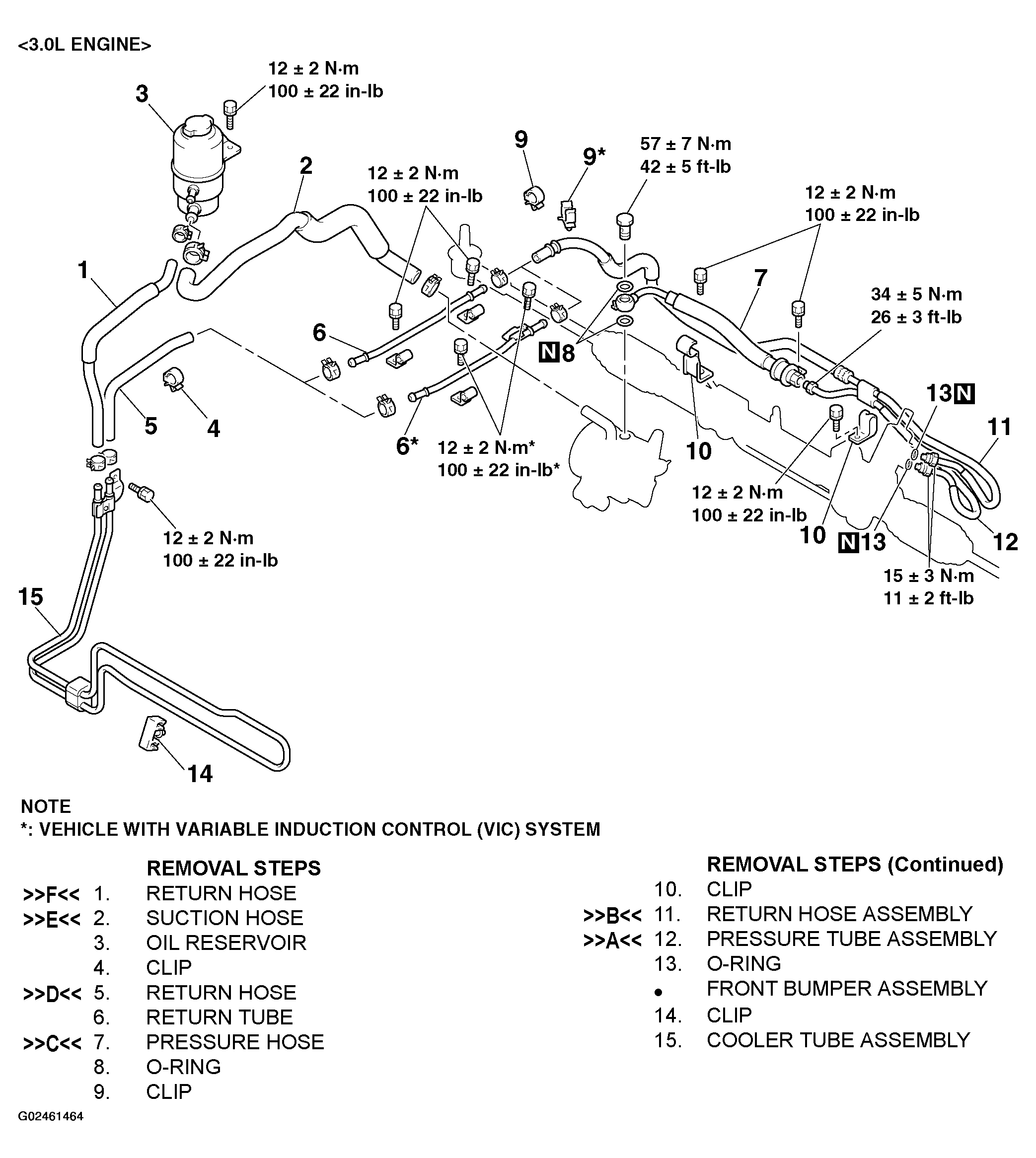

Fig 2: Removing /Installing Power Steering Hoses (2 Of 2)
G02461464Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
