Service Specifications

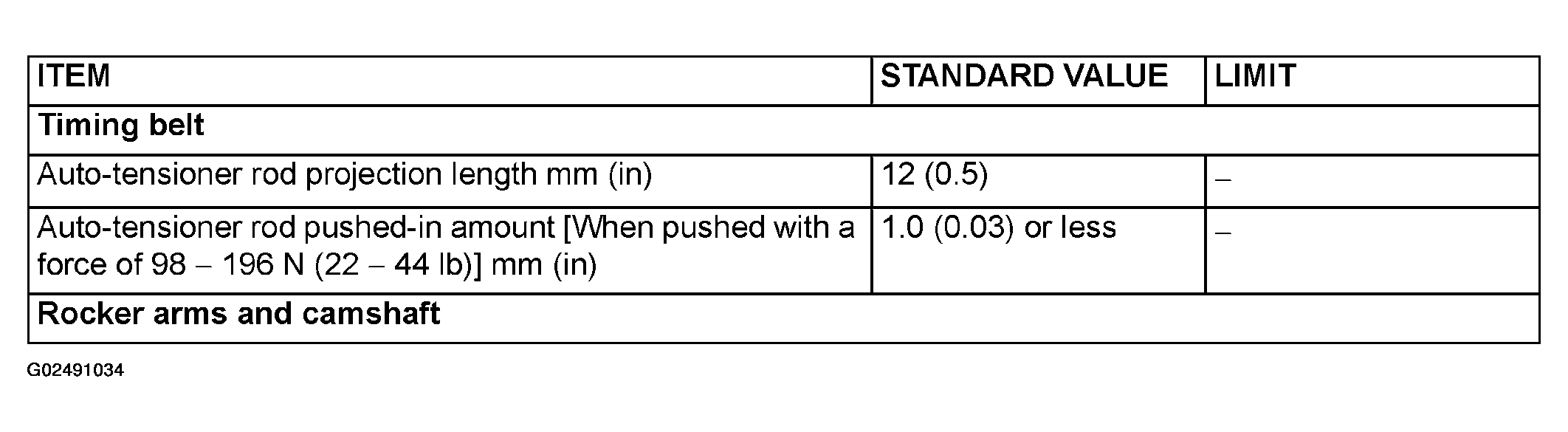

Fig 1: Service Specifications Table (1 Of 5)

G02491034

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

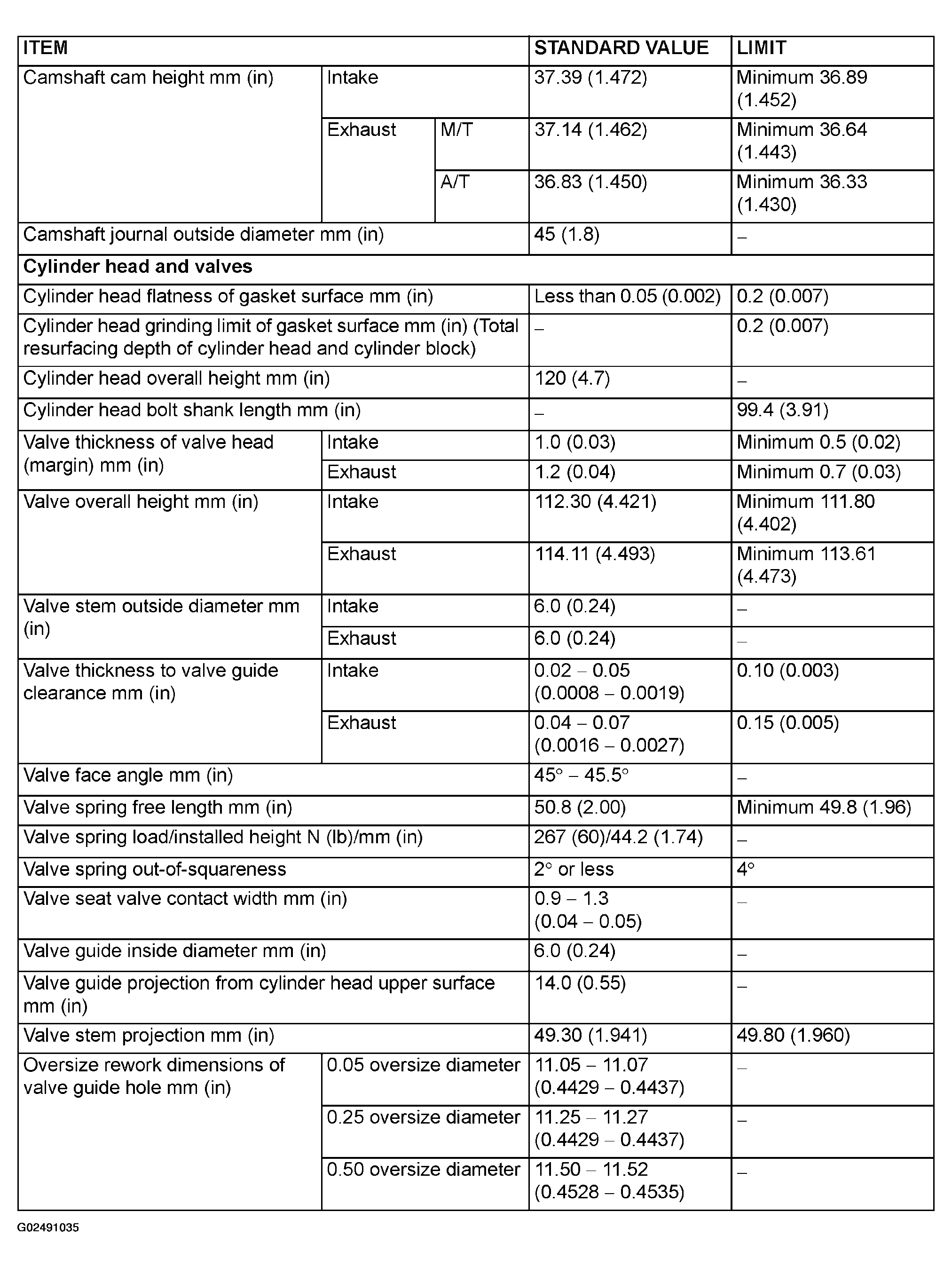

Fig 2: Service Specifications Table (2 Of 5)

G02491035

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Service Specifications Table (3 Of 5)

G02424812

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

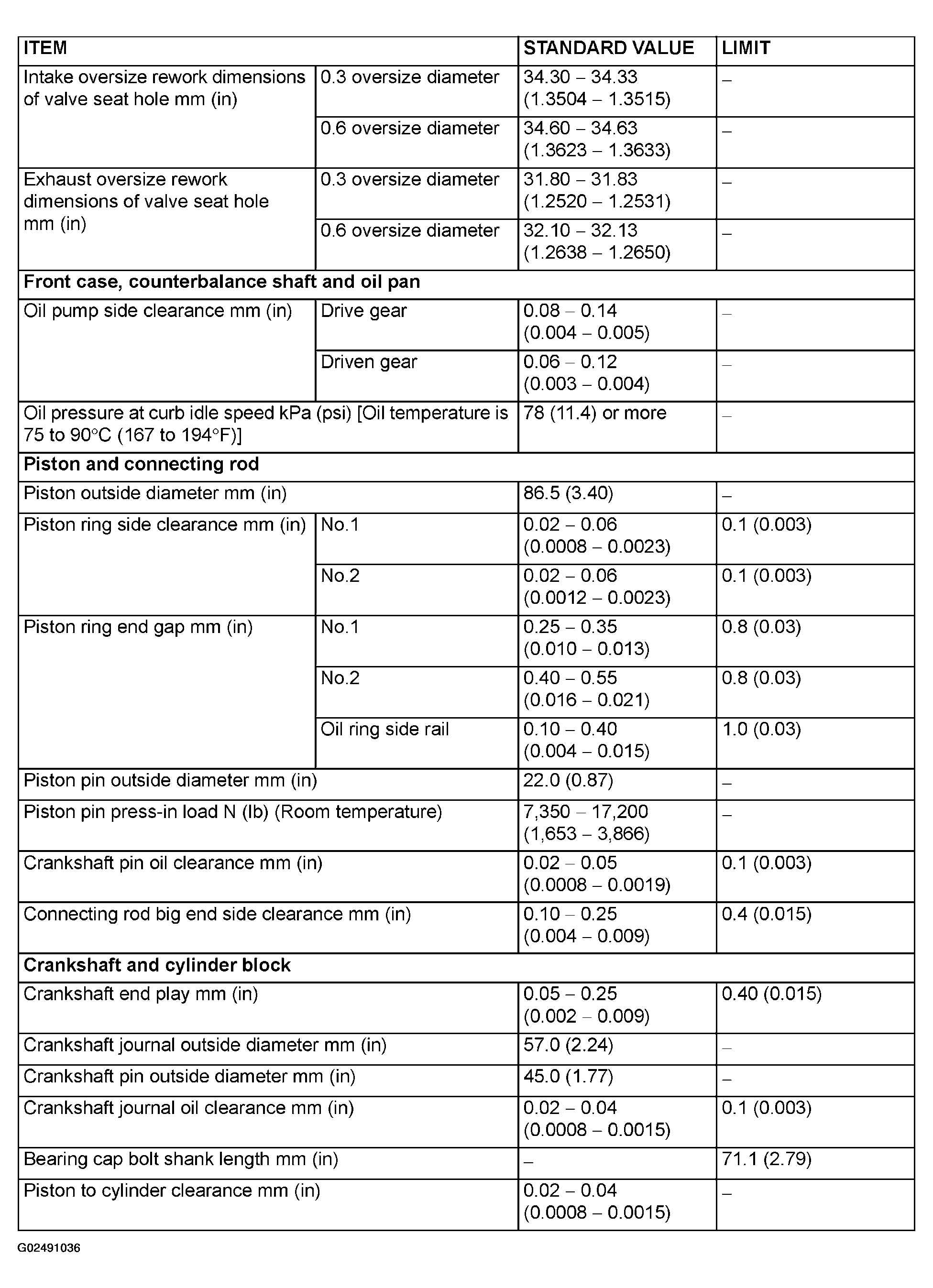

Fig 4: Service Specifications Table (4 Of 5)

G02491036

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

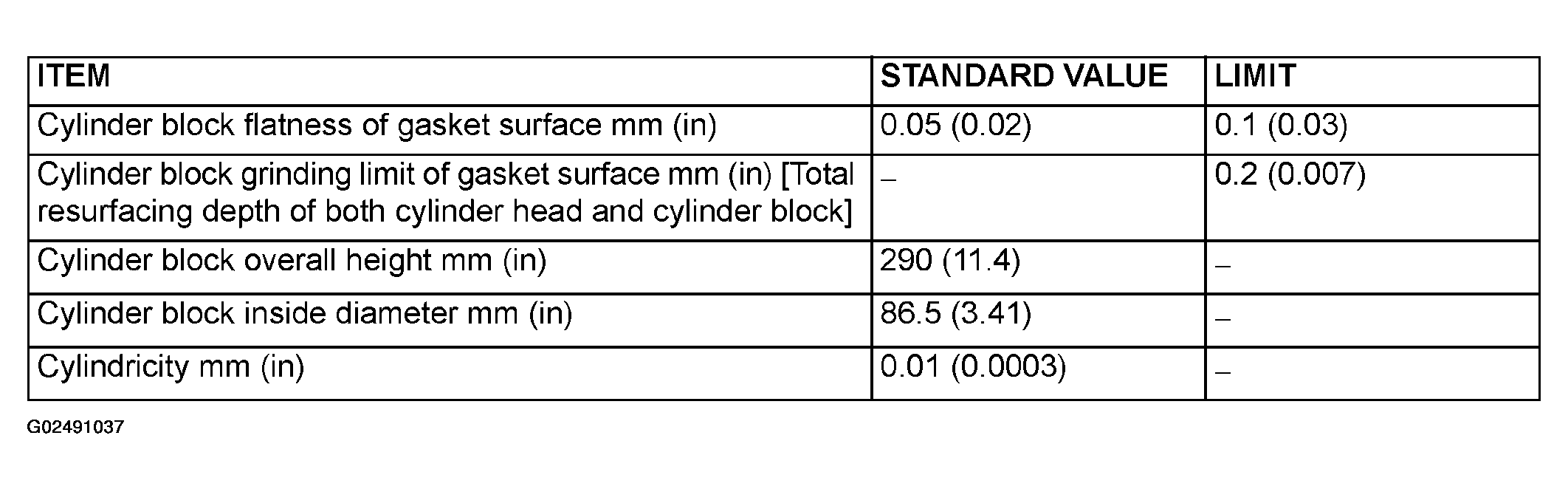

Fig 5: Service Specifications Table (5 Of 5)

G02491037

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
