Diagnostic Trouble Code Chart

Follow the inspection chart that is appropriate for the diagnostic trouble code.

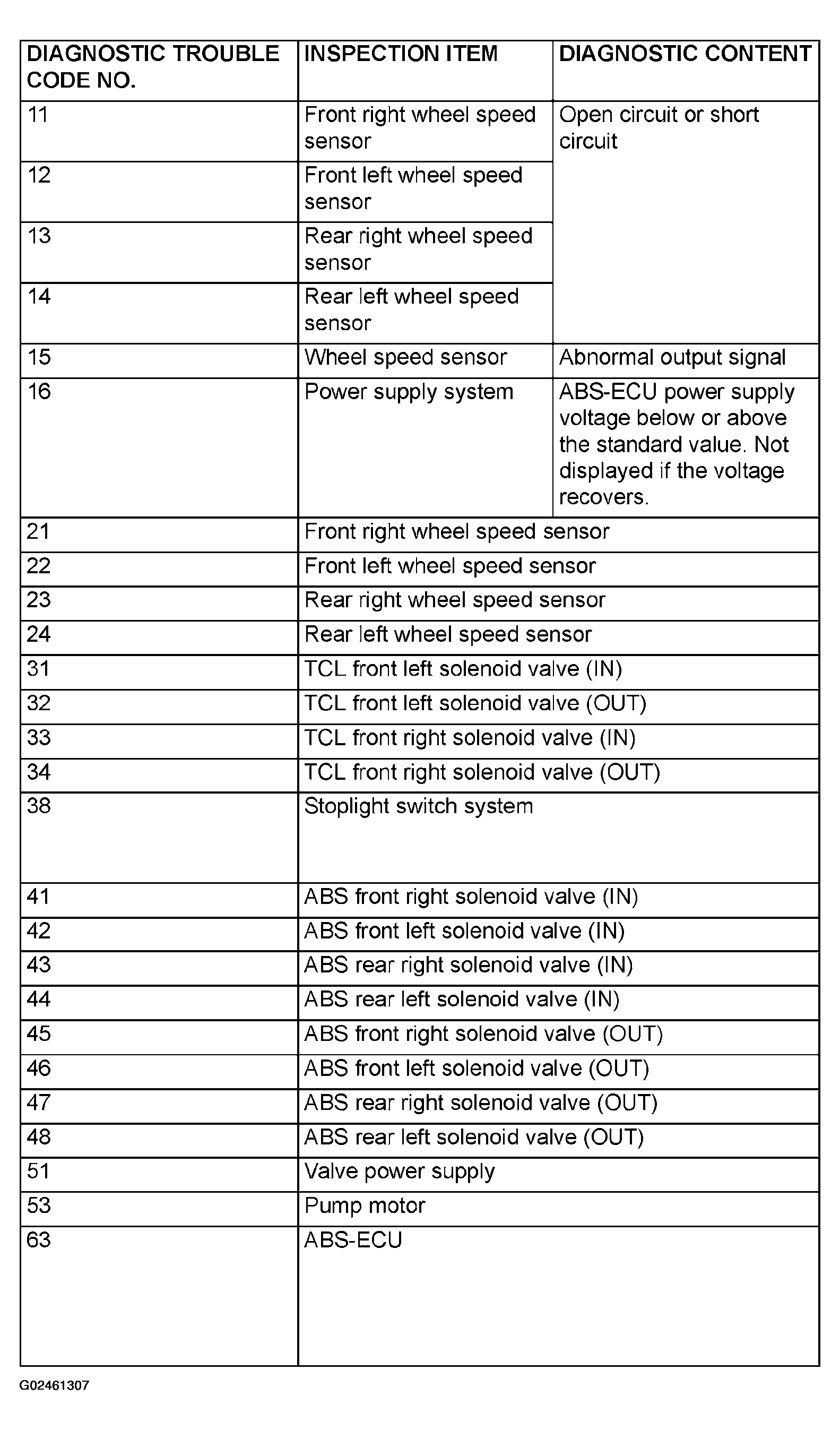

Fig 1: Diagnostic Trouble Code Chart

G02461307

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
