Disassembly And Assembly: Notes

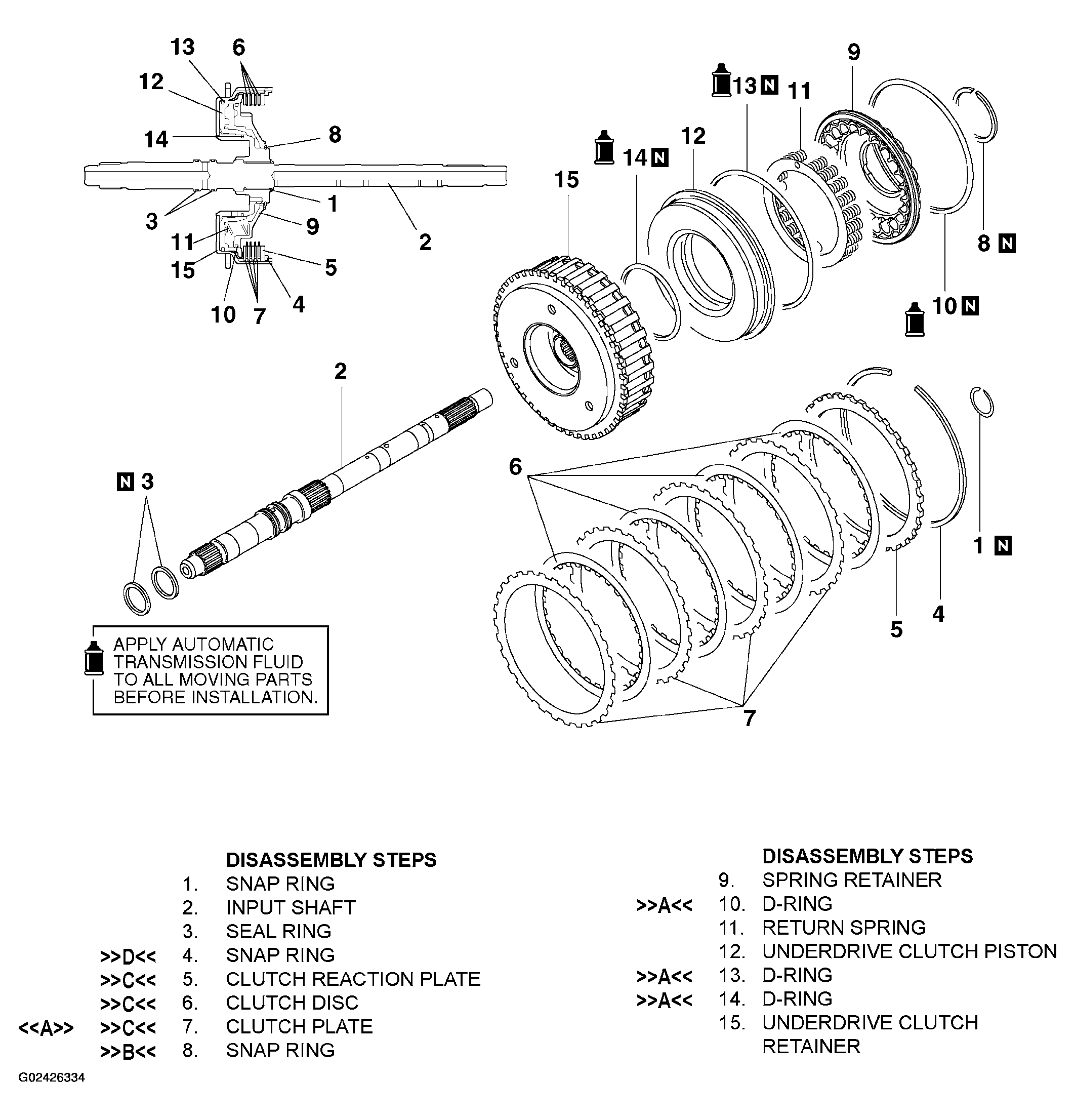

Fig 1: Disassembly/Assembly Of Underdrive Clutch And Input Shaft
G02426334Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
