< 2.4L Engine >

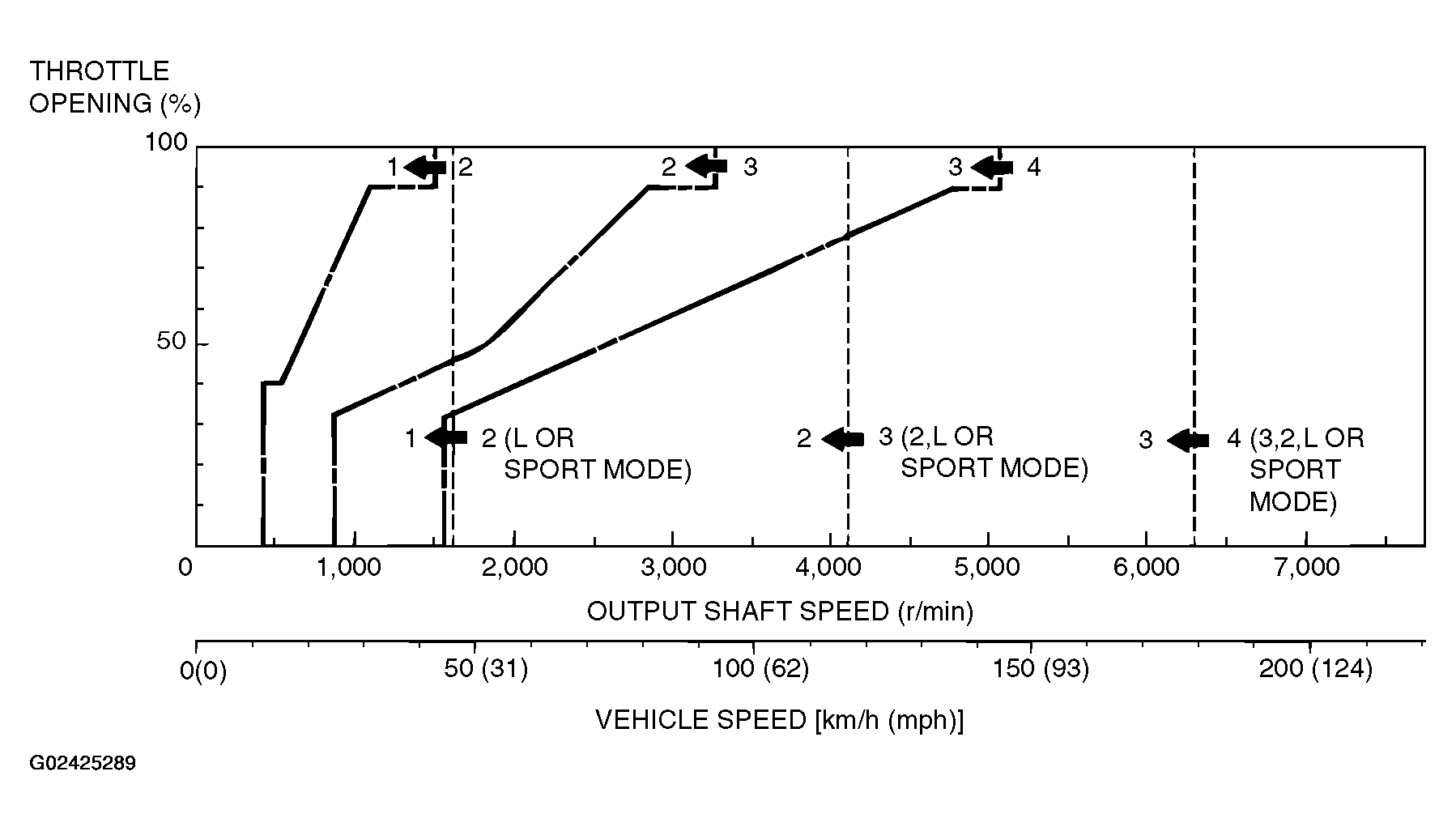

Fig 1: Identifying Downshift Pattern (2.4L Engine)
G02425289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
