SRS Warning Light Check

  1. Check that the SRS warning light illuminates when the ignition switch is in the "ON" position.
  2. Check that it illuminates for approximately seven seconds and then goes out.
  3. If not, check for DTC.

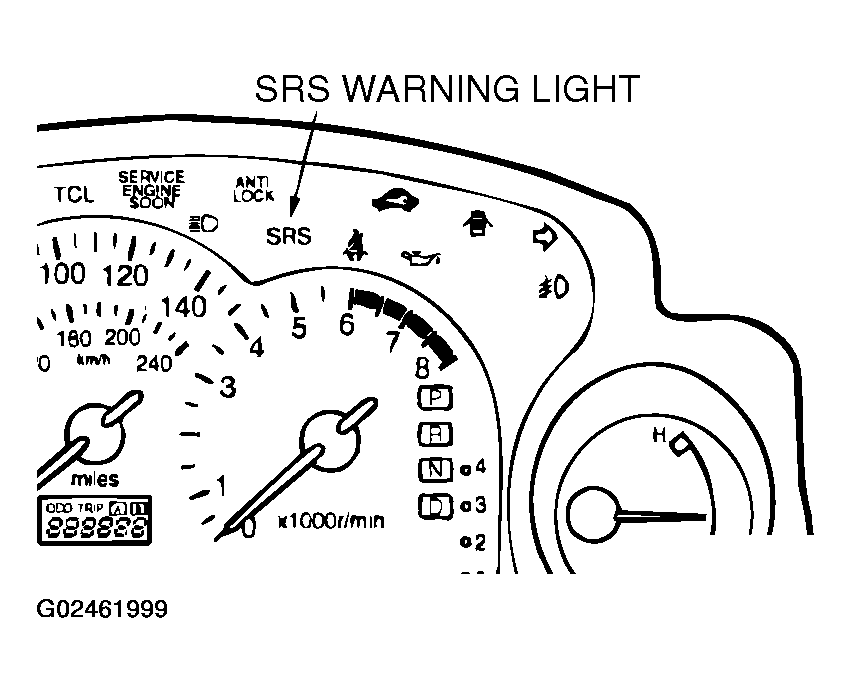

    Fig 1: Checking SRS Warning Light Illumination
    G02461999Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
