Home >> Mitsubishi >> 2005 >> Eclipse GS, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Supply >> Fuel Tank >> Removal And Installation >> Notes

Removal And Installation: Notes

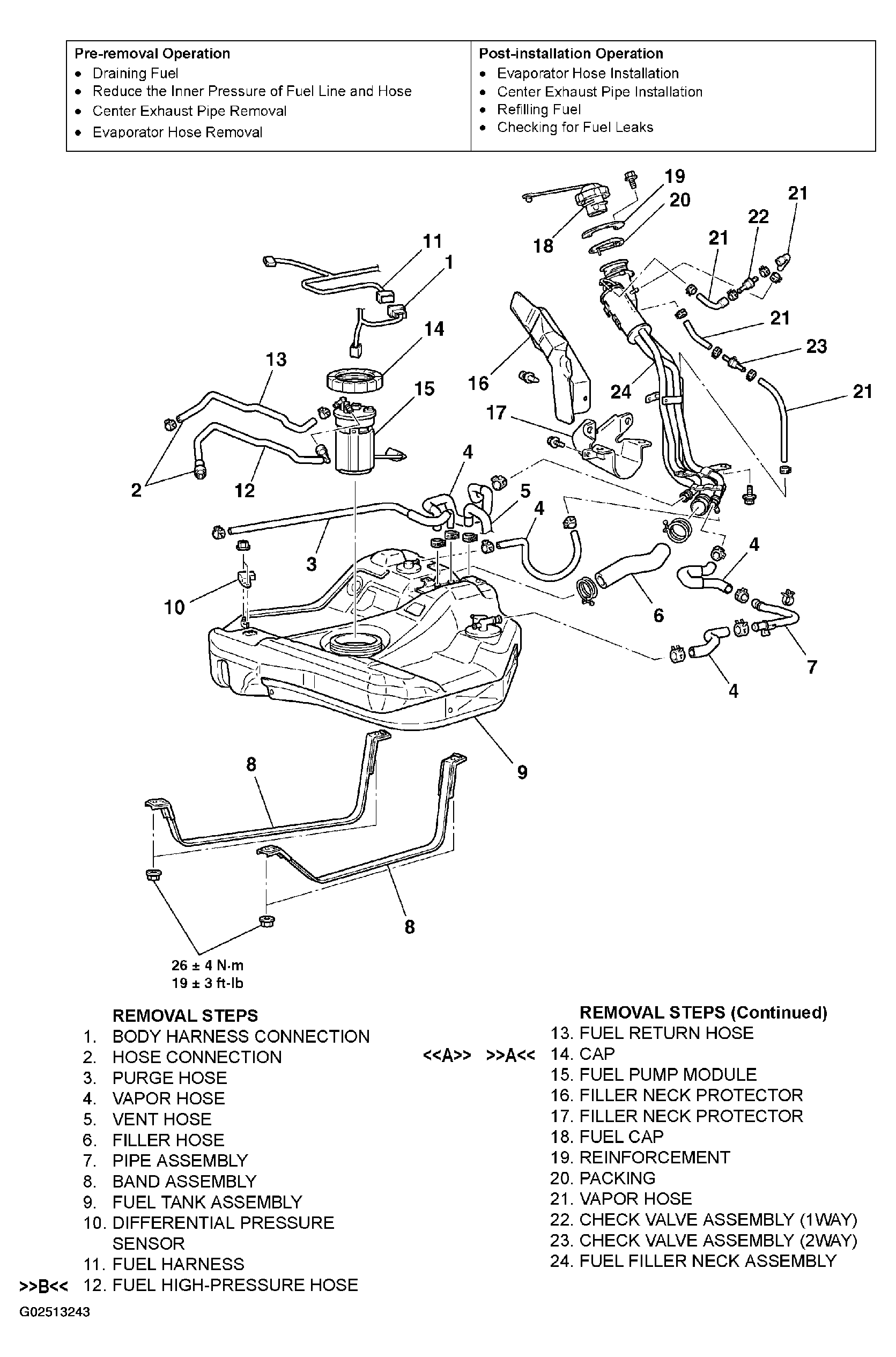

Fig 1: Removing/Installing Fuel Tank Components
G02513243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
