Removal And Installation: Notes

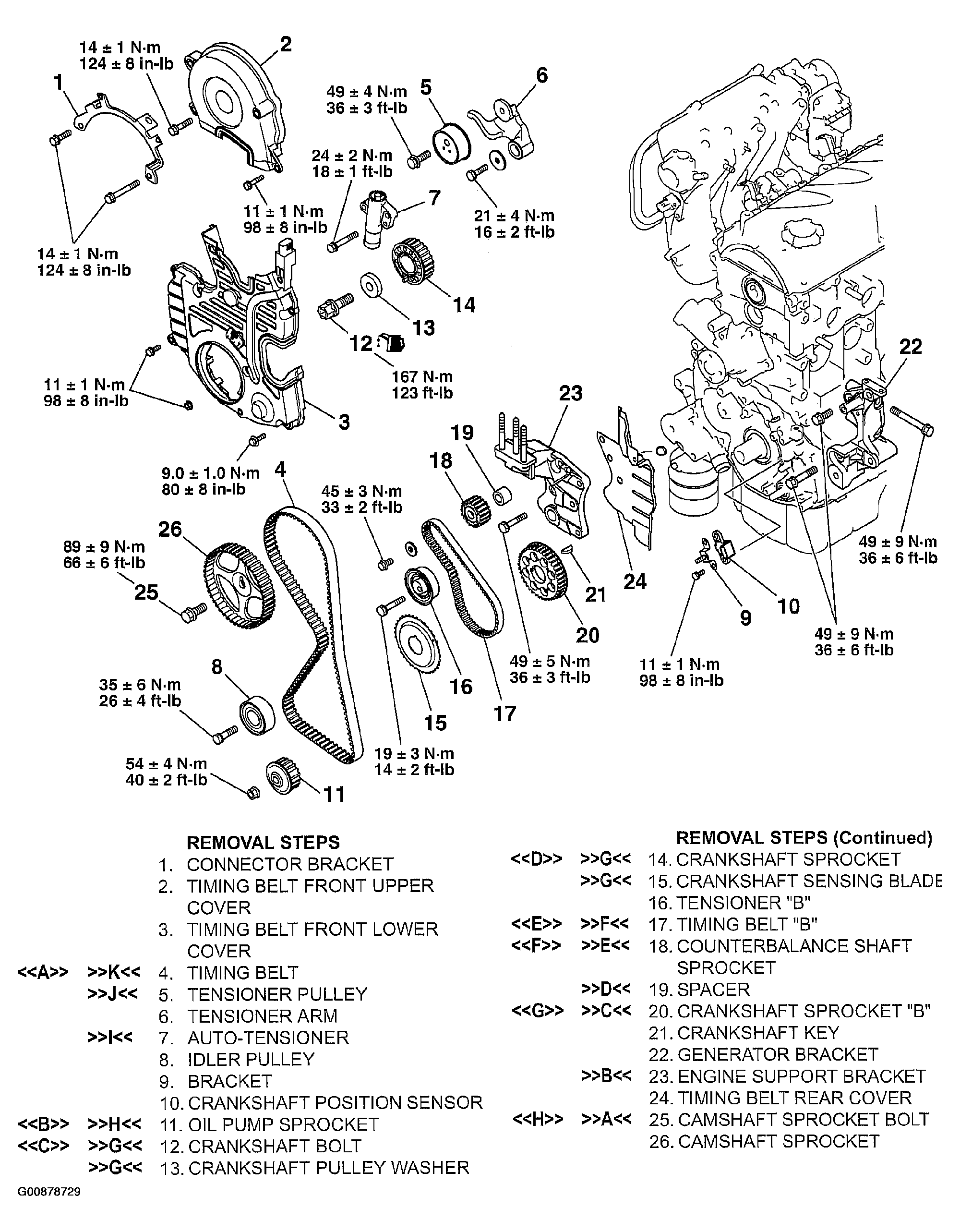

Fig 1: Identifying Removal Steps Of Timing Belt Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990767: End Yoke Holder
• MD998719: Pins
• MD998767: Tensioner Pulley Wrench
• MD998778: Crankshaft Sprocket Puller
• MD998781: Flywheel Stopper
• MD998785: Sprocket Stopper
