Vacuum Circuit Diagram
Vacuum Circuit Diagram

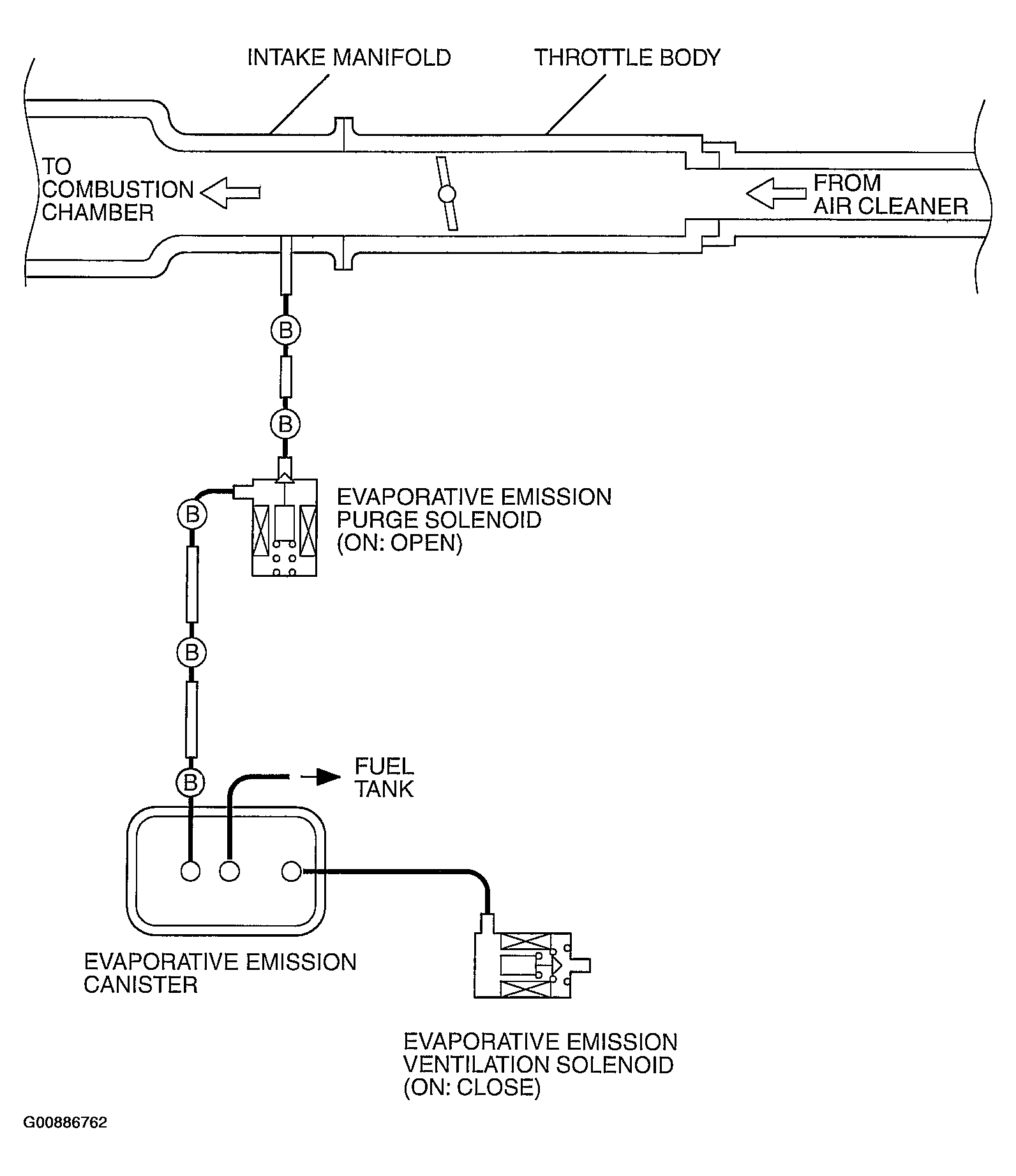

Fig 1: Vacuum Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
