Ignition Switch Continuity Check

Disconnect ignition switch connector C-303 without removing the ignition switch. Then check the continuity.

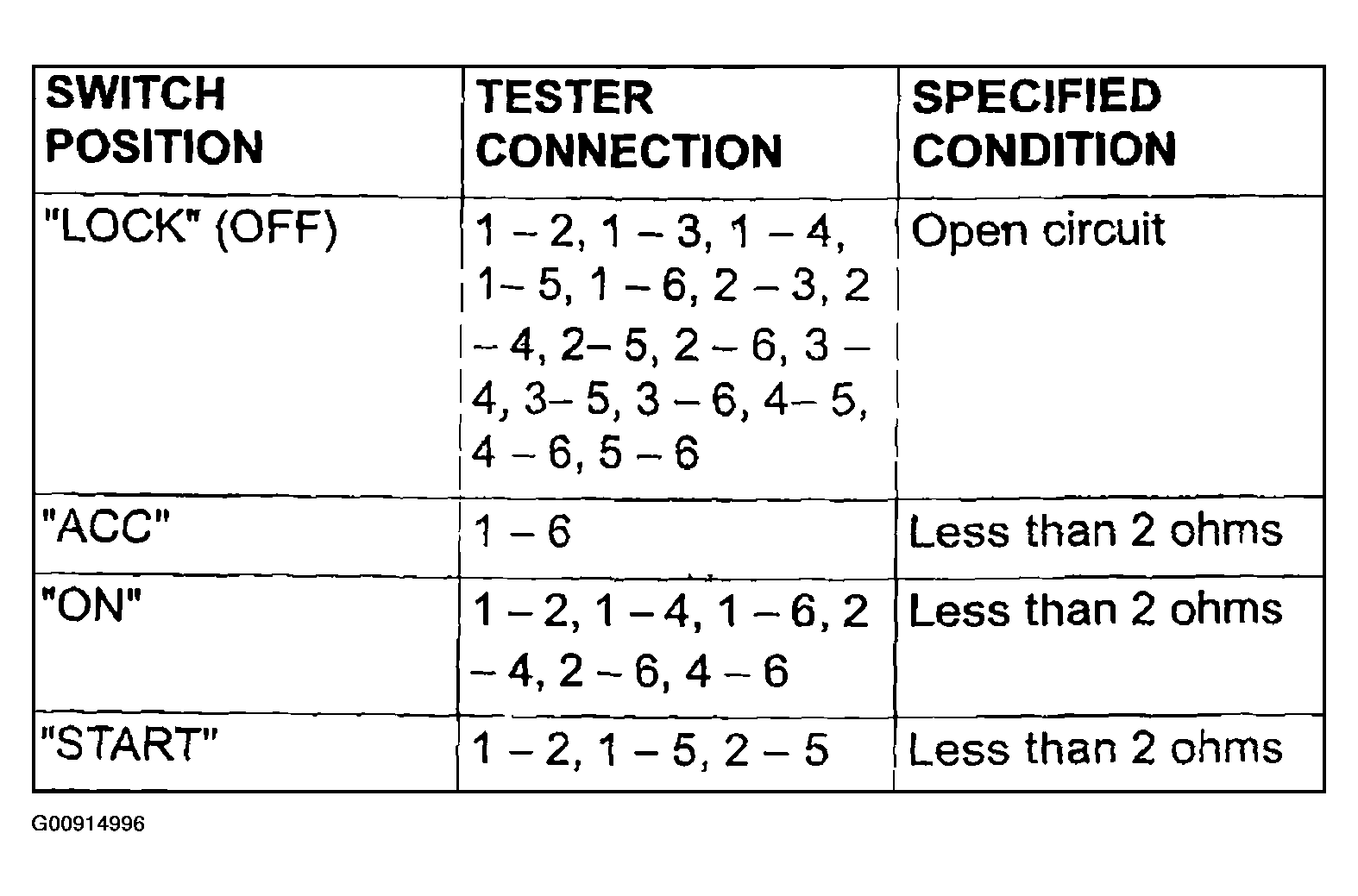

Fig 1: Checking Ignition Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

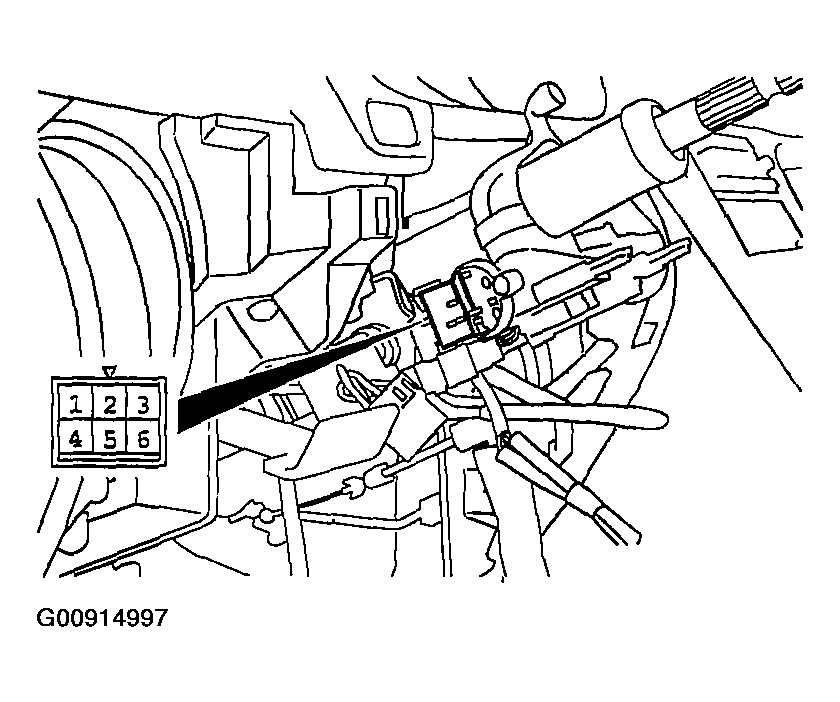

Fig 2: Disconnecting Ignition Switch Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
