General Description Concerning Power Windows: Notes

The following ECUs affect the functions and control of the power windows.

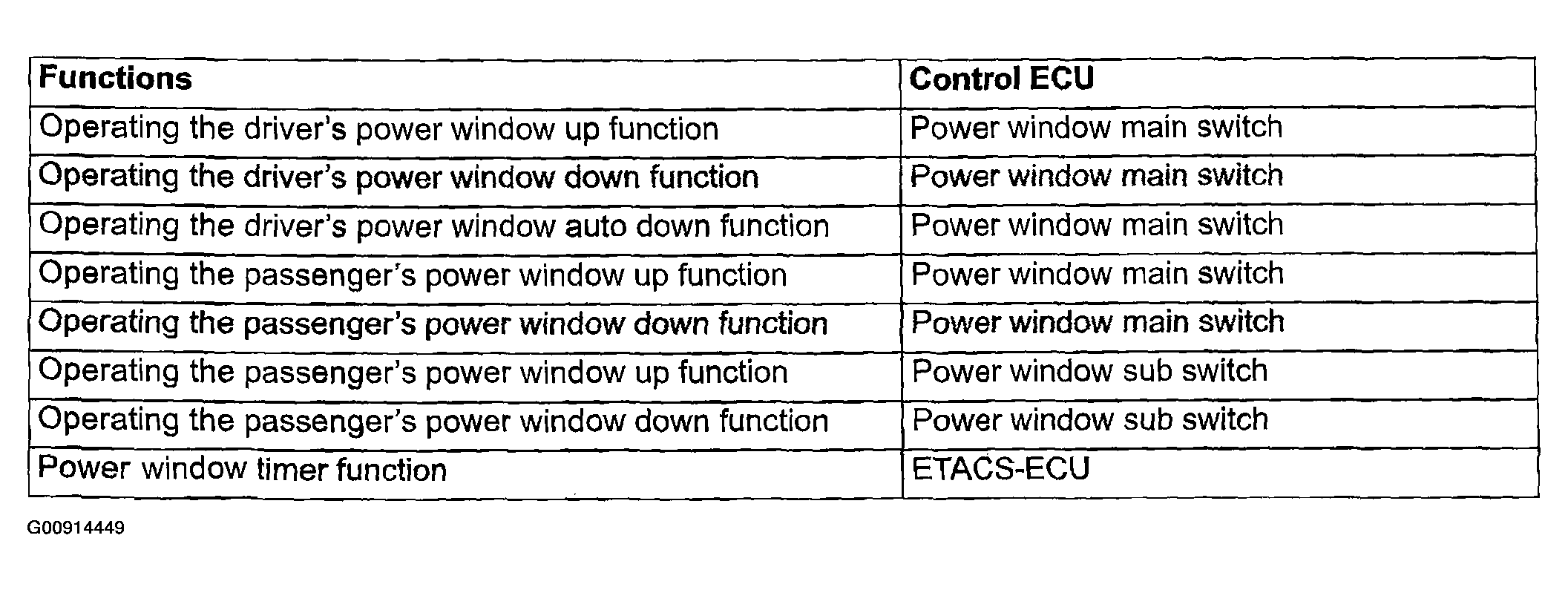

Fig 1: View Of ECUs Function Description Chart (Power Window)
G00914449Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

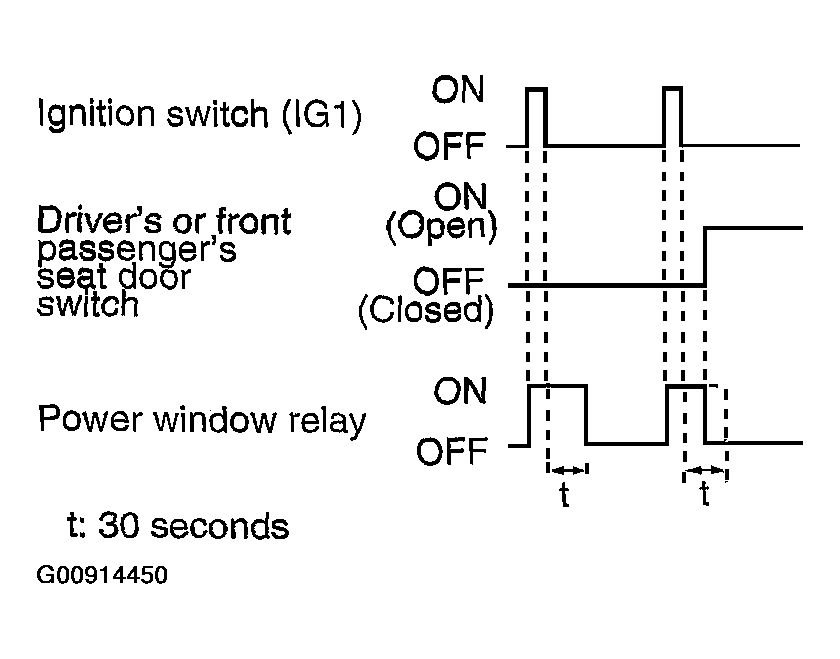

Fig 2: View Of Driver's Or Front Passenger's Seat Door Switch On-Off Operation Diagram
G00914450Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
