Adjusting Plate, Snap Ring And Spacers

Snap ring (For adjustment of underdrive clutch and overdrive clutch end play)

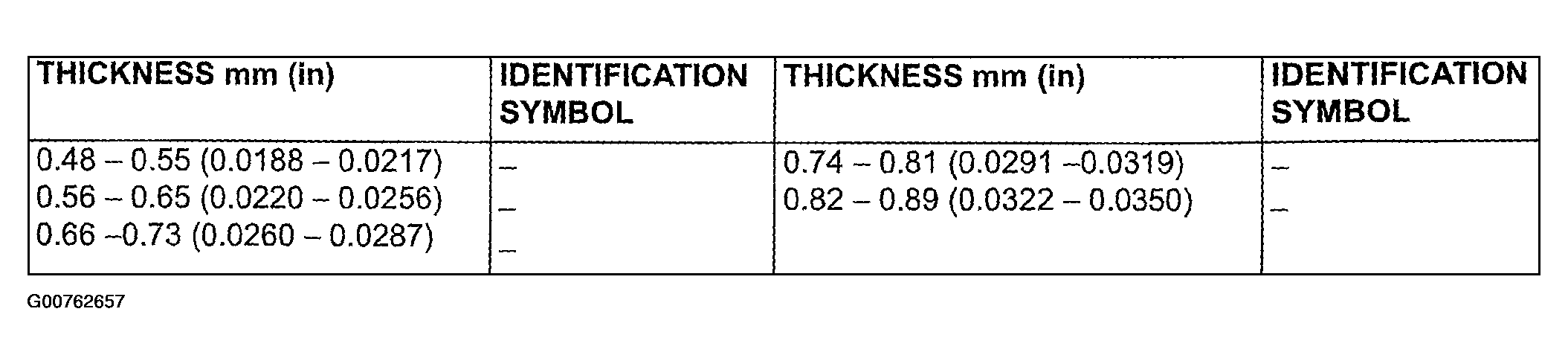

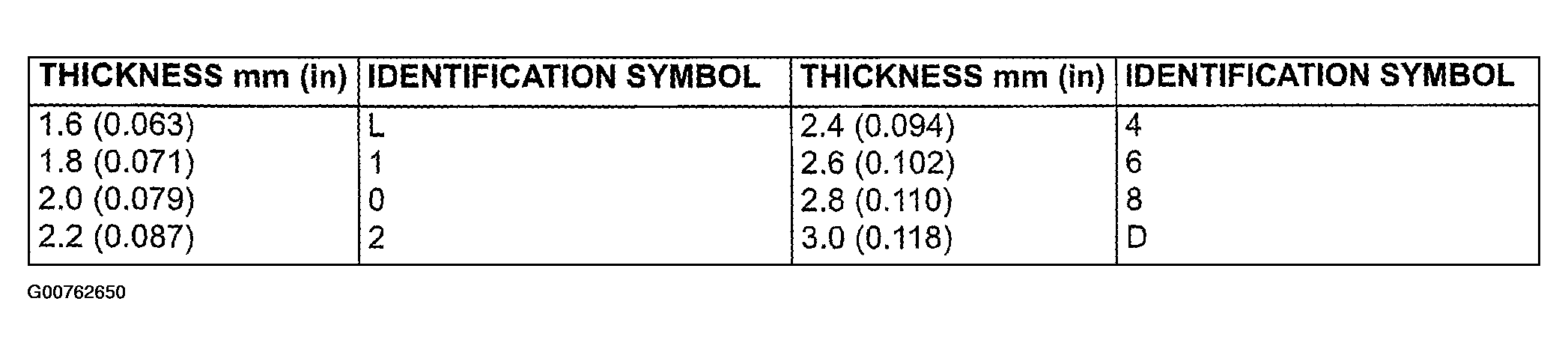

Fig 1: Snap Ring Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Snap ring (For adjustment of low-reverse brake and second brake reaction plates end play)

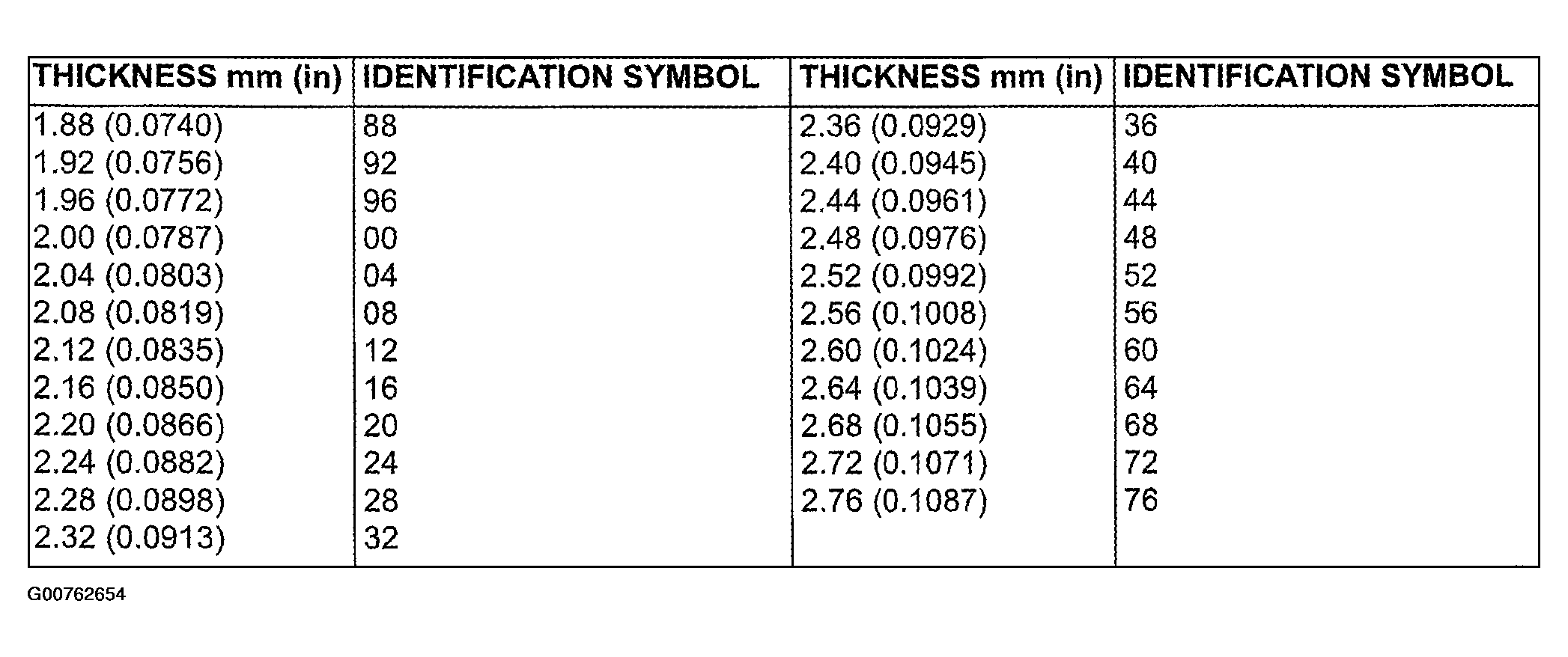

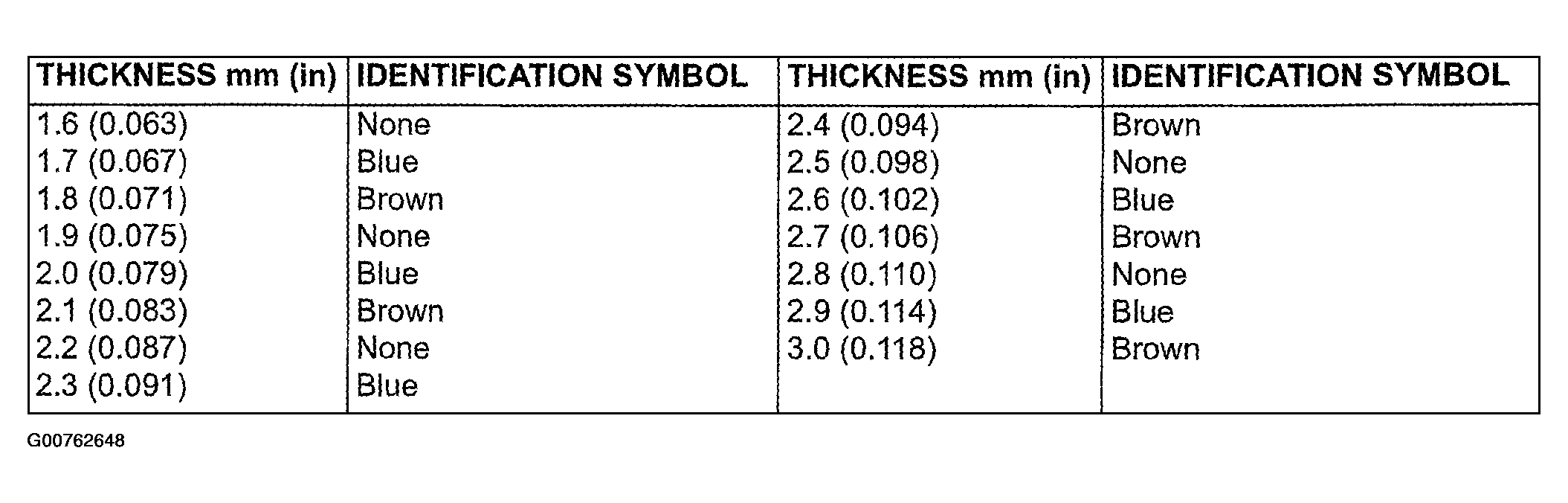

Fig 2: Snap Ring Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Pressure plate (For adjustment of low-reverse brake and second brake end play)

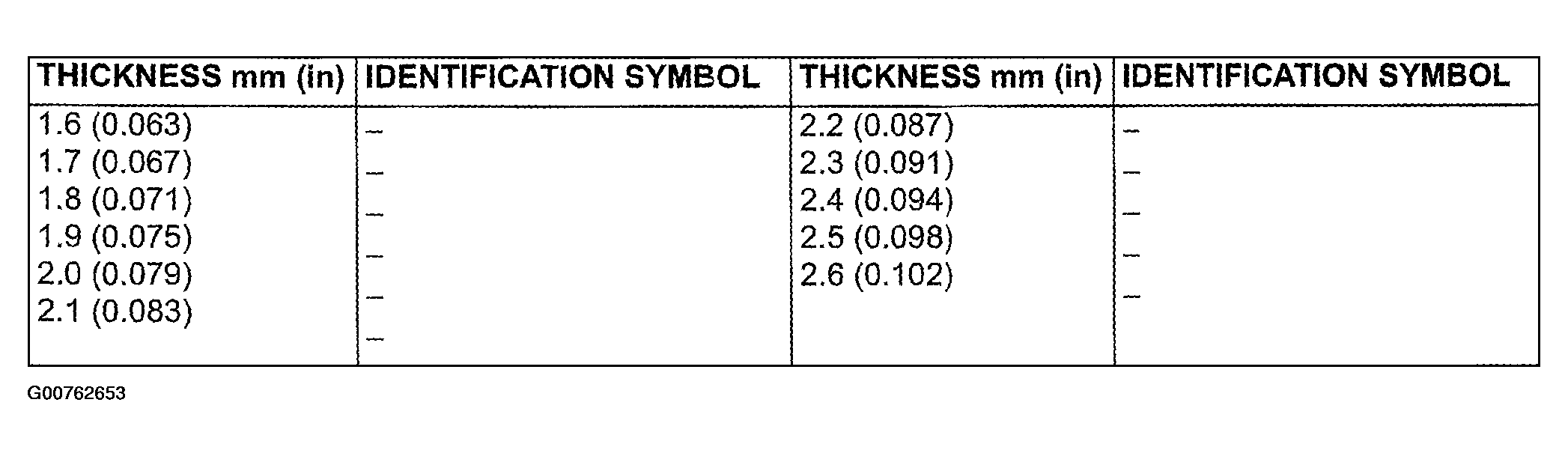

Fig 3: Pressure Plate Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Snap ring (For adjustment of reverse clutch end play)

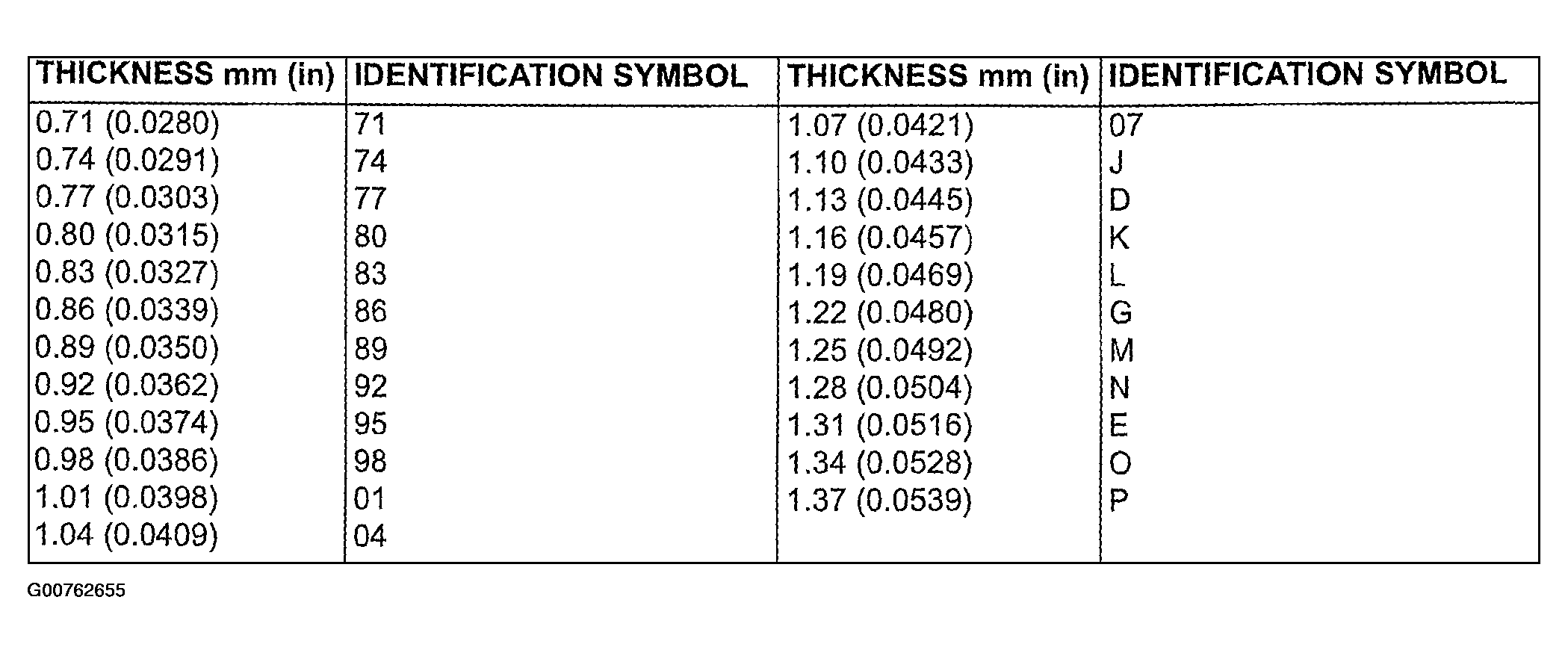

Fig 4: Snap Ring Reference Chart (For Adjustment Of Reverse Clutch End Play)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Snap ring (For adjustment of reverse clutch and overdrive clutch spring retainer end plays)

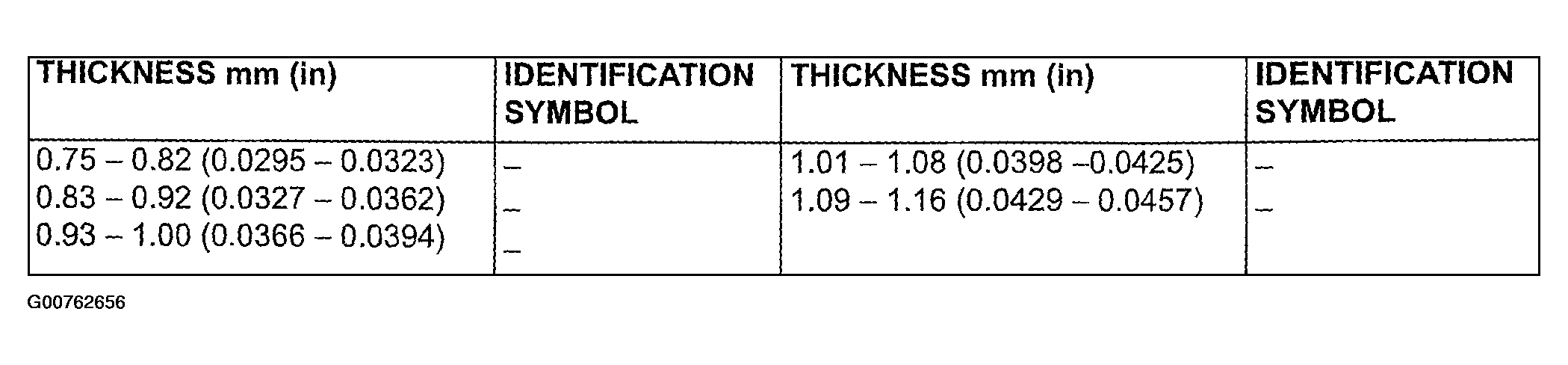

Fig 5: Snap Ring Reference Chart (For Adjustment Of Reverse And Overdrive Clutch Spring Retainer End Plays)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Thrust race (For adjustment of reverse clutch and overdrive clutch spring retainer end plays)

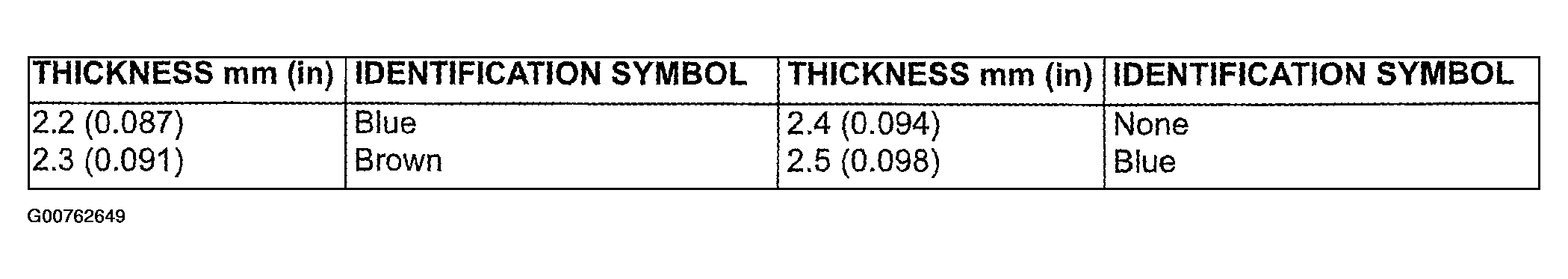

Fig 6: Thrust Race Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Spacer (For adjustment of output shaft preload)

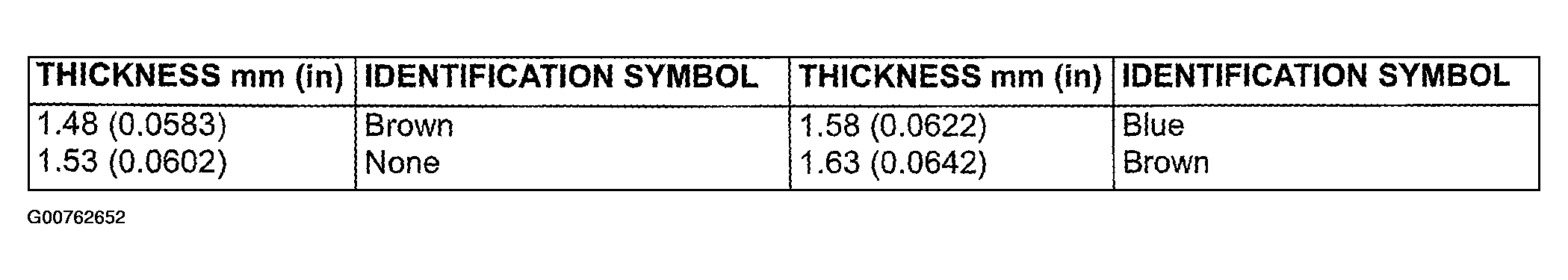

Fig 7: Spacer Reference Chart (For Adjustment Of Output Shaft Preload)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Spacer (For adjustment of differential case preload)

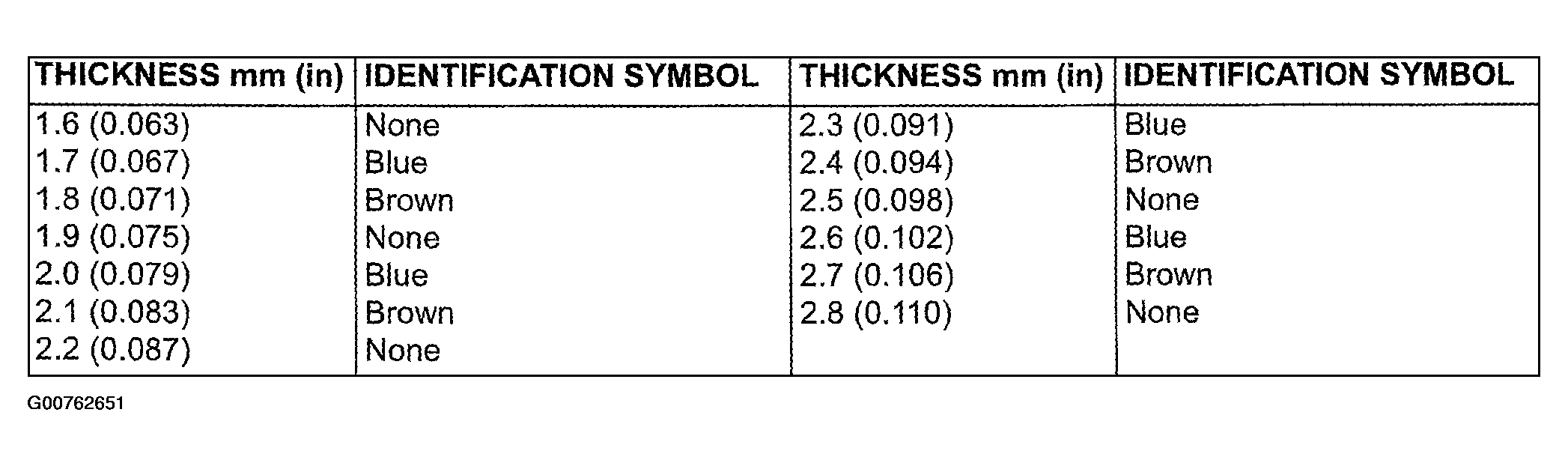

Fig 8: Spacer Reference Chart (For Adjustment Of Differential Case Preload)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Spacer (For adjustment of backlash between differential side gear and pinion < F4A4B >)

Fig 9: Spacer Reference Chart (For Adjustment Of Backlash Between Differential Side Gear And Pinion

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Spacer (For adjustment of backlash between differential side gear and pinion) < W4A4B >

Fig 10: Spacer Reference Chart (For Adjustment Of Backlash Between Differential Side Gear And Pinion)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
