Combination Meter Assembly & Vehicle Speed Sensor
>>
Combination Meter Assembly And Vehicle Speed Sensor
>>
Removal And Installation
Removal And Installation

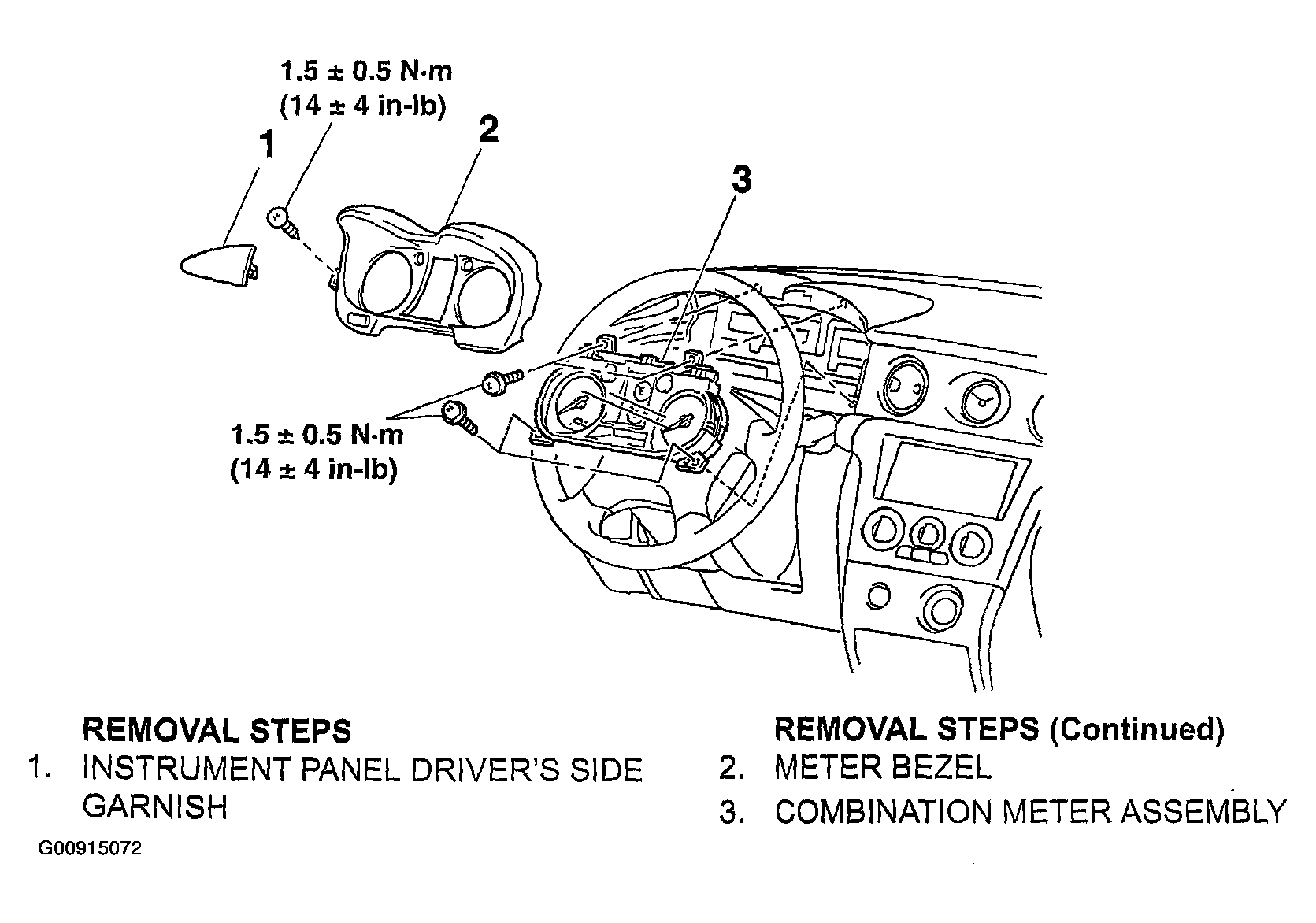

Fig 1: Combination Meter Assembly And Vehicle Speed Sensor Removal And Installation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
