Special Tools

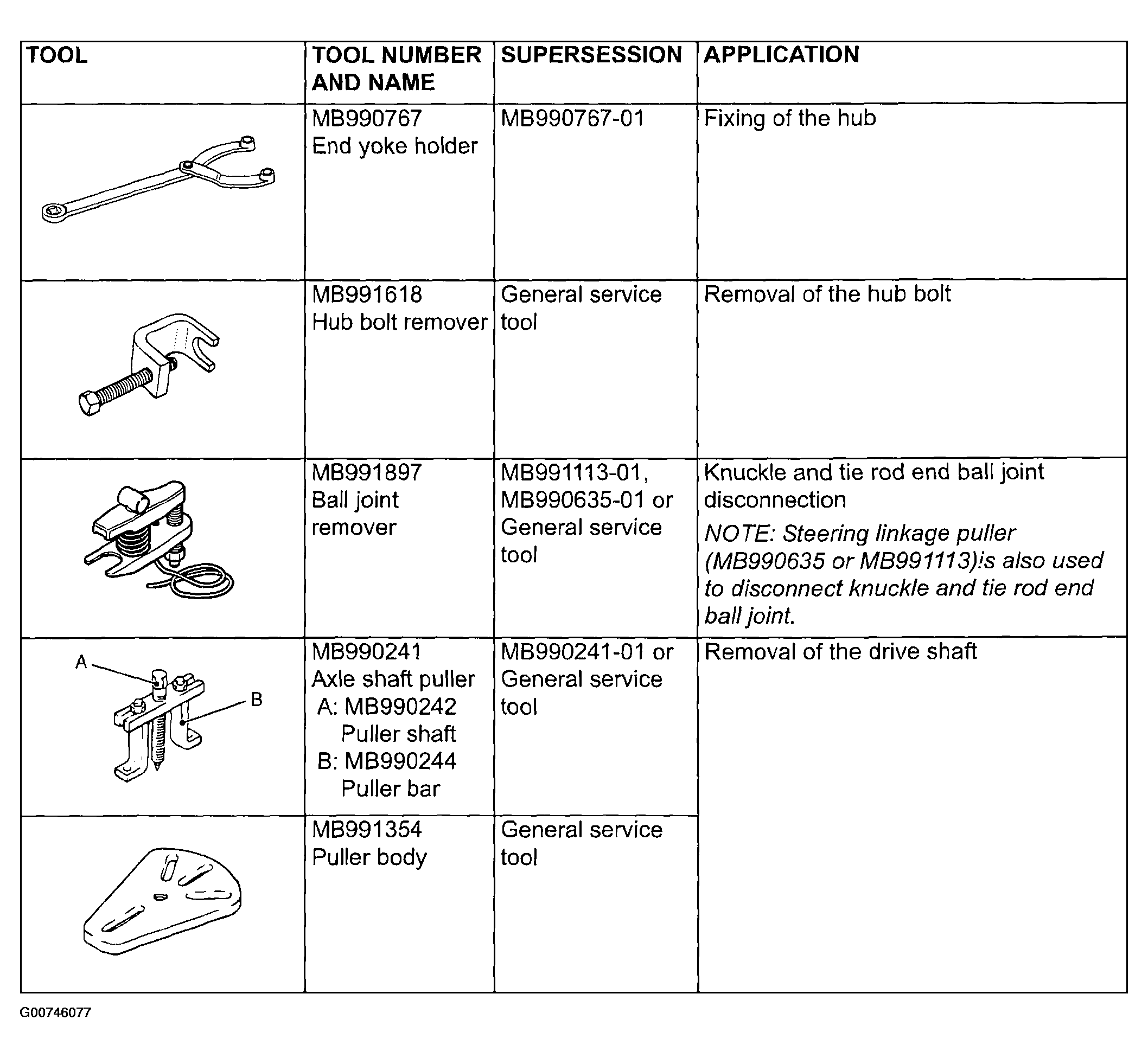

Fig 1: Special Tools Description Chart (1 Of 3)
G00746077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

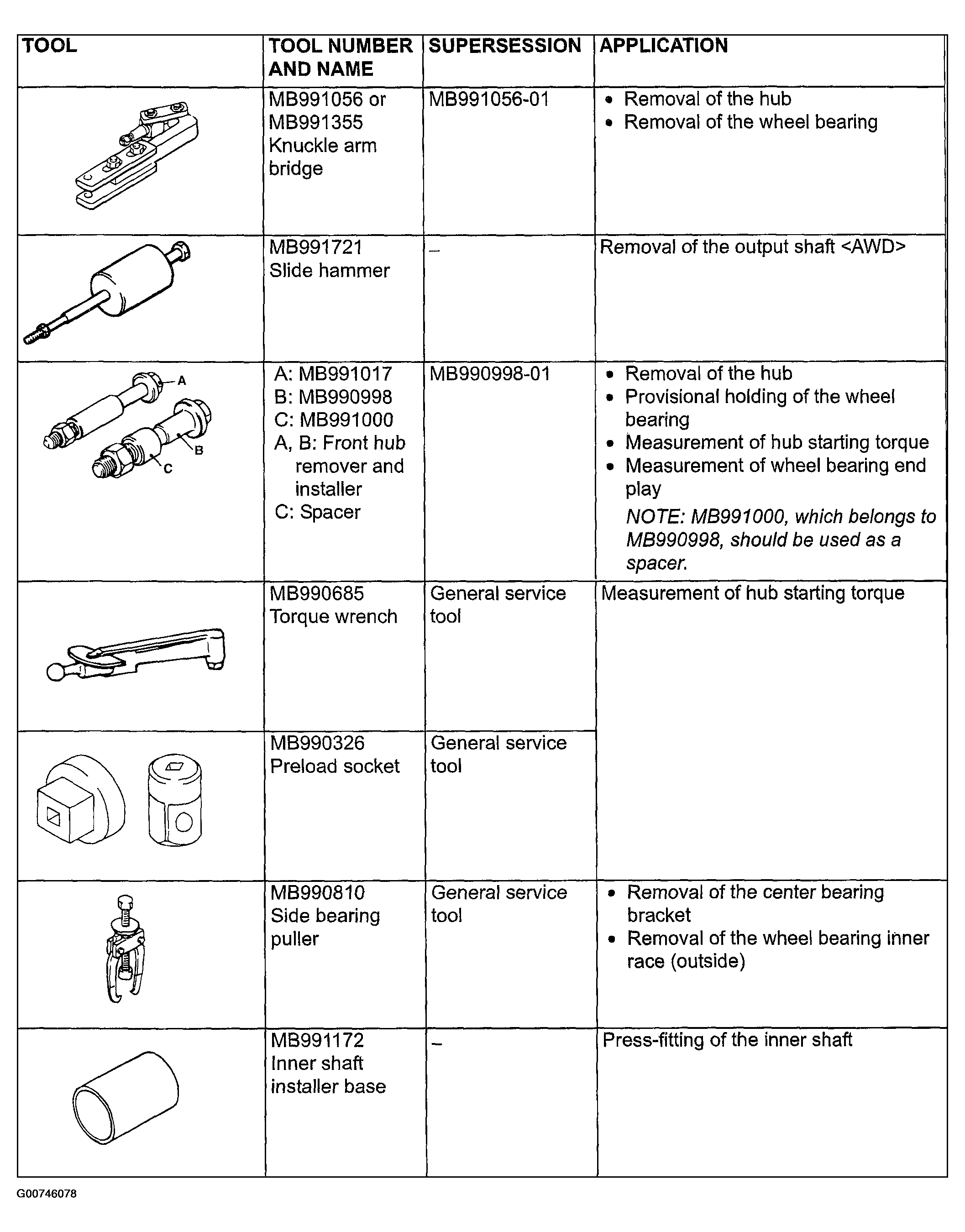

Fig 2: Special Tools Description Chart (2 Of 3)
G00746078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

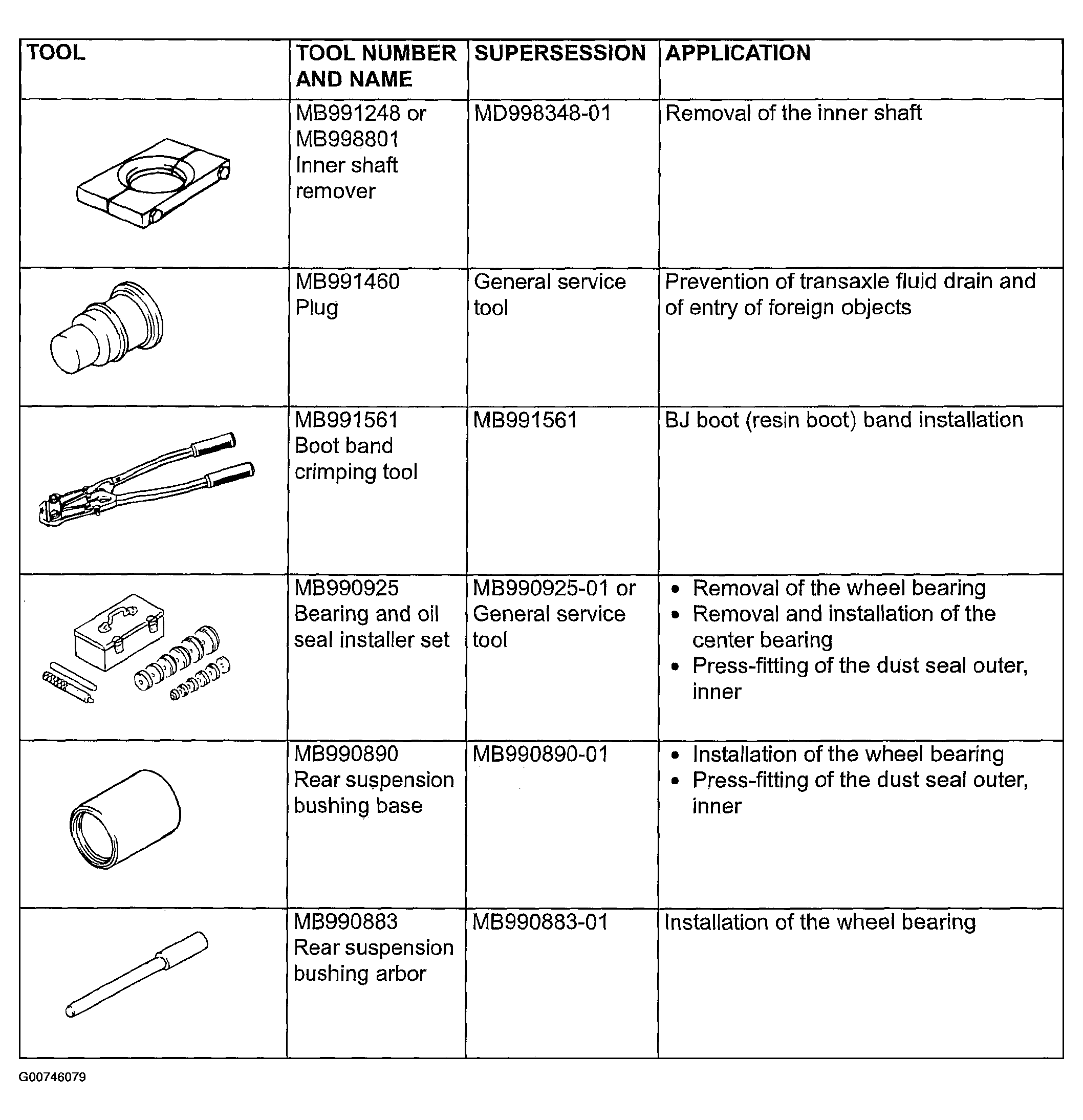

Fig 3: Special Tools Description Chart (3 Of 3)
G00746079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

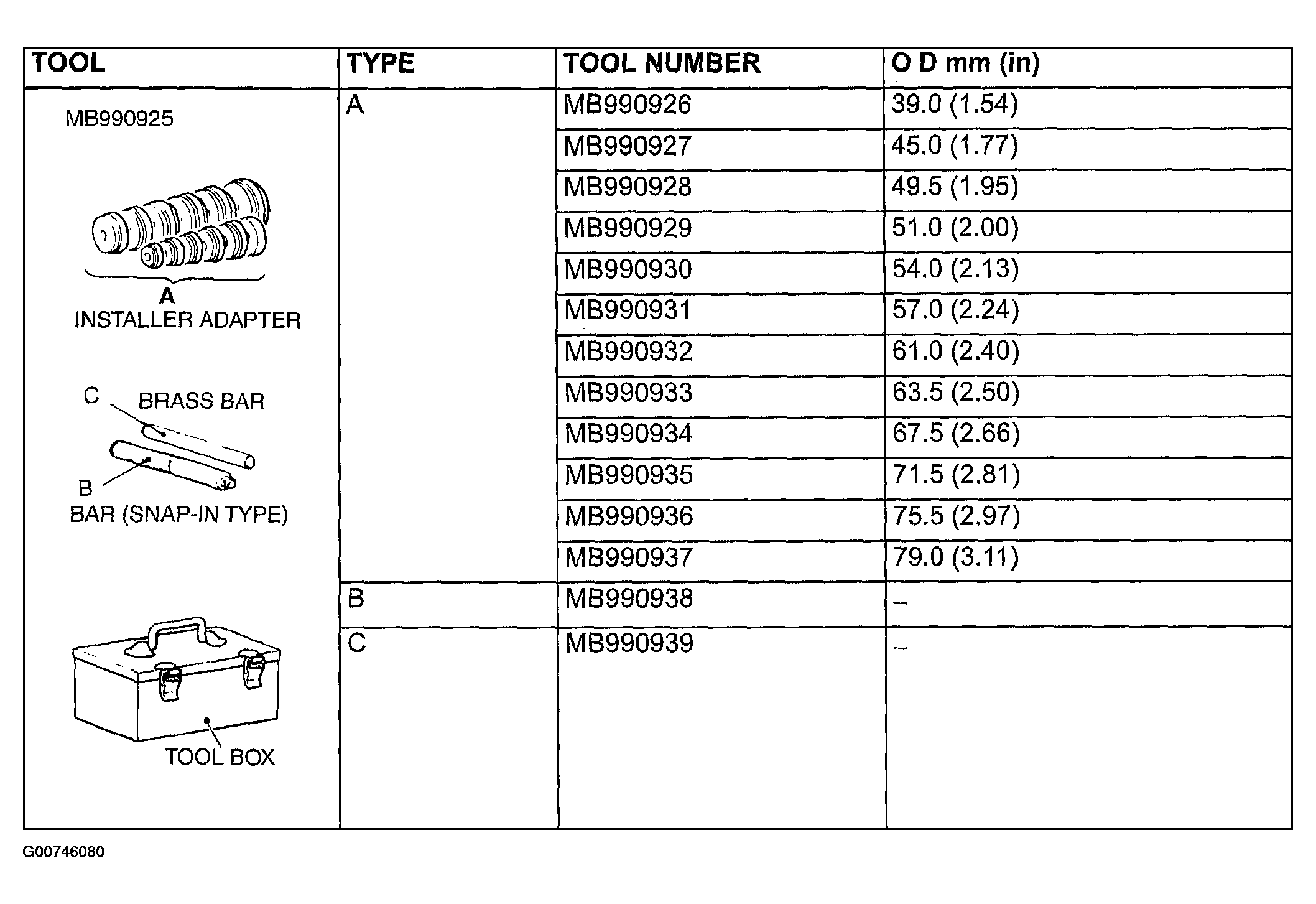

Fig 4: Special Tools Specification Chart
G00746080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
