DTC 33 : Stoplight Switch System: Notes

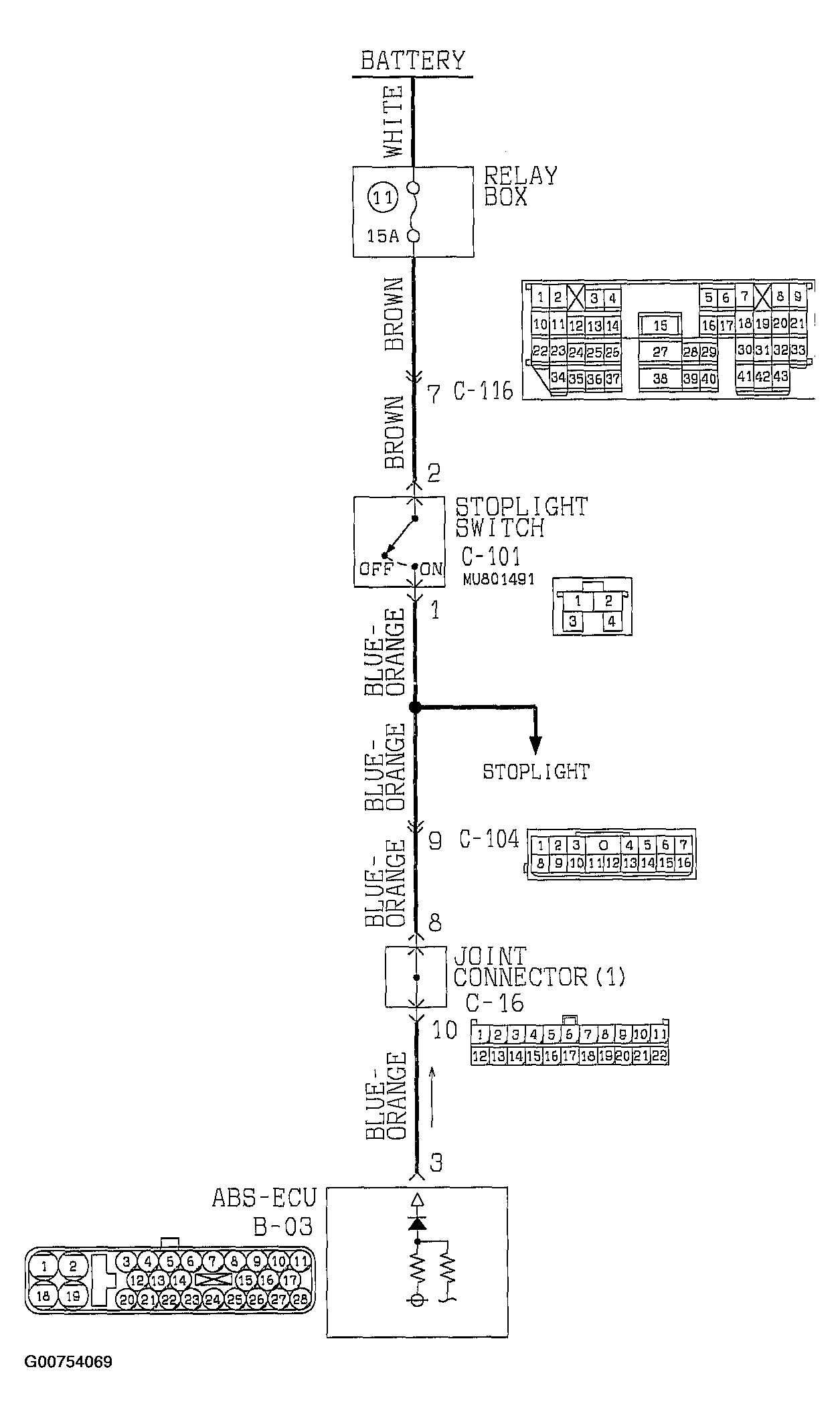

Fig 1: Identifying Stoplight Switch Circuit Diagram
G00754069Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

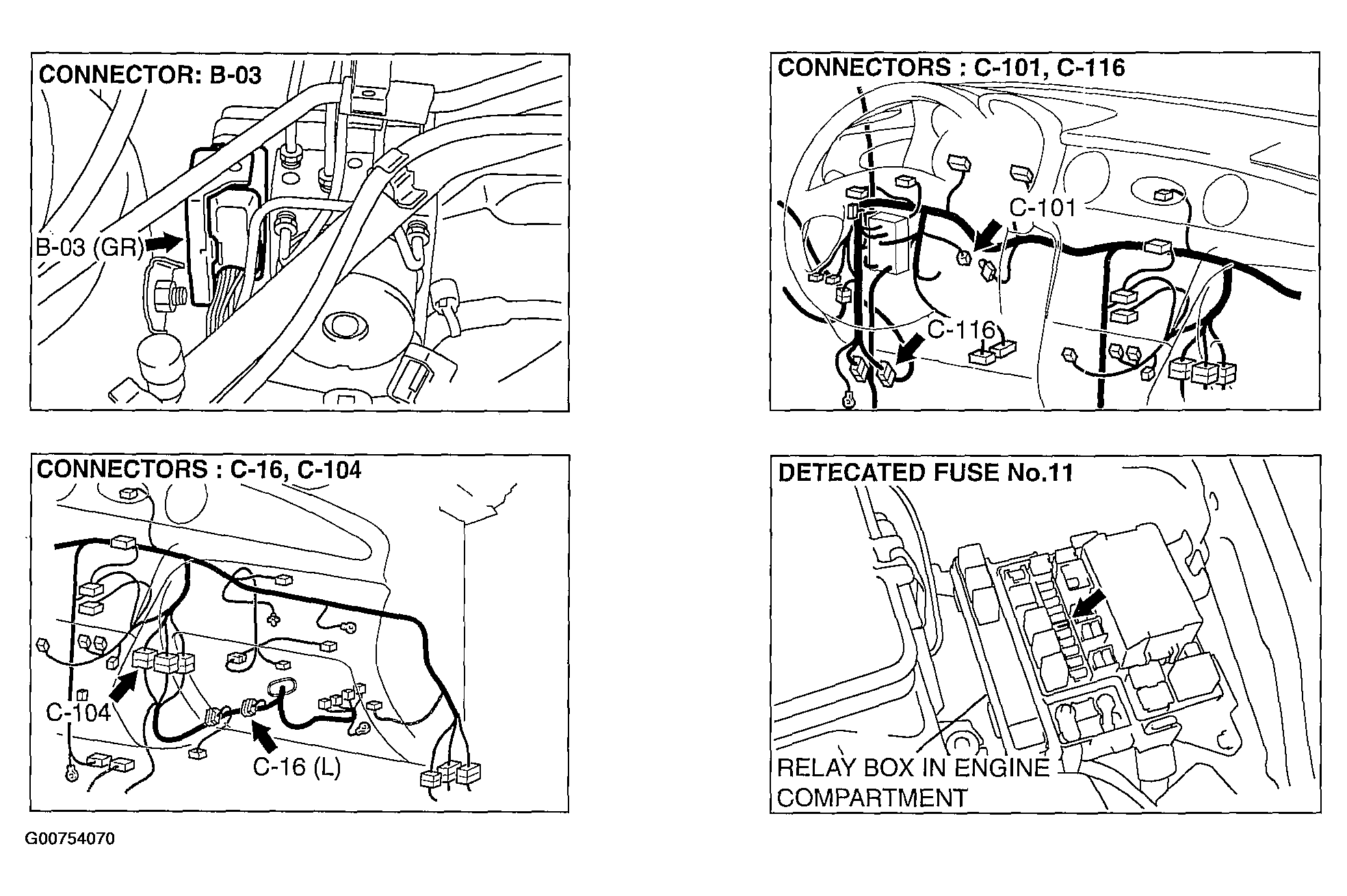

Fig 2: Identifying Connectors: B-03, C-101, C-116, C-16, C-104 & Dedicated Fuse No. 11
G00754070Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
