W4A4B < Downshift Pattern >

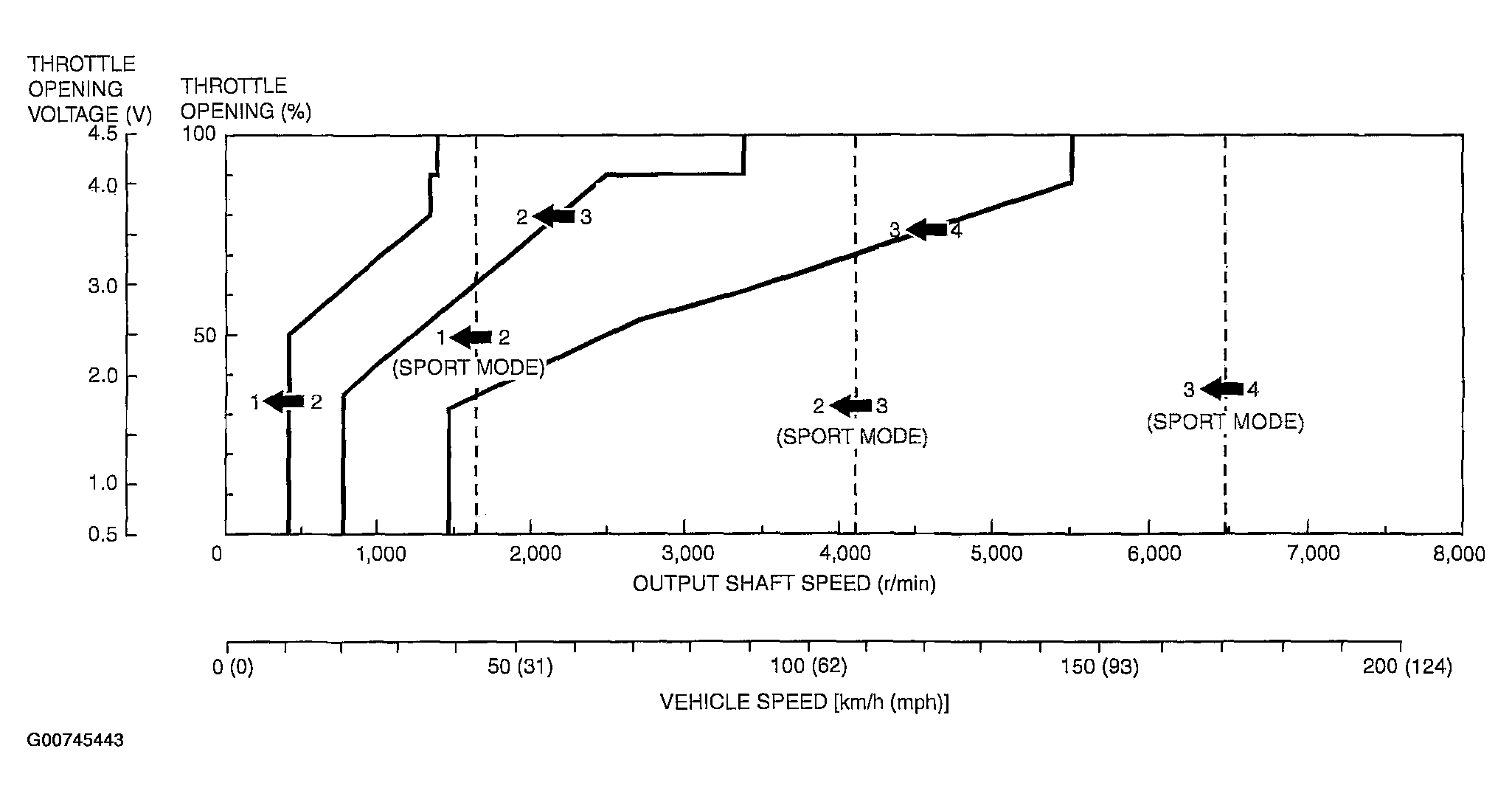

Fig 1: Identifying Downshift Pattern Graph
G00745443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
