Inspection Procedure Using An Oscilloscope: Notes

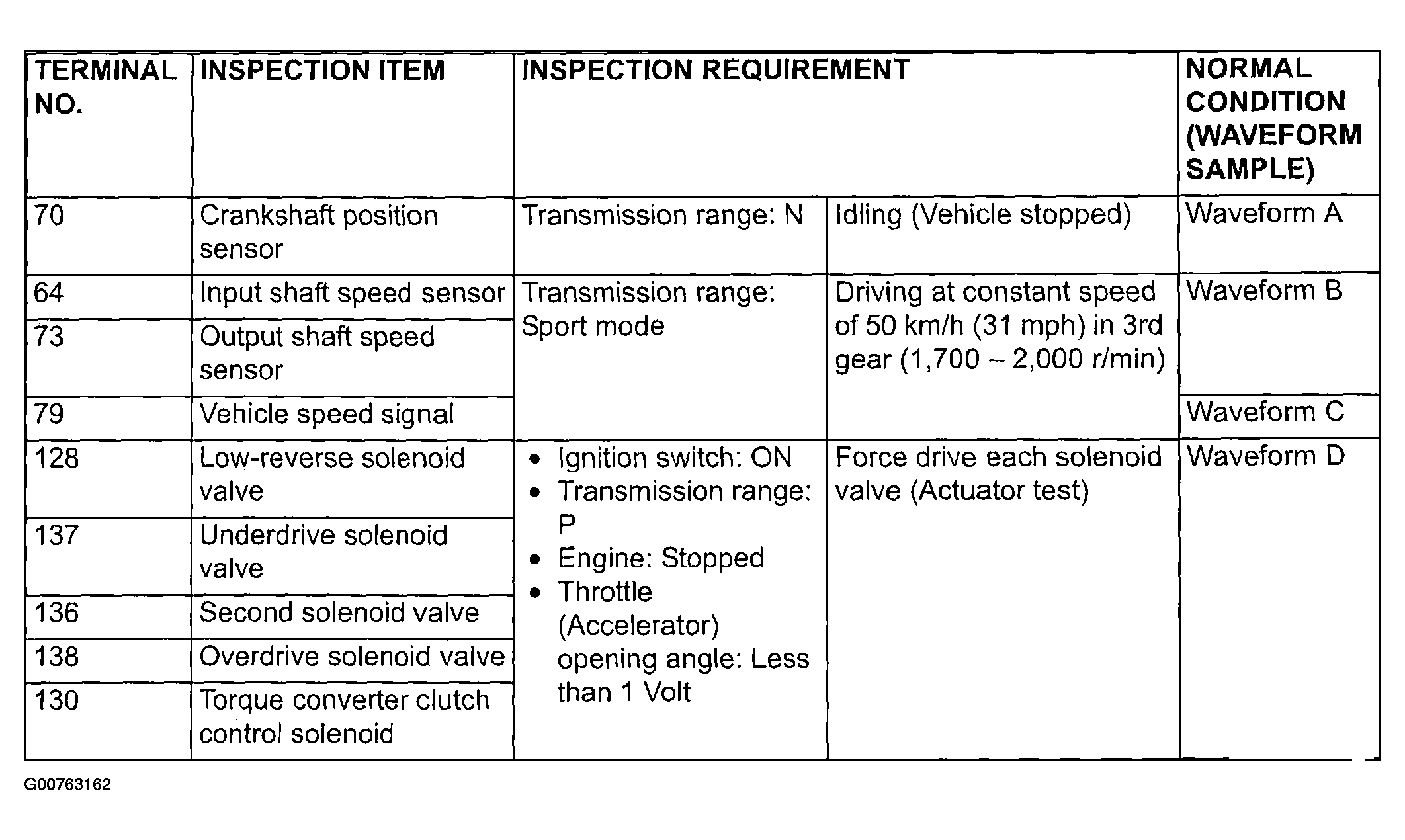

Fig 1: PCM Terminal INSPECTION PROCEDURE Chart (Using An Oscilloscope)

G00763162

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
