LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2004
>>
Outlander LS, AWD
>>
Repair and Diagnosis
>>
Steering
>>
Steering Column
>>
Steering Gear Shaft Assembly
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes

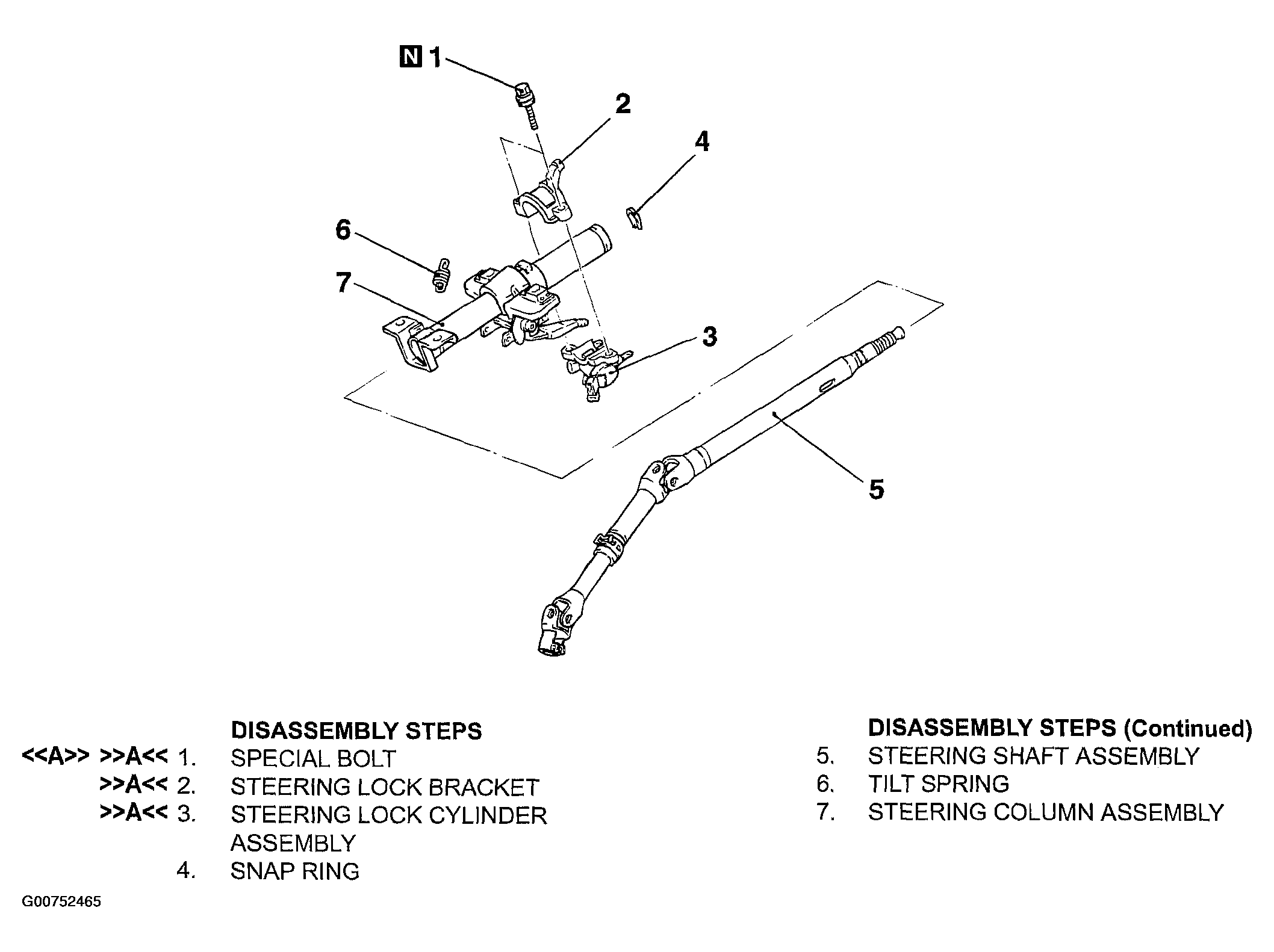

Fig 1: Disassembly And Assembly - Steering Gear Shaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
