Disassembly And Assembly: Notes

CAUTION: Never disassemble the terminal assembly. It cannot be reassembled.

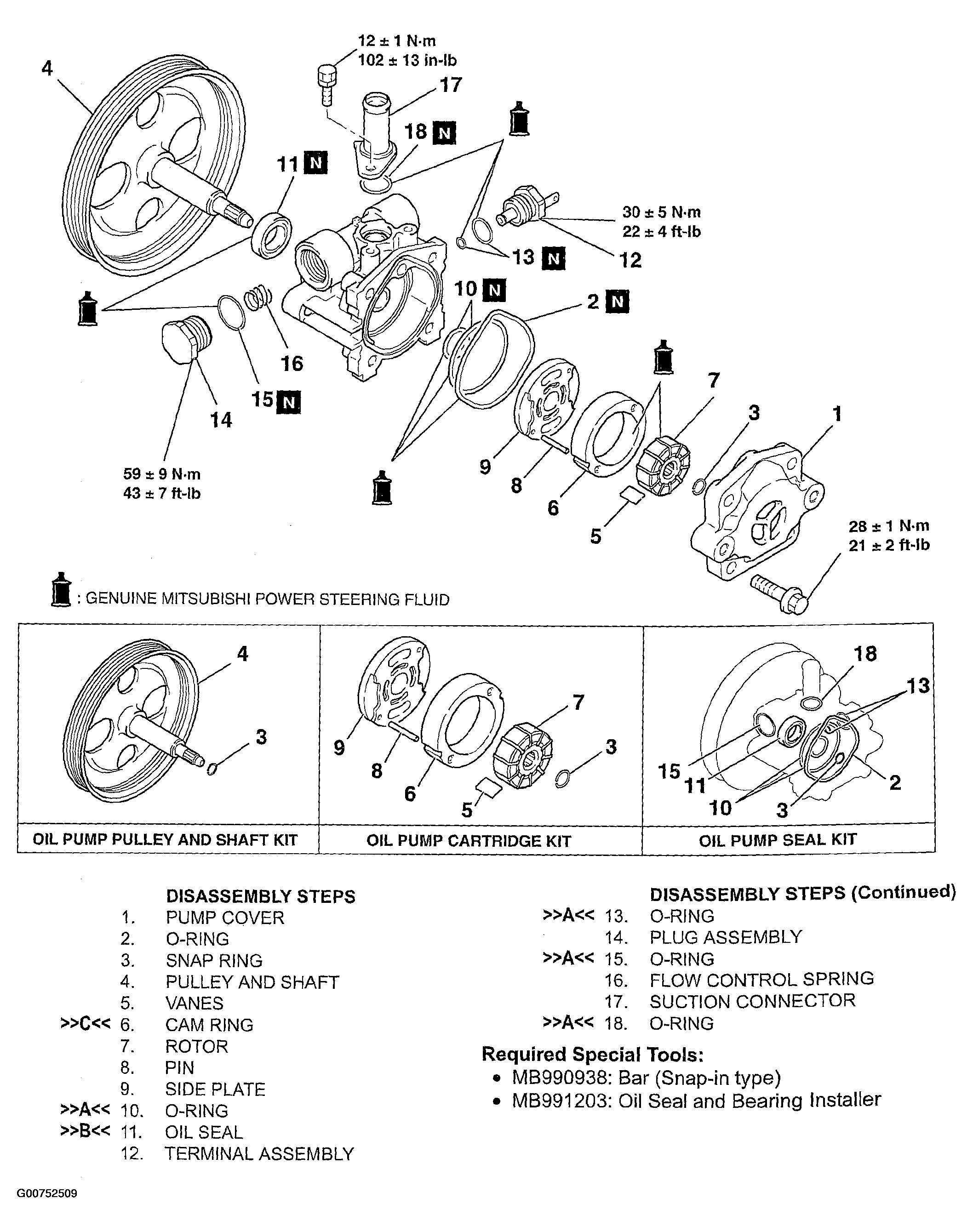

Fig 1: Disassembly And Assembly - Power Steering Oil Pump Assembly
G00752509Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
