Home >> Mitsubishi >> 2004 >> Outlander LS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Overhaul >> Generator And Ignition System >> Removal And Installation >> Notes

Removal And Installation: Notes

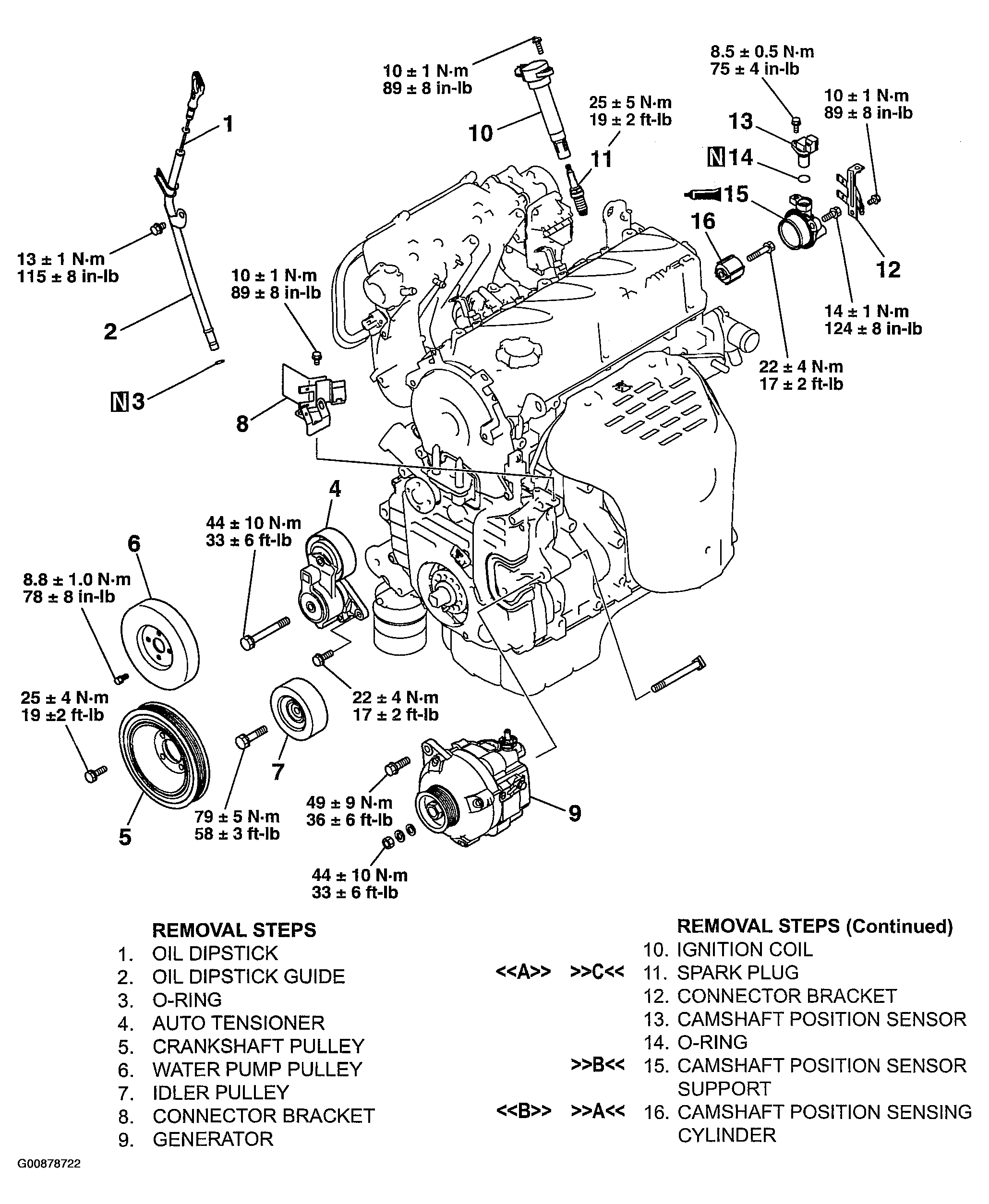

Fig 1: Removal Of Generator And Ignition System Components
G00878722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
