Home >> Mitsubishi >> 2004 >> Outlander LS, AWD >> Repair and Diagnosis >> Engine Mechanical >> Intake & Exhaust >> Intake Manifold >> Removal And Installation >> Notes

Removal And Installation: Notes

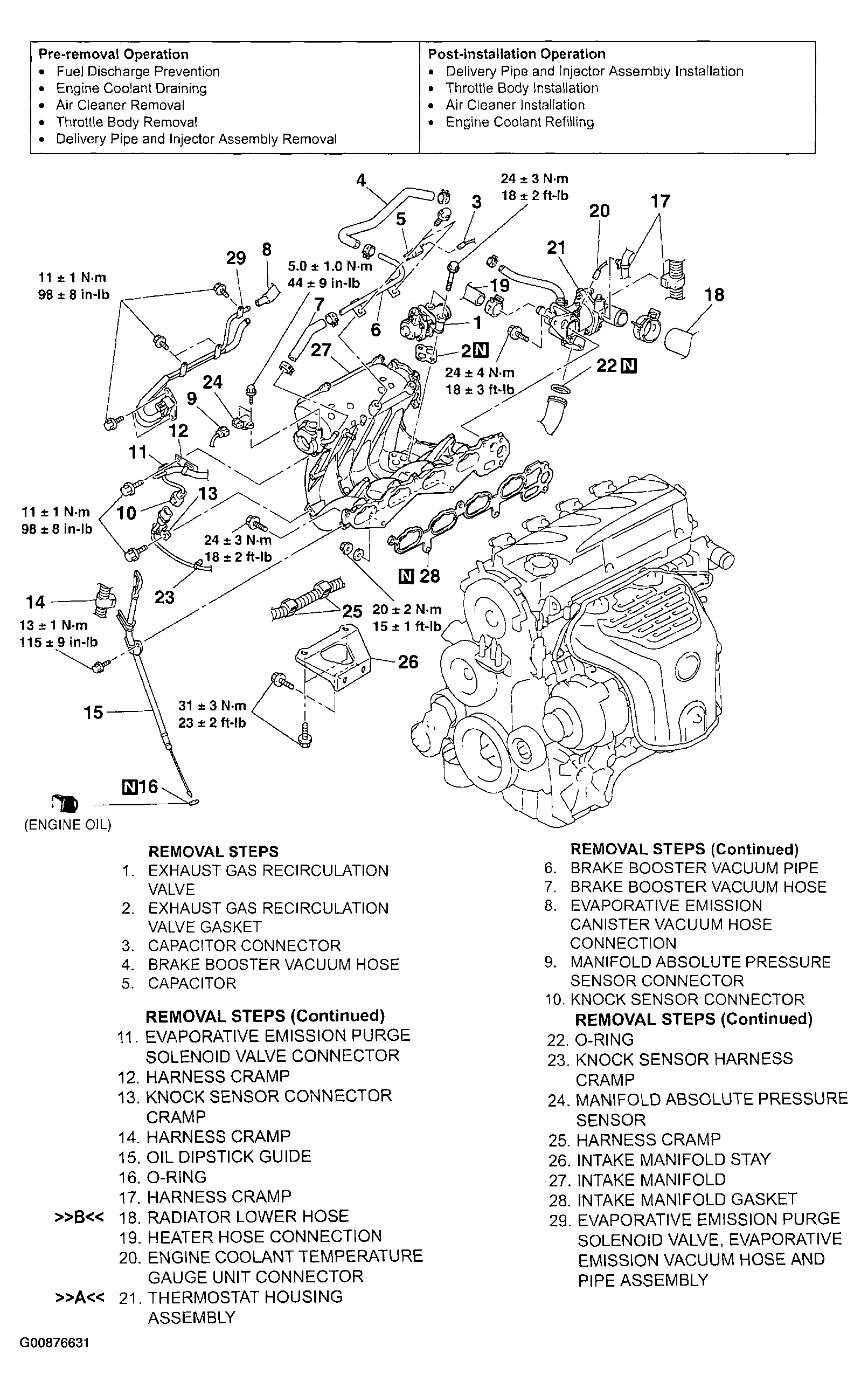

Fig 1: Exploded View Of Intake Manifold Components

G00876631

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
