Horn Relay Continuity Check

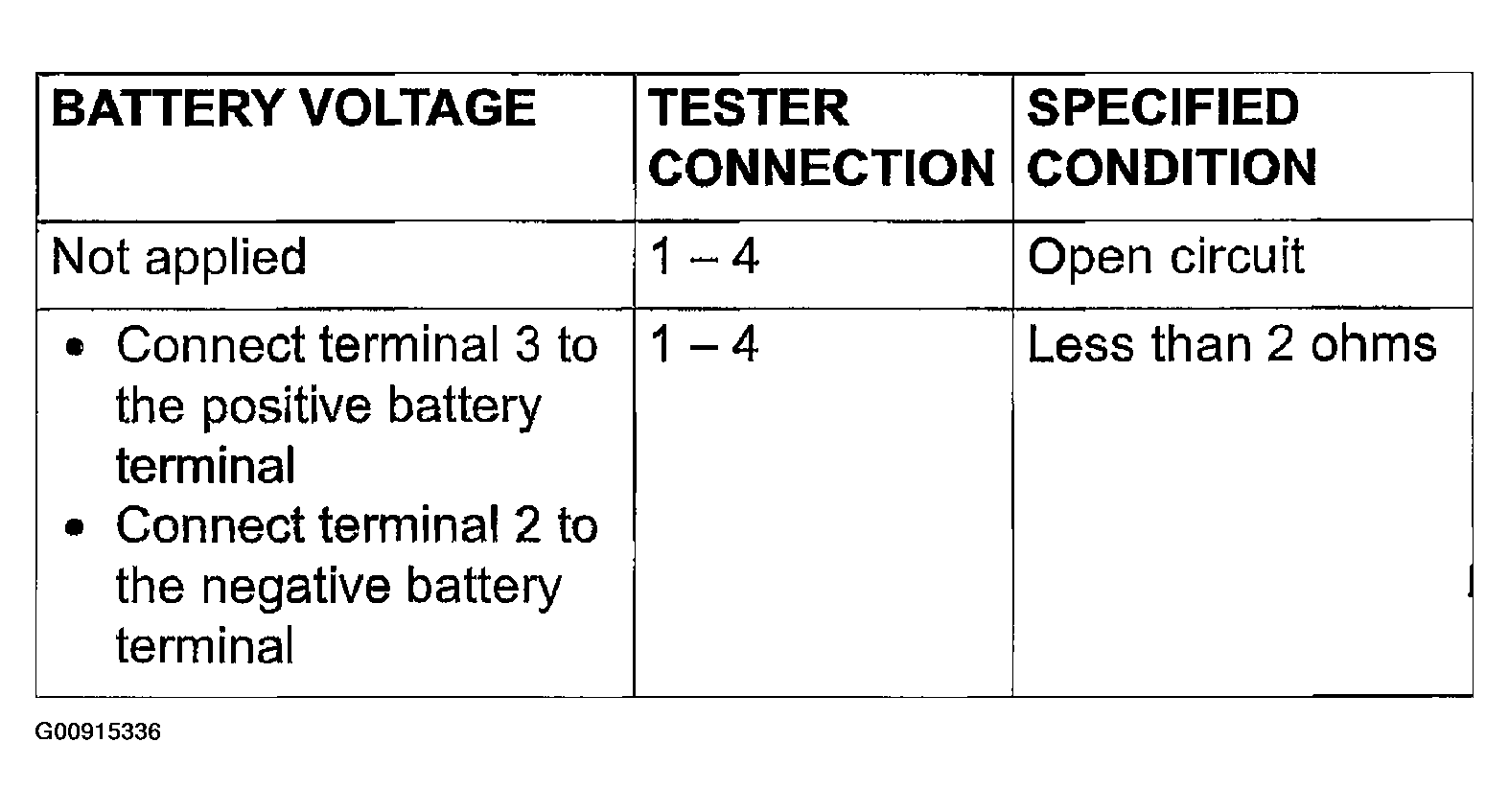

Fig 1: Checking Horn Relay Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

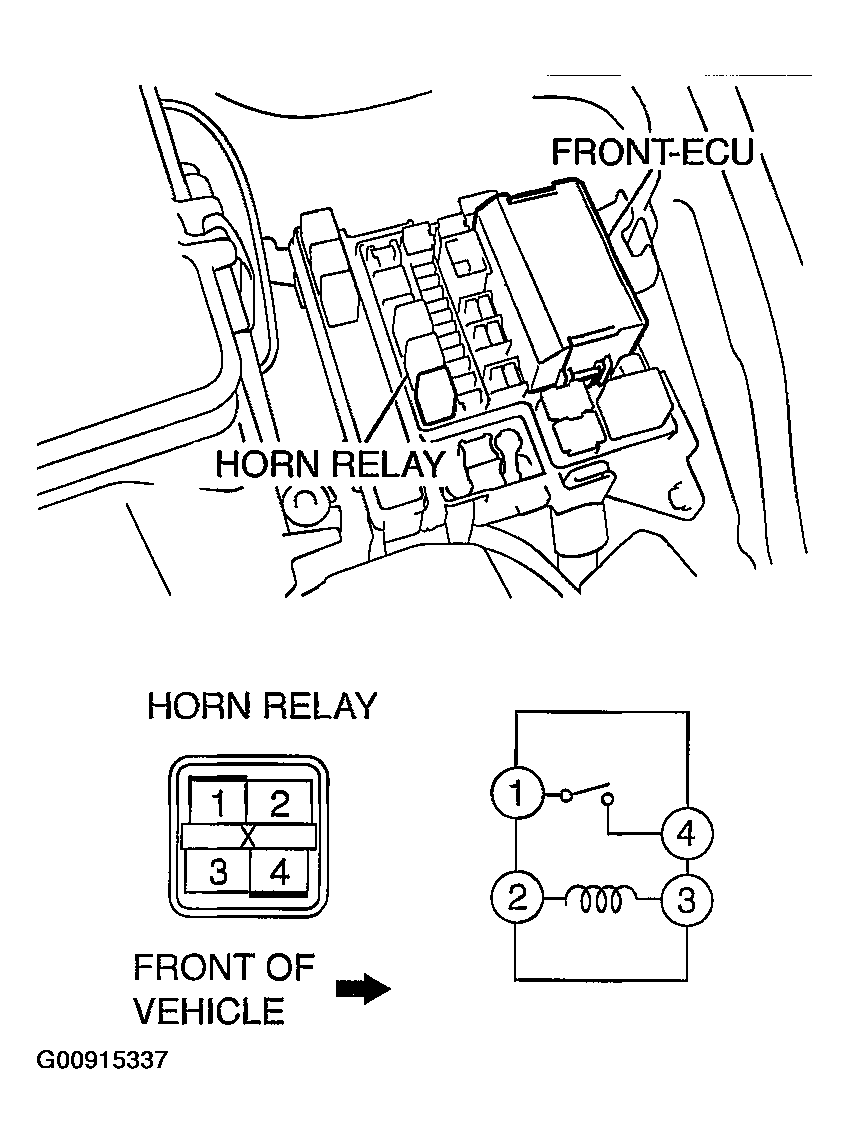

Fig 2: Identifying Horn Relay Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
