Removal & Installation: Generator
For generator removal and installation procedures, see
Fig 1
.

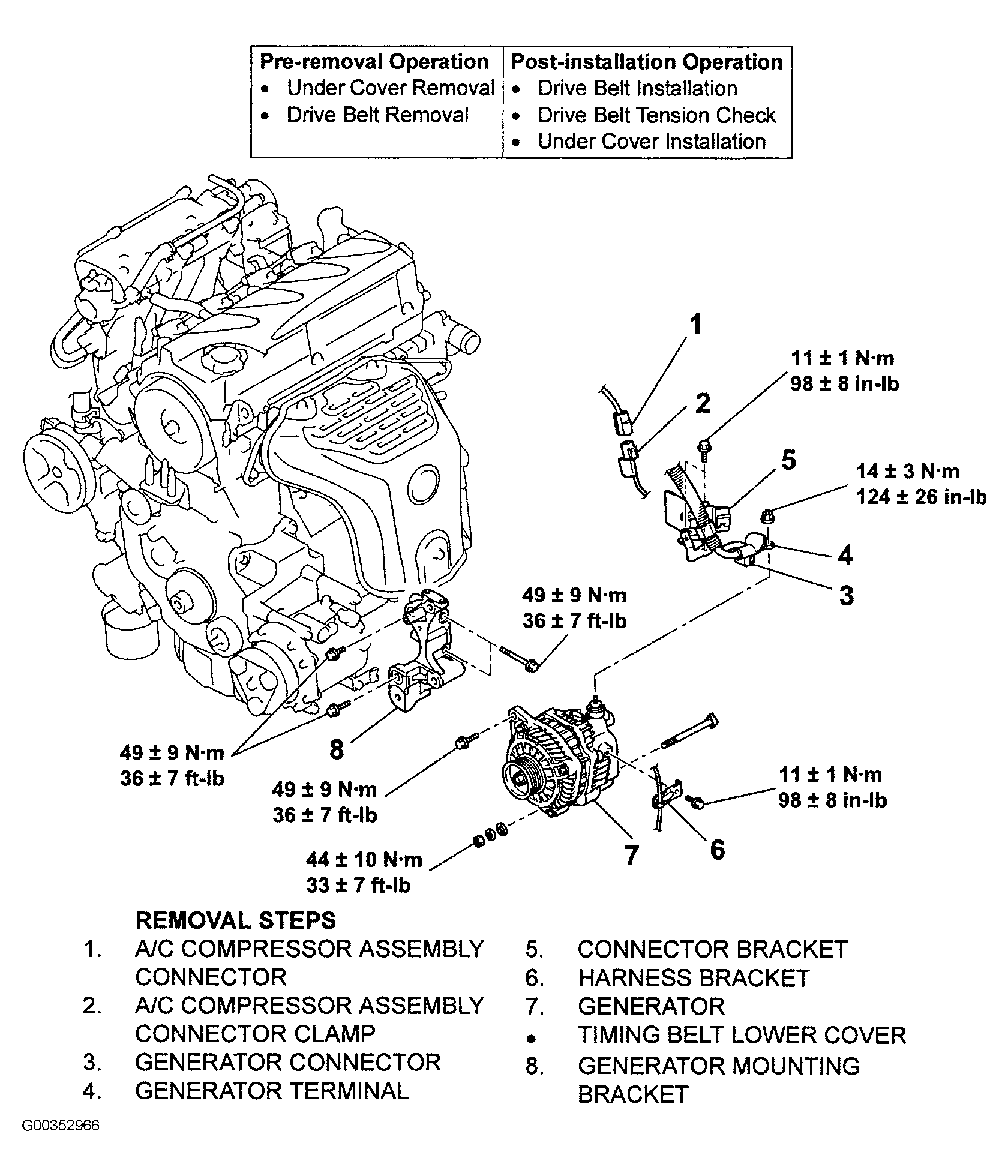

Fig 1: Removing & Installing Generator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
