Home >> Mitsubishi >> 2004 >> Outlander LS, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Braking System (Abs) >> Wheel Speed Sensor >> Removal And Installation >> Notes

Removal And Installation: Notes

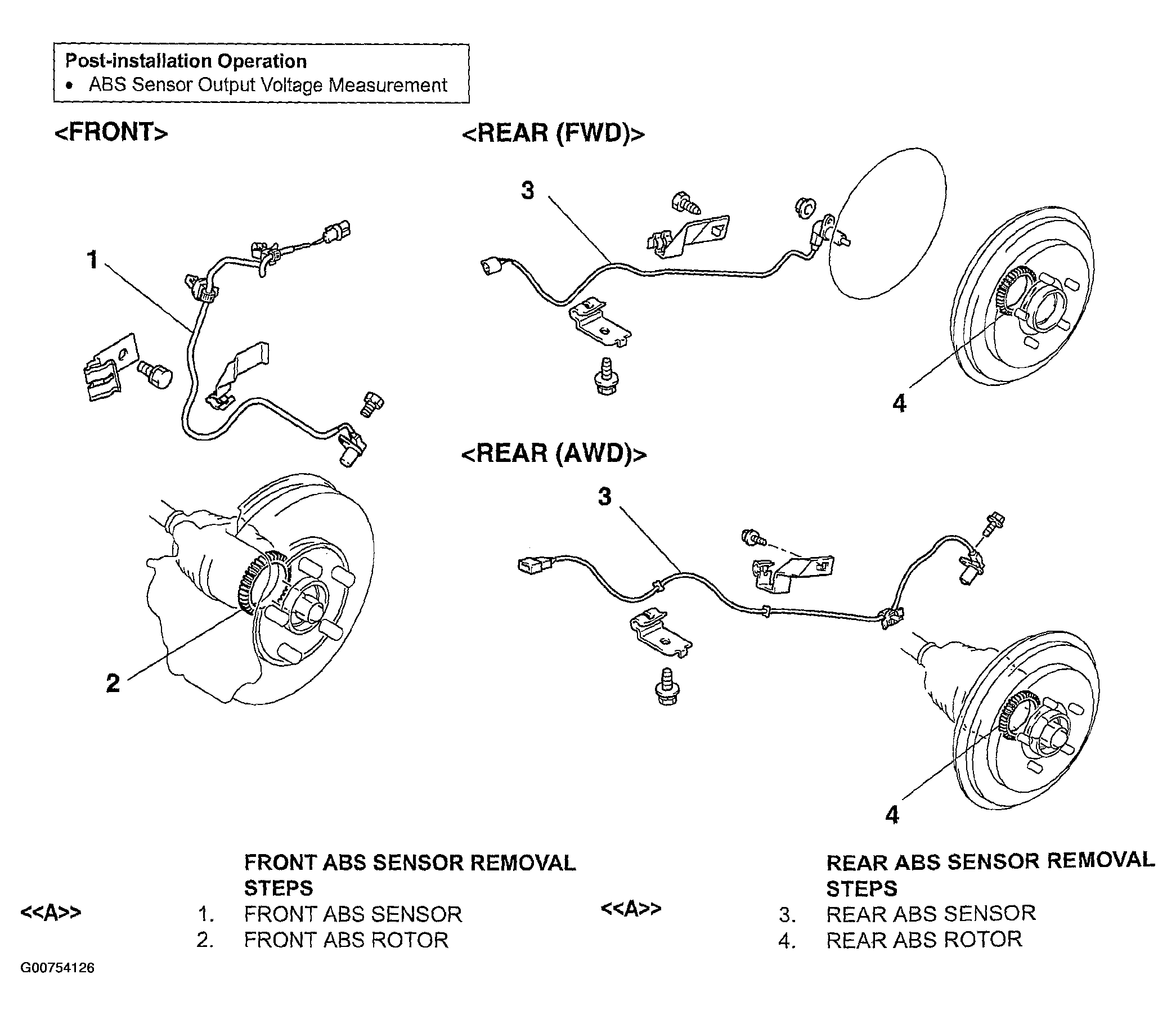

Fig 1: Removing And Installing Wheel Speed Sensor

G00754126

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
