Power Window Relay Check

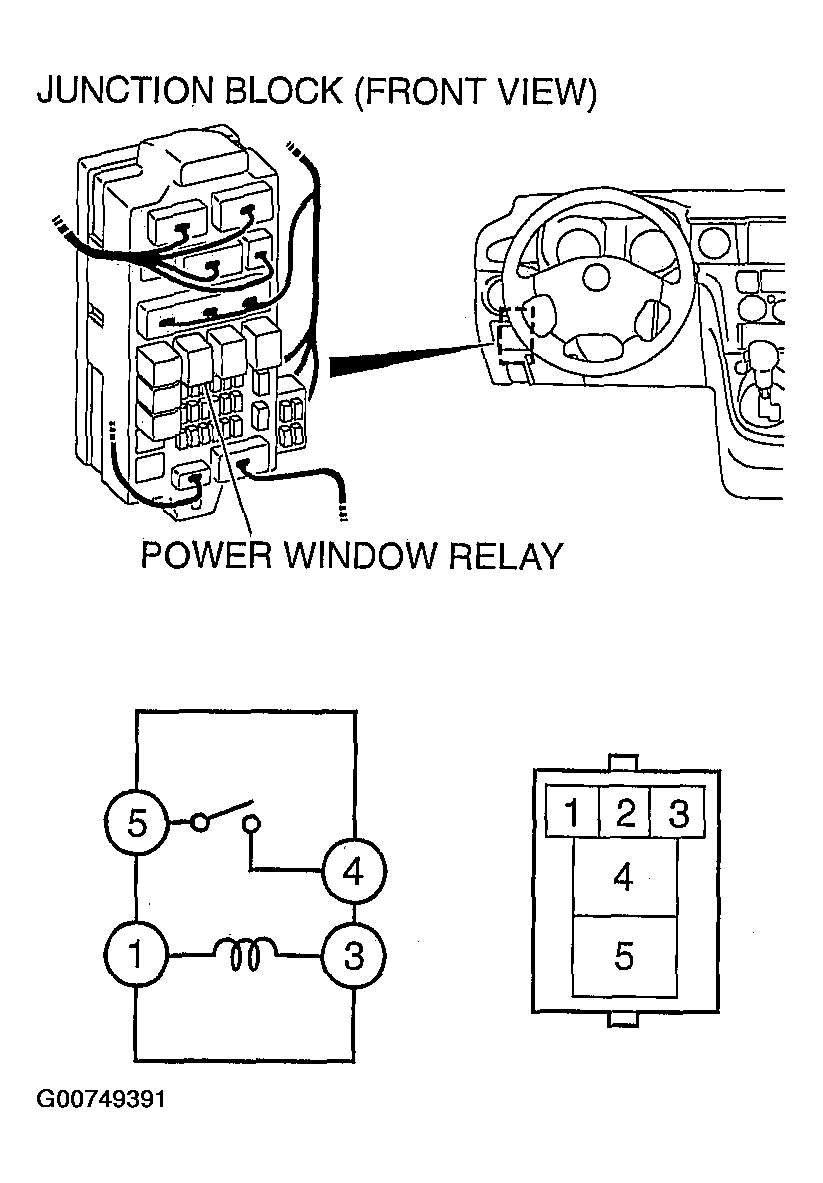

Fig 1: Checking Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

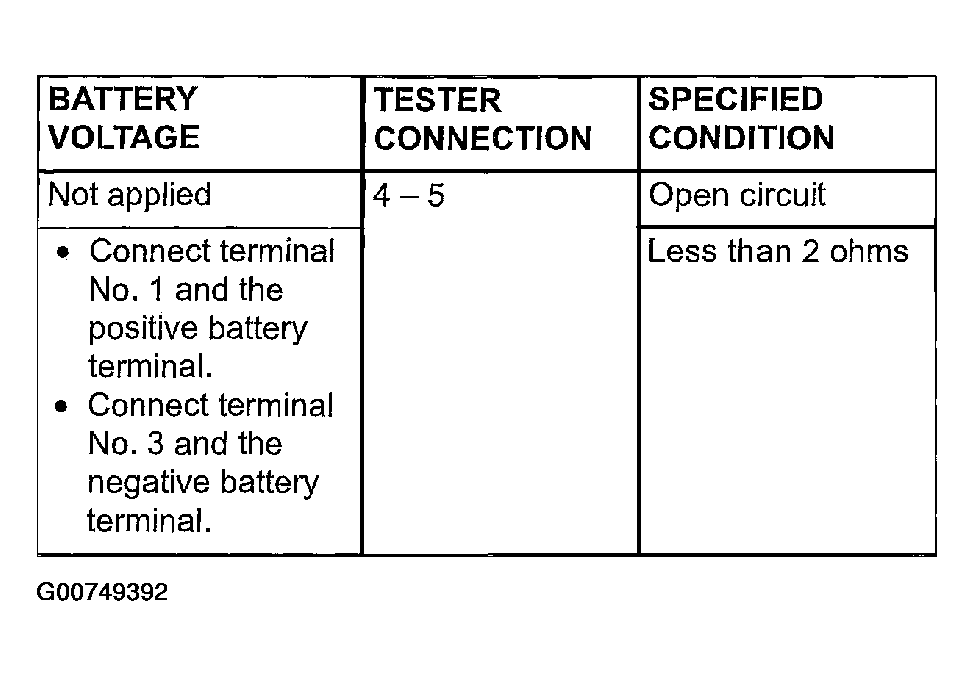

Fig 2: Battery Voltage Specification Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
