Home >> Mitsubishi >> 2004 >> Outlander LS, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door >> Door Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

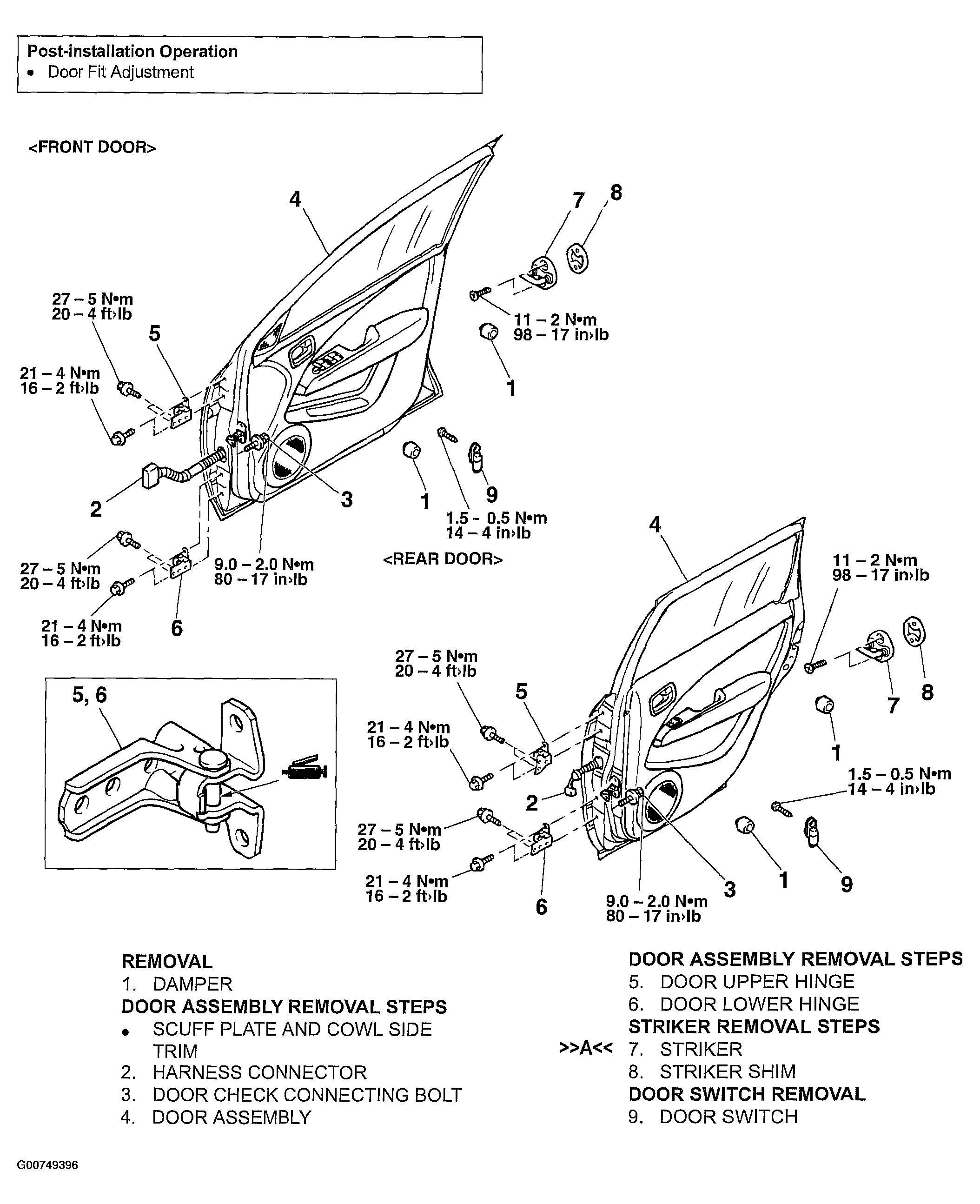

Fig 1: Identifying Door Assembly Components

G00749396

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
