Removal And Installation: Notes

WARNING:

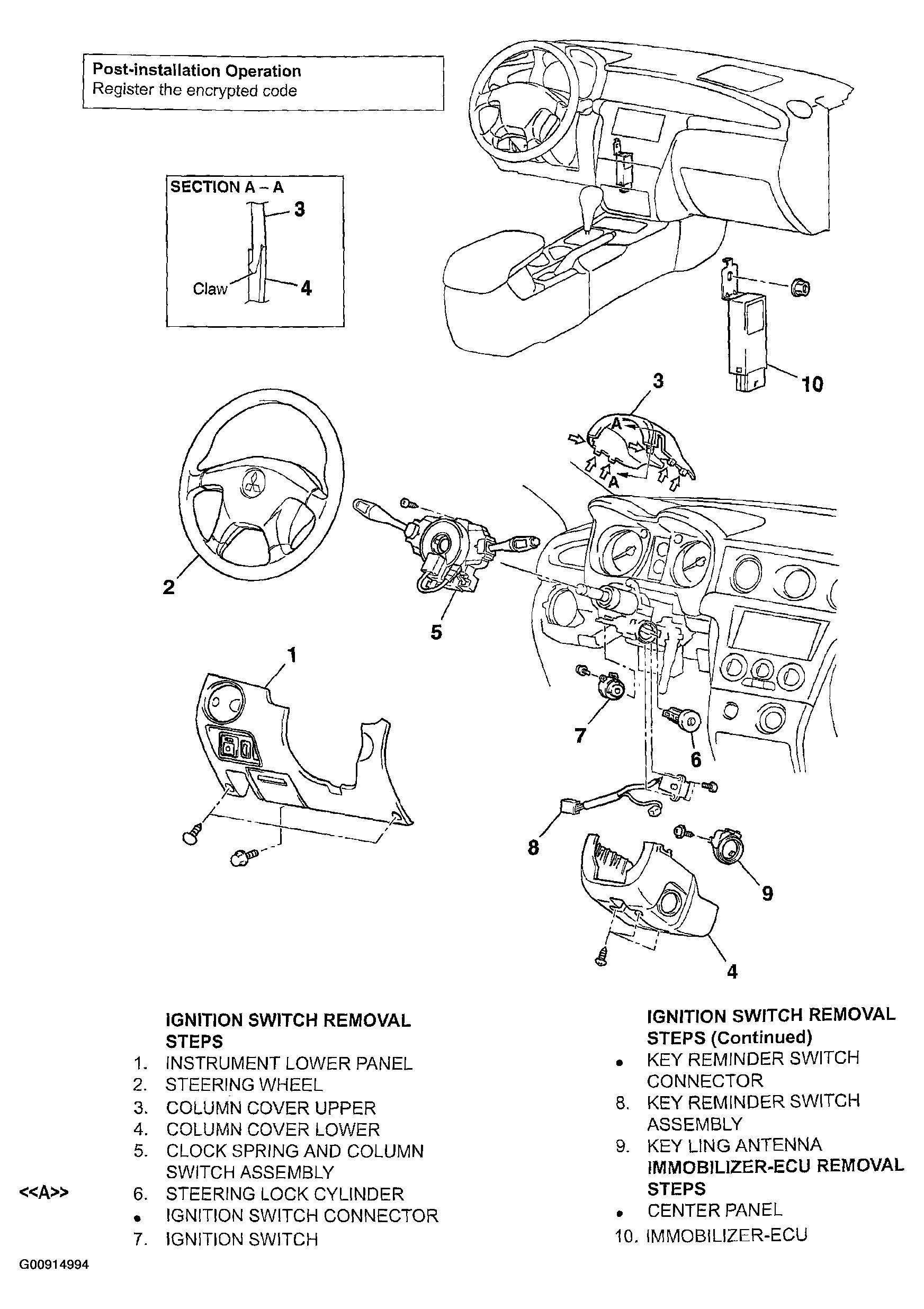

Fig 1: Removing & Installing Ignition Switch Components
G00914994Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
