Auto-Cruise Control Main Switch Check

  1. Turn the ignition switch to the "ON" position.
  2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE" (MAIN) switch is switched "ON".

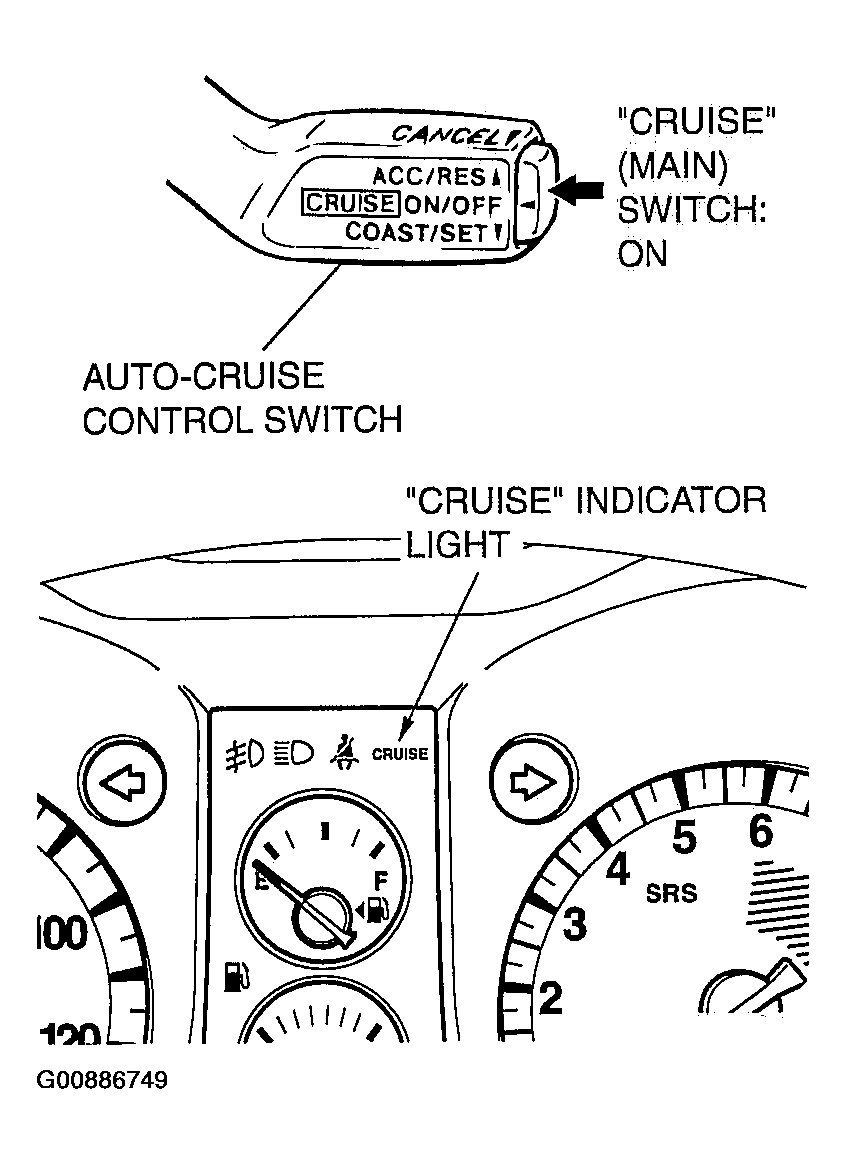

Fig 1: Checking Cruise Indicator Light Within Combination Meter
G00886749Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
