Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Reverse And Overdrive Clutches >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

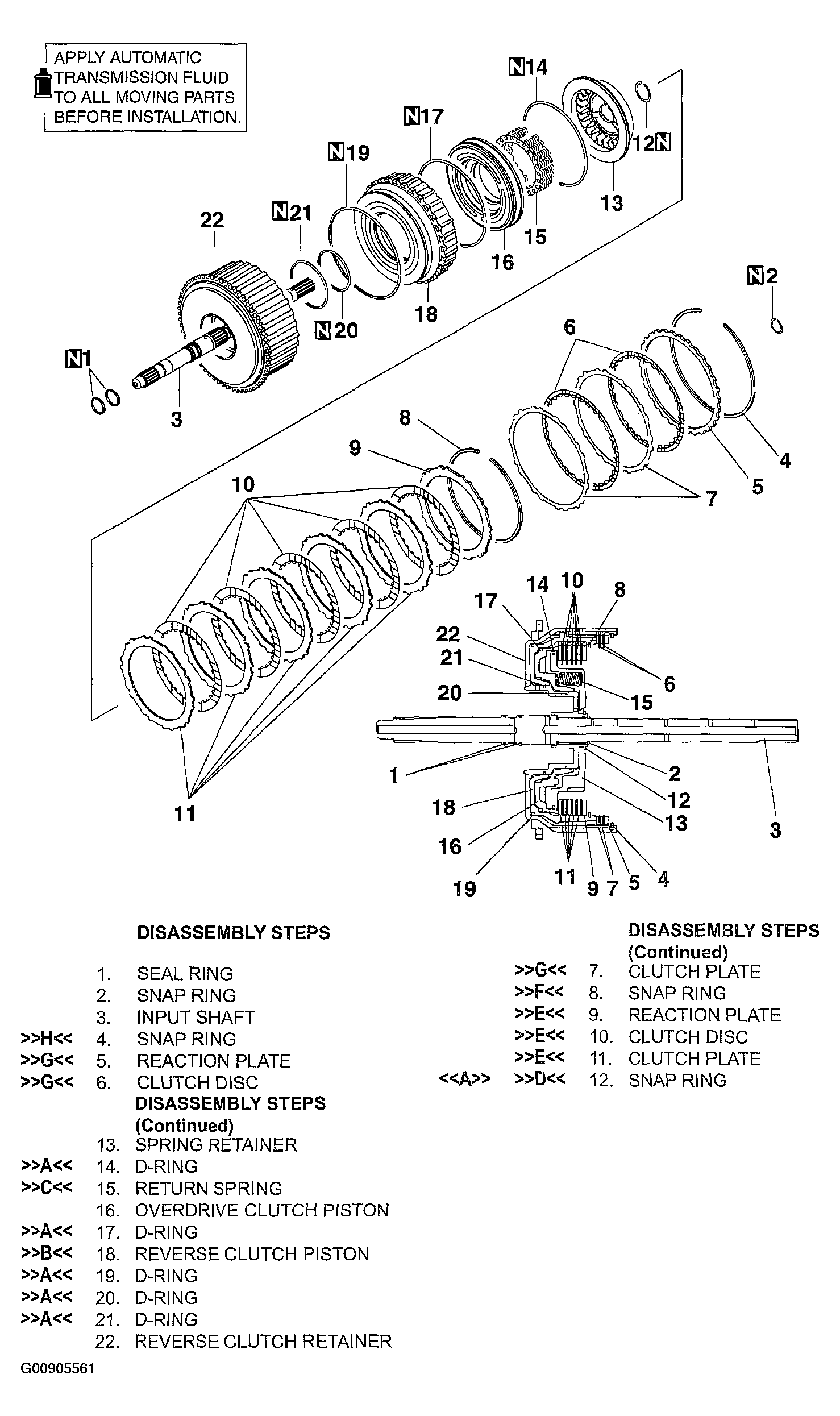

Fig 1: Exploded View Of Reverse And Overdrive Clutches
G00905561Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
