Hydraulic Control System

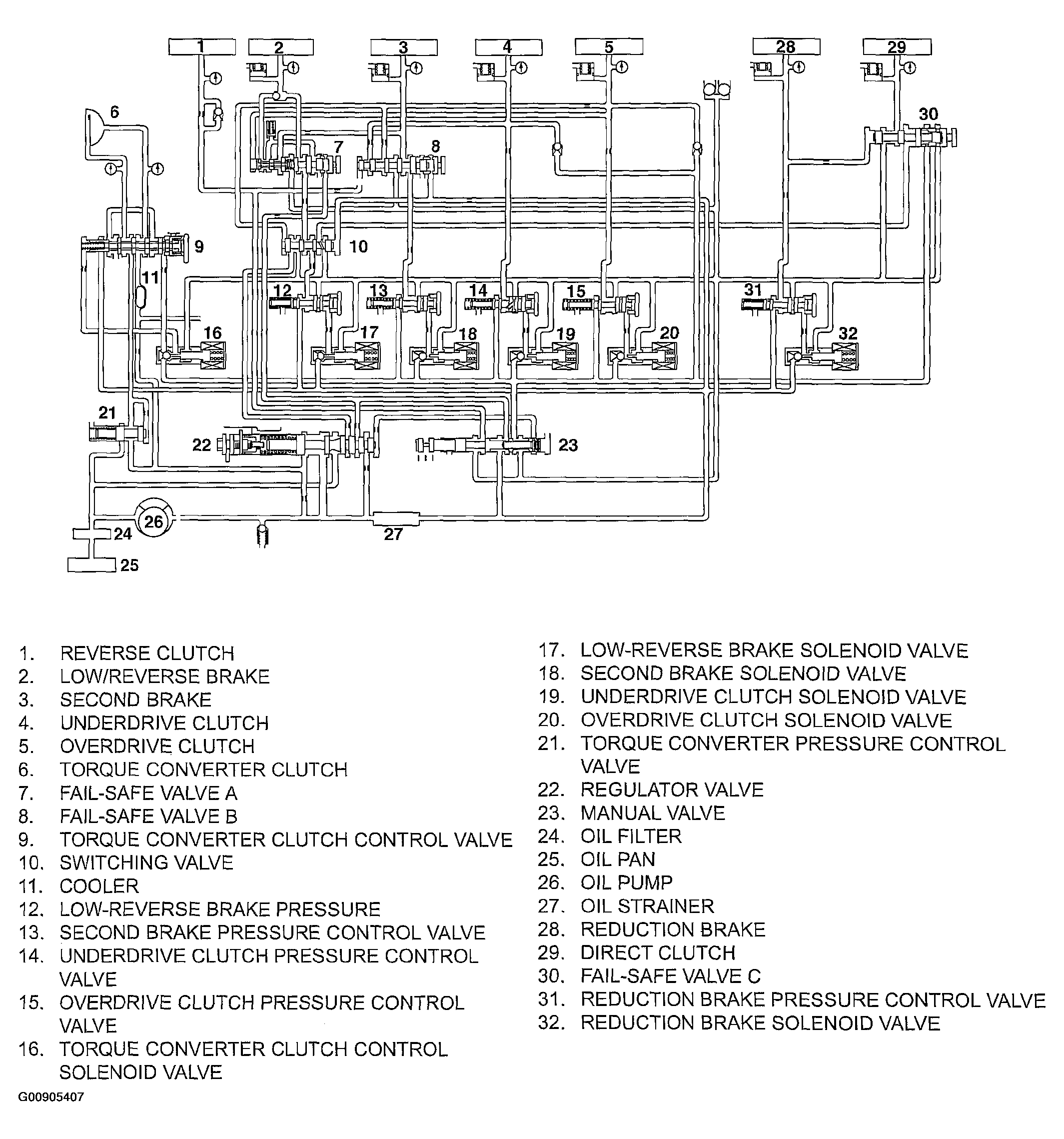

Fig 1: Identifying Hydraulic Control System Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
