Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> 2-4 Shift Rail/H-L Shift Rail >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

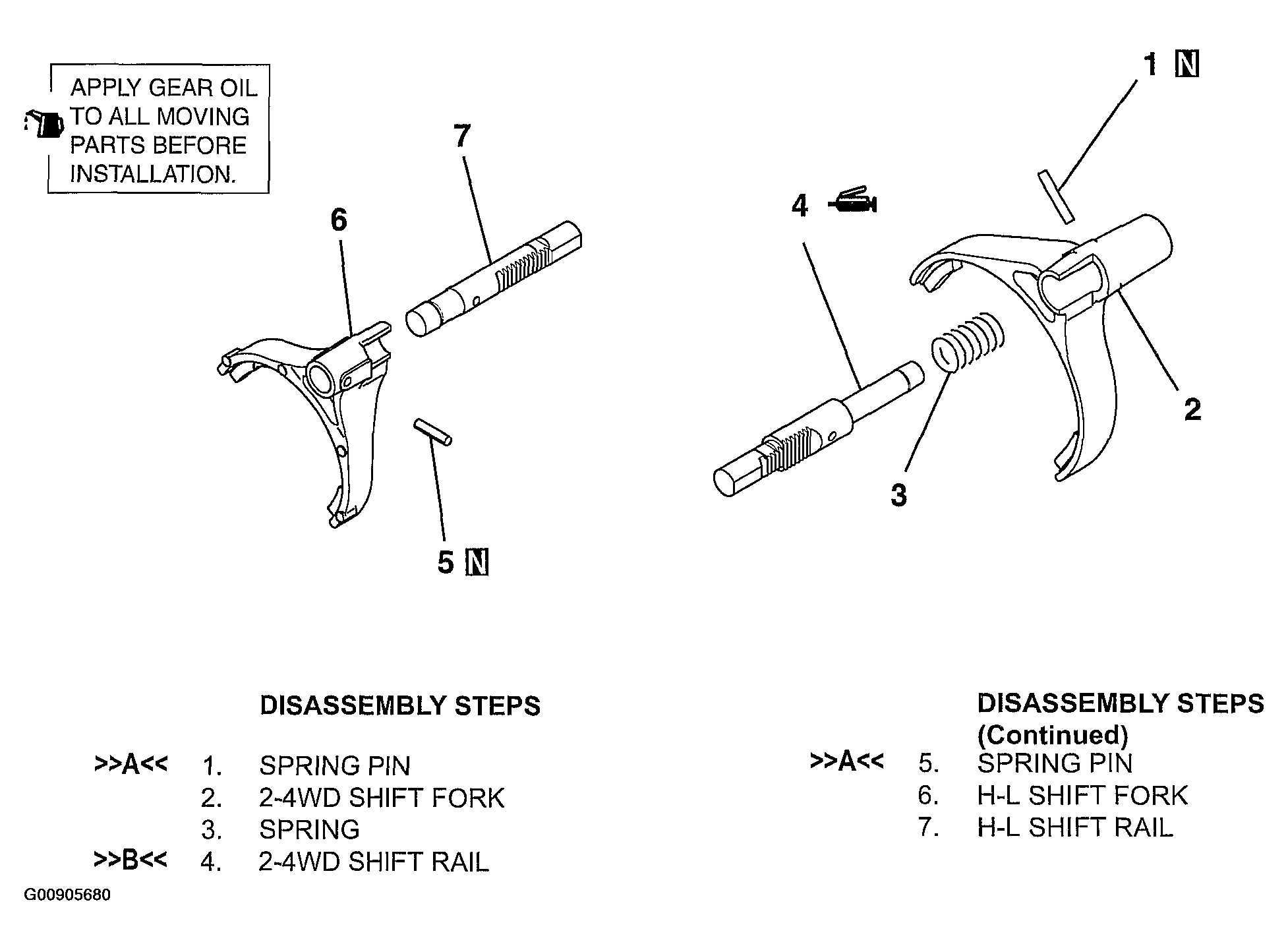

Fig 1: Identifying 2-4 Shift Rail/H-L Shift Rail Components

G00905680

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
