Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> Transmission Control >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

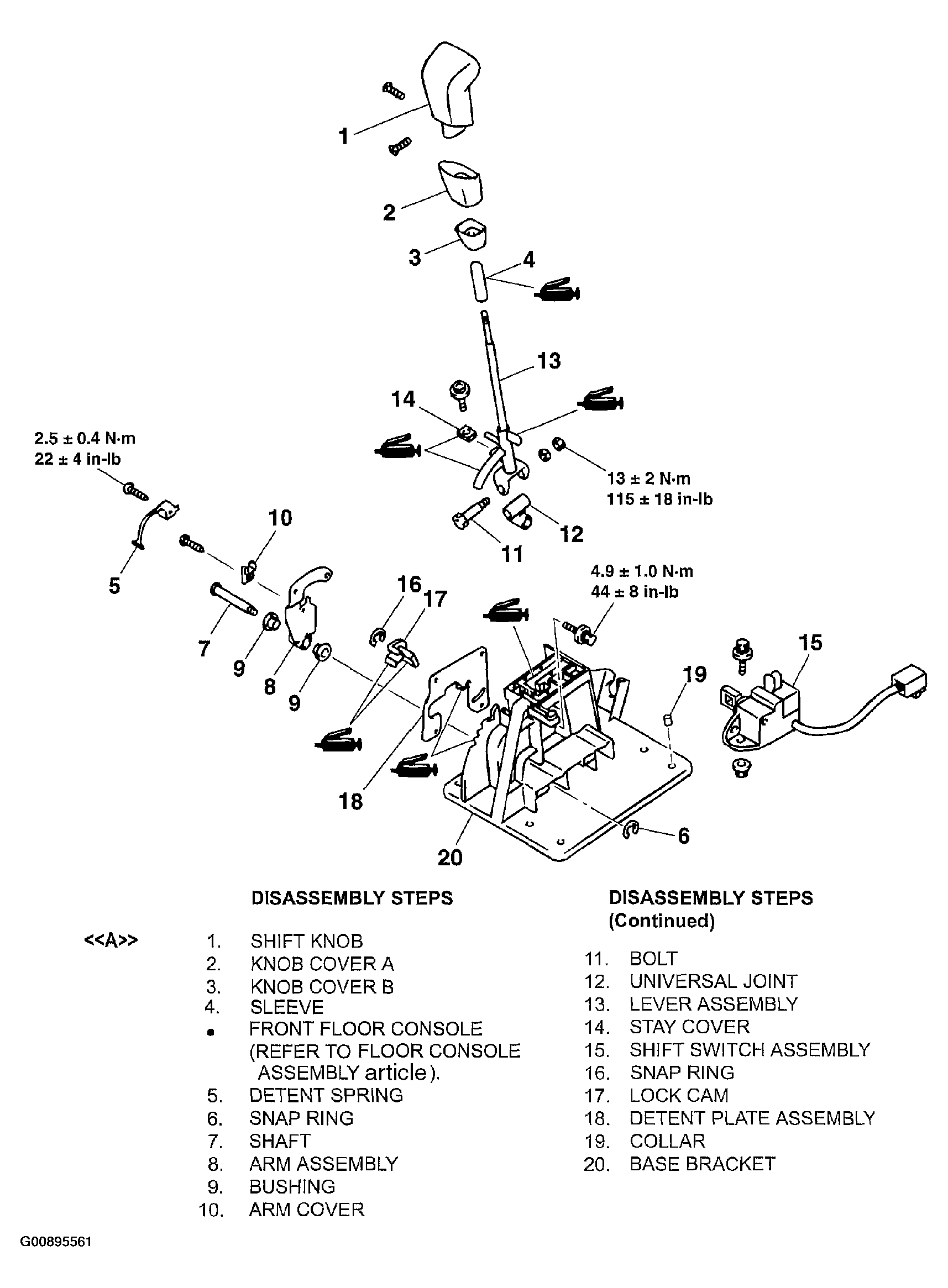

Fig 1: Disassembling Gear Shift Lever Assembly
G00895561Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
