Removal And Installation: Notes

CAUTION: The rear propeller shaft incorporates a carbon fiber-reinforced plastic tube, so be sure to refer to PROPELLER SHAFT .

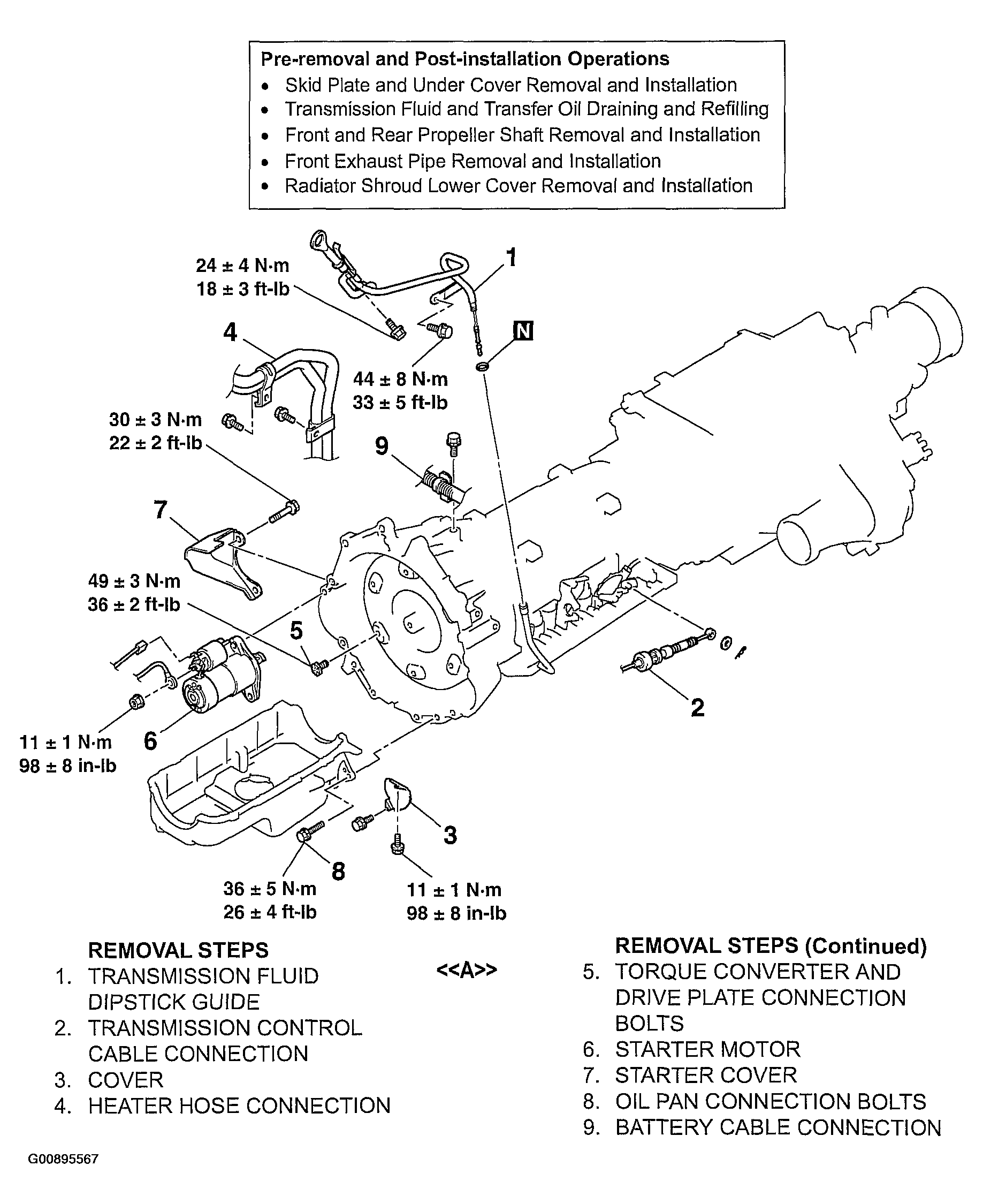

Fig 1: Removing Transmission And Transfer Assembly (1 Of 2)
G00895567Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

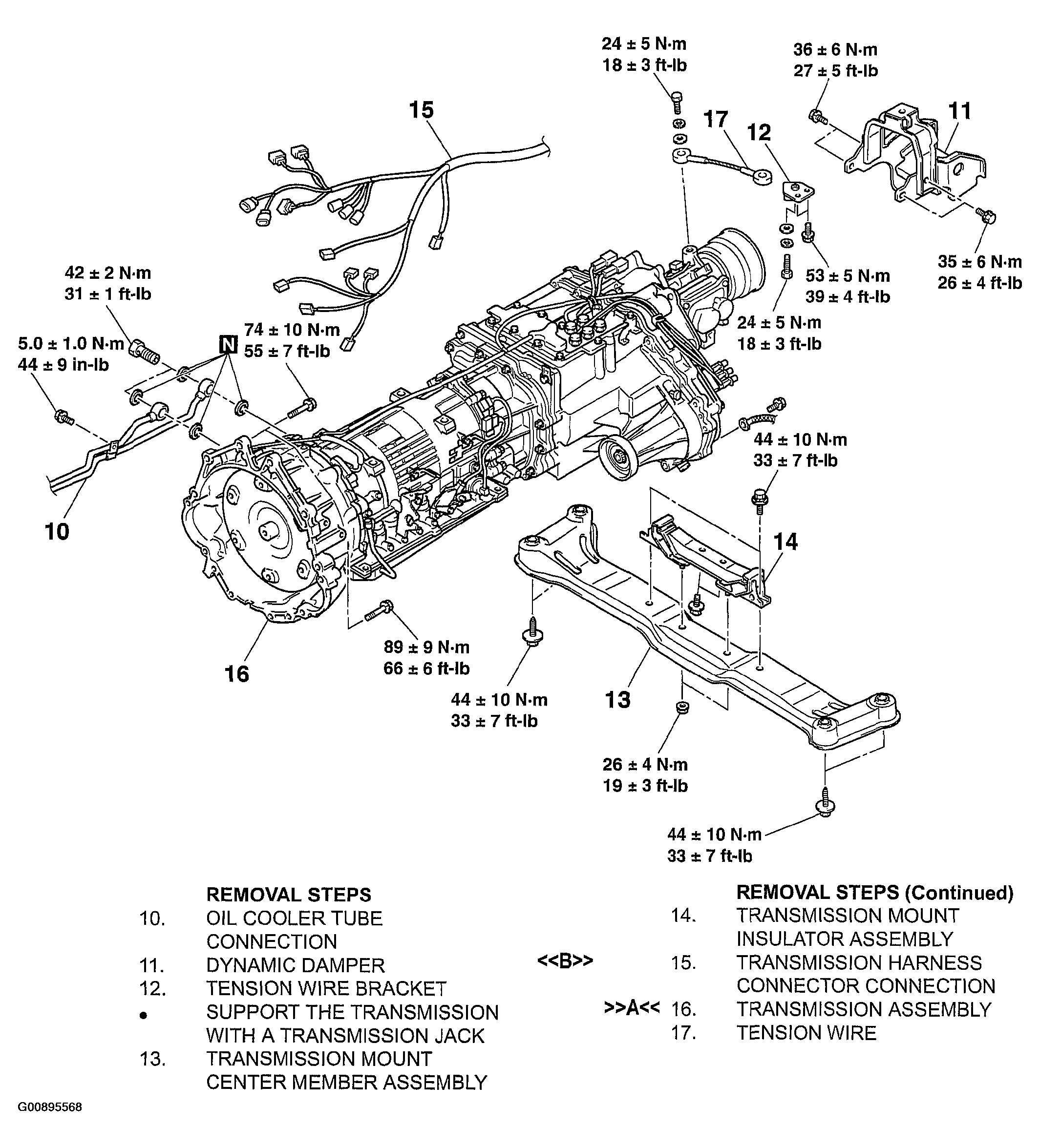

Fig 2: Removing Transmission And Transfer Assembly (2 Of 2)
G00895568Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
