Transmission Range Switch Continuity Check

Fig 1: Locating Transmission Range Switch
G00895519Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

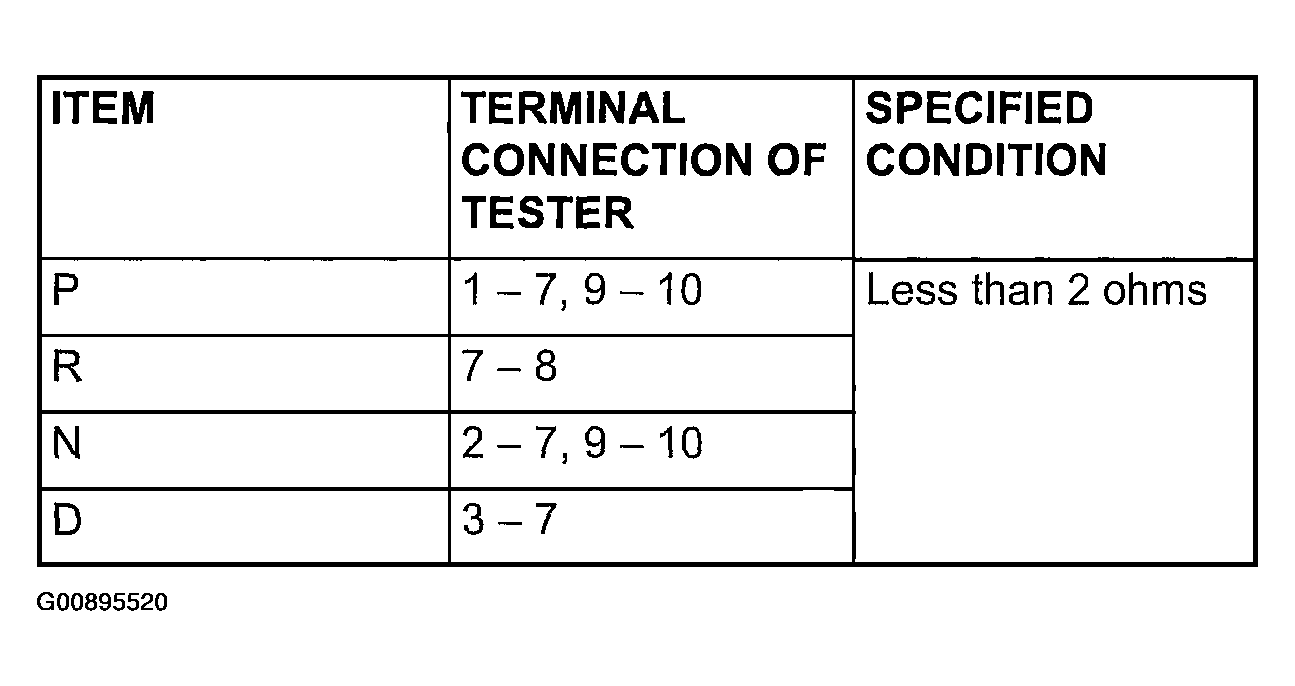

Fig 2: Transmission Range Switch Continuity Table
G00895520Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Transmission Range Switch Terminals
G00895521Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
