Transfer-Ecu Check

  1. Remove the indicator panel and the floor console front panel (Refer to FLOOR CONSOLE ASSEMBLY ).
  2. Measure the transfer-ECU terminal voltage (Refer to TRANSFER-ECU TERMINAL VOLTAGE REFERENCE CHART FOR  ).

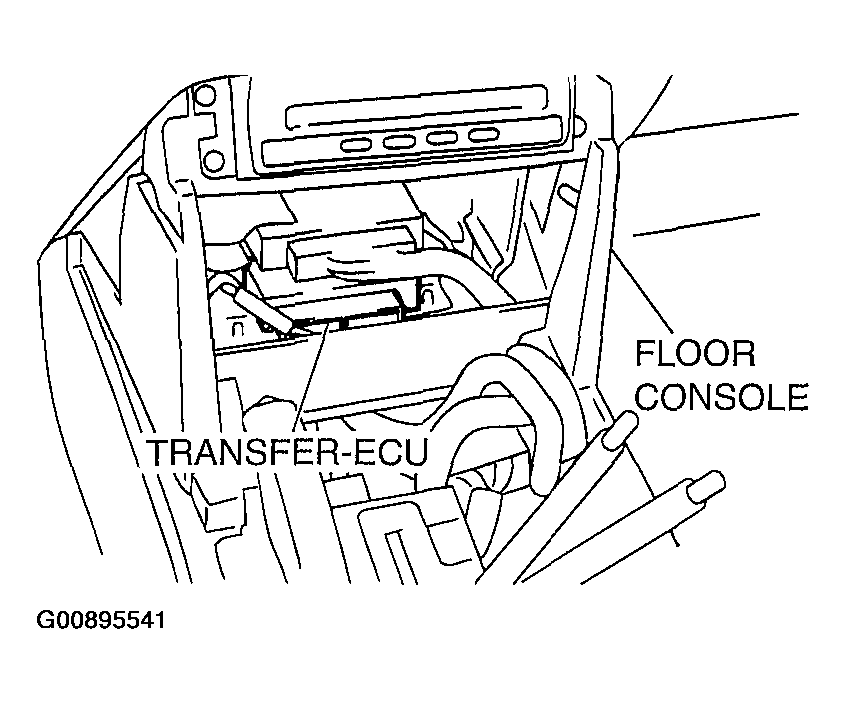

    Fig 1: Identifying Transfer-ECU And Floor Console
    G00895541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
