Position Indicator Light Check

  1. Remove the indicator panel (Refer to FLOOR CONSOLE ASSEMBLY ).
  2. Check that there is continuity between the following terminals:
    Fig 1: Position Indicator Light Continuity Table
    G00895542Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

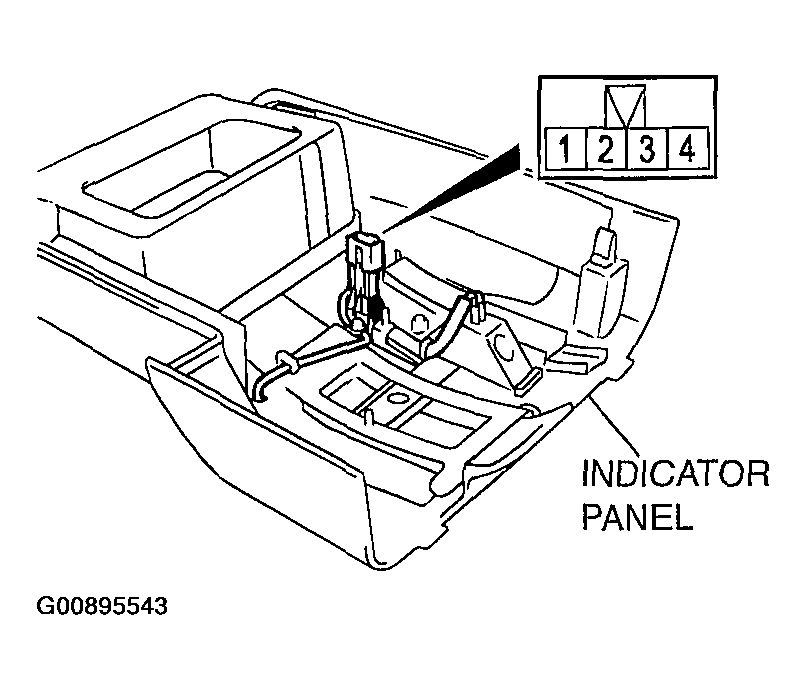

    Fig 2: Identifying Position Indicator Light Terminals
    G00895543Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. If the continuity is incorrect, replace the position indicator light unit assembly.
