Home
>>
Mitsubishi
>>
2004
>>
Montero XLS
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Diagnosis
>>
General Description
>>
Sectional View
Sectional View

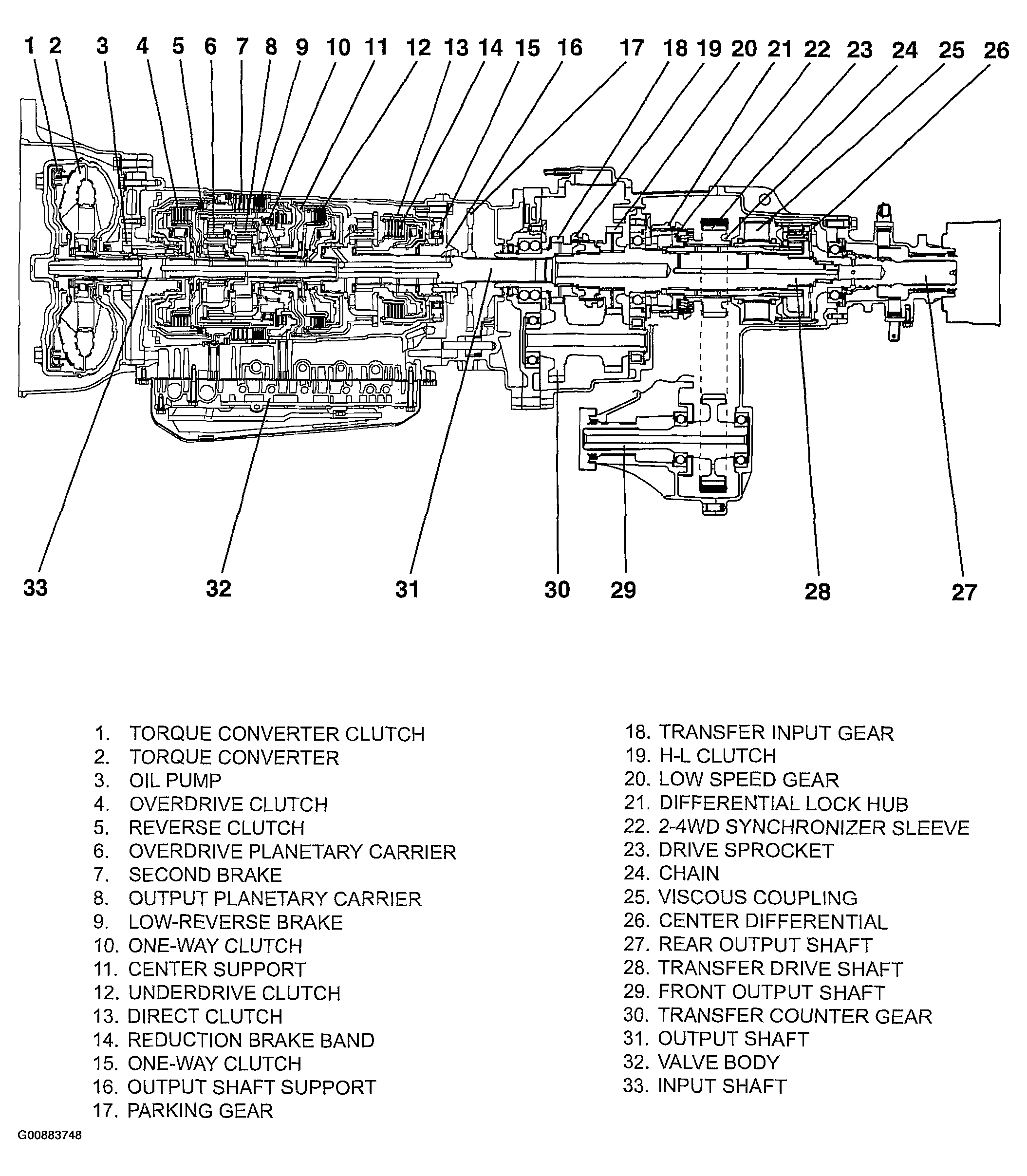

Fig 1: Sectional View Of Automatic Transmission
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
