Upshift Pattern

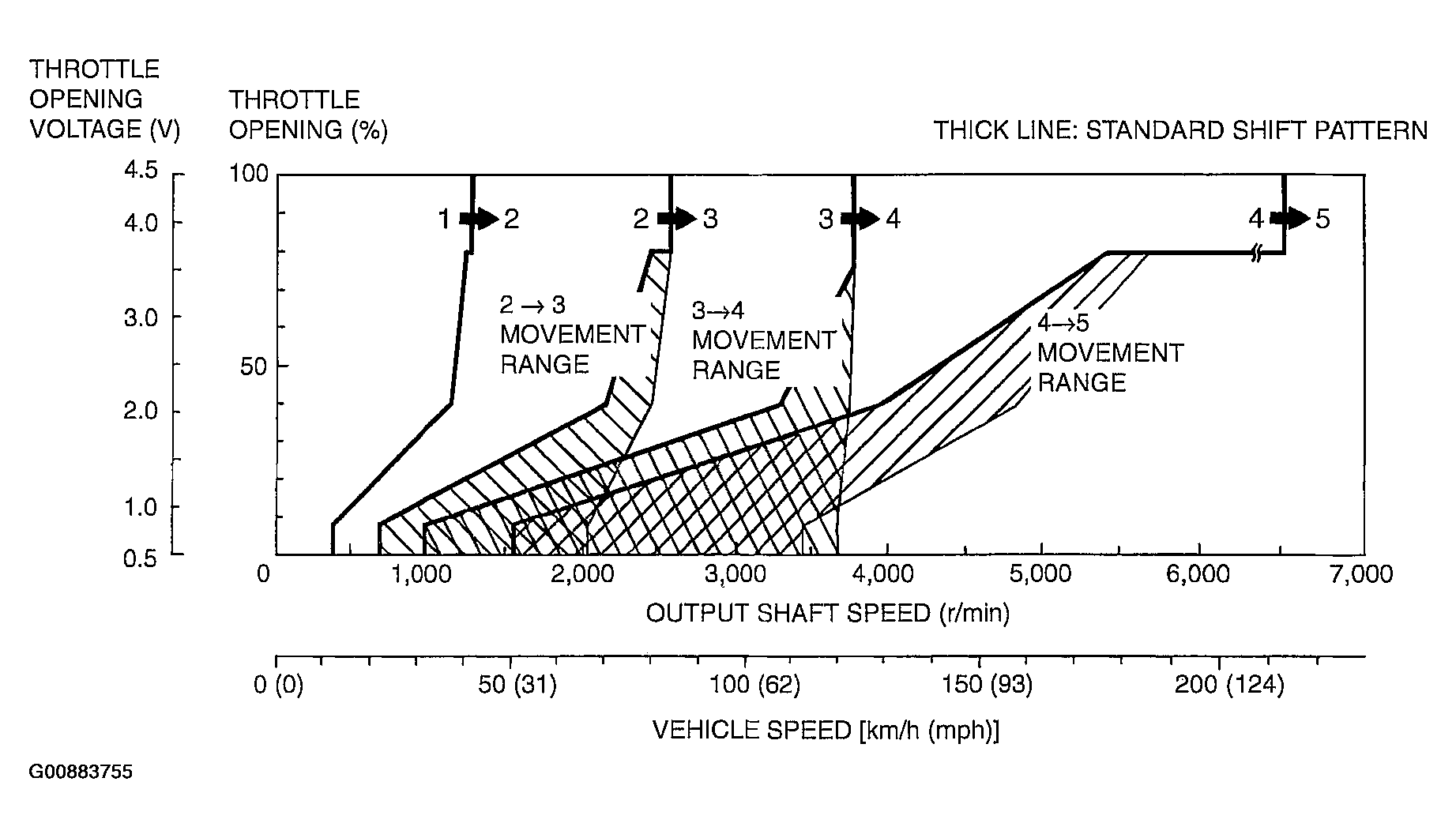

Fig 1: Graph - Upshift Pattern
G00883755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Within 2 -to- 3 and 3 -to- 4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
