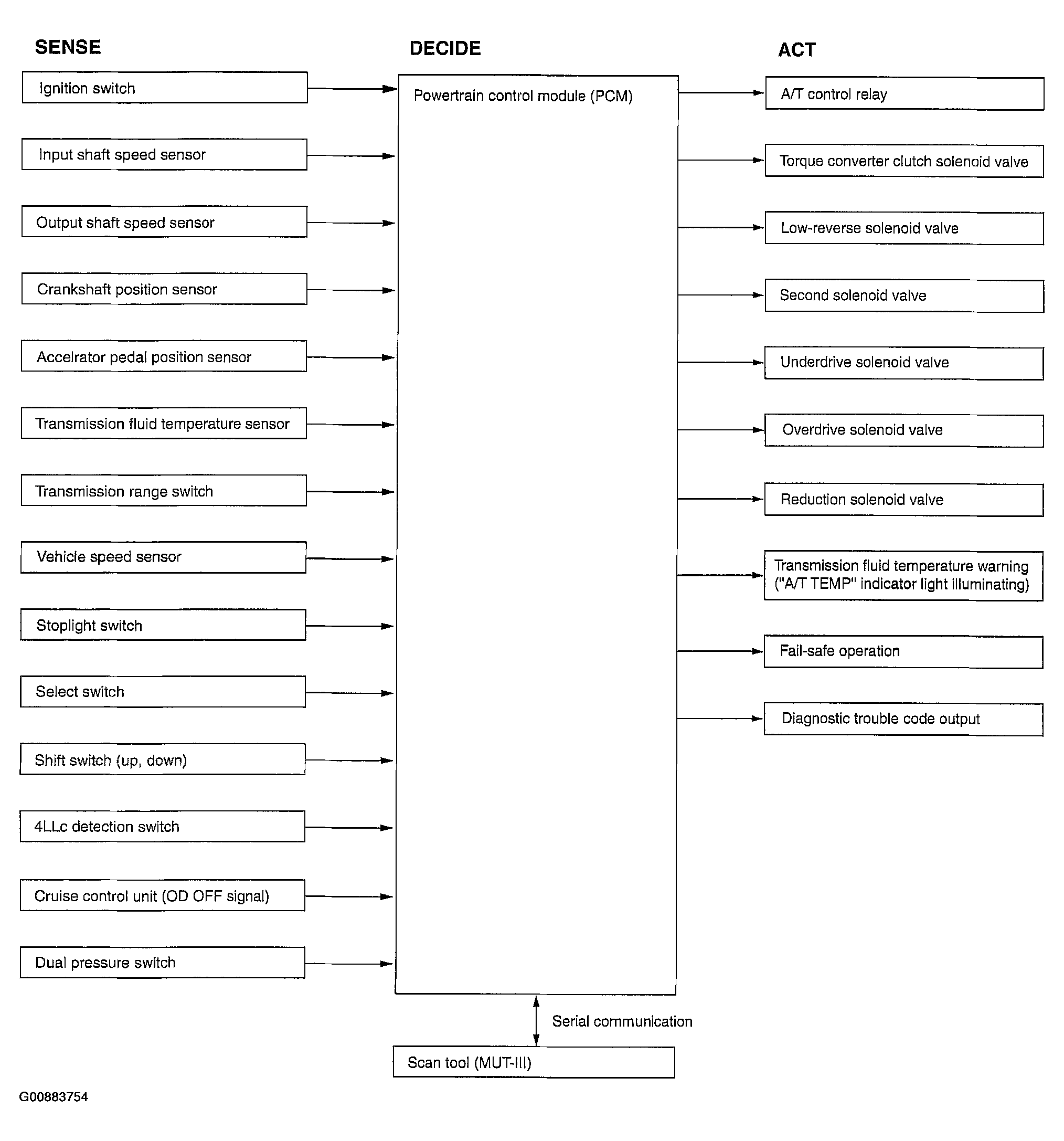

Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis >> General Description >> Electronically-Controlled System >> Features >> System Construction Diagram
