Home >> Mitsubishi >> 2004 >> Montero XLS >> Repair and Diagnosis >> Suspension >> Front Suspension >> Shock Absorber Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

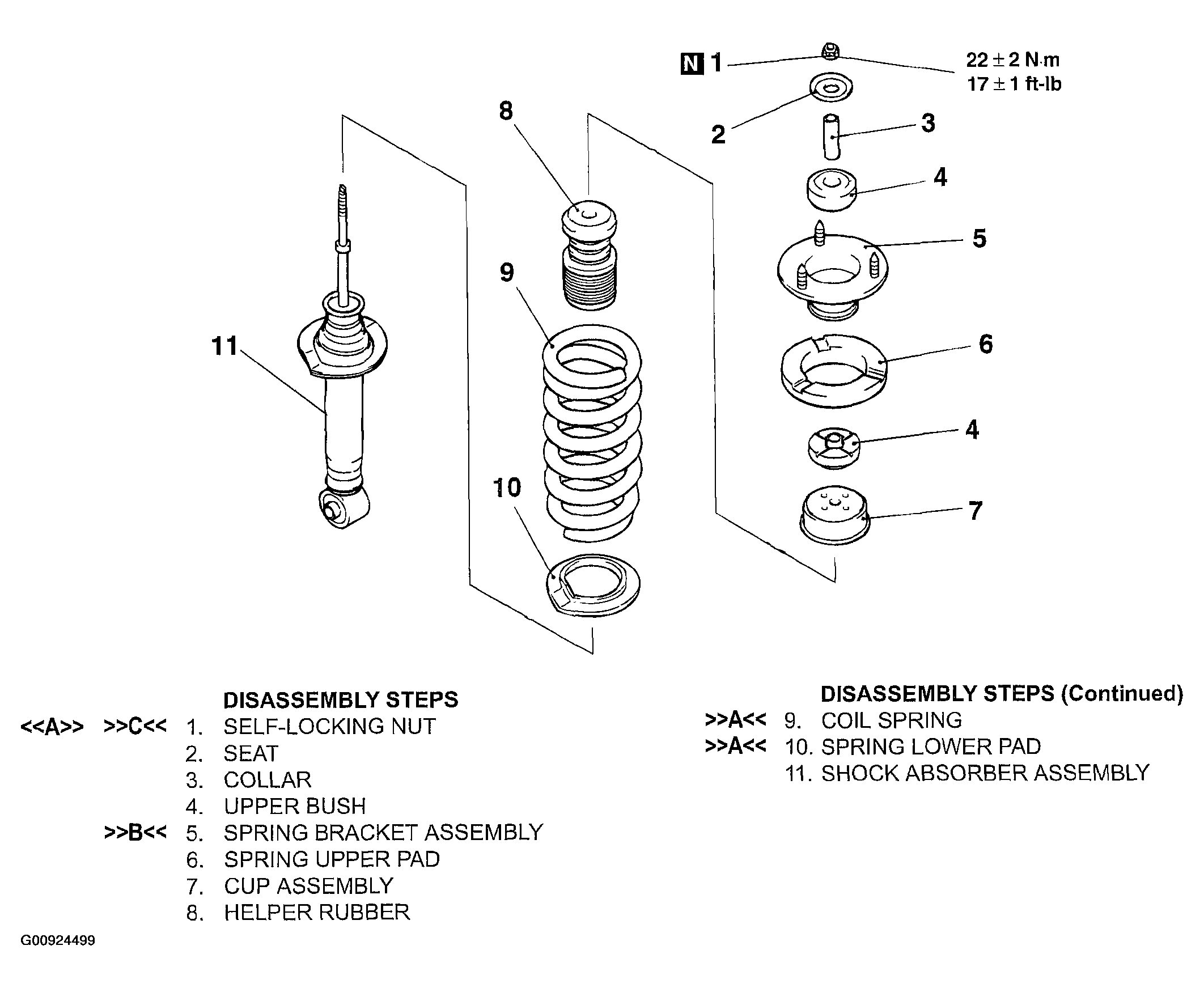

Fig 1: Shock Absorber Disassembly And Assembly

G00924499

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
