Notes
Disassembly And Assembly: Notes
CAUTION:
Never disassemble the terminal assembly. It cannot be reassembled.

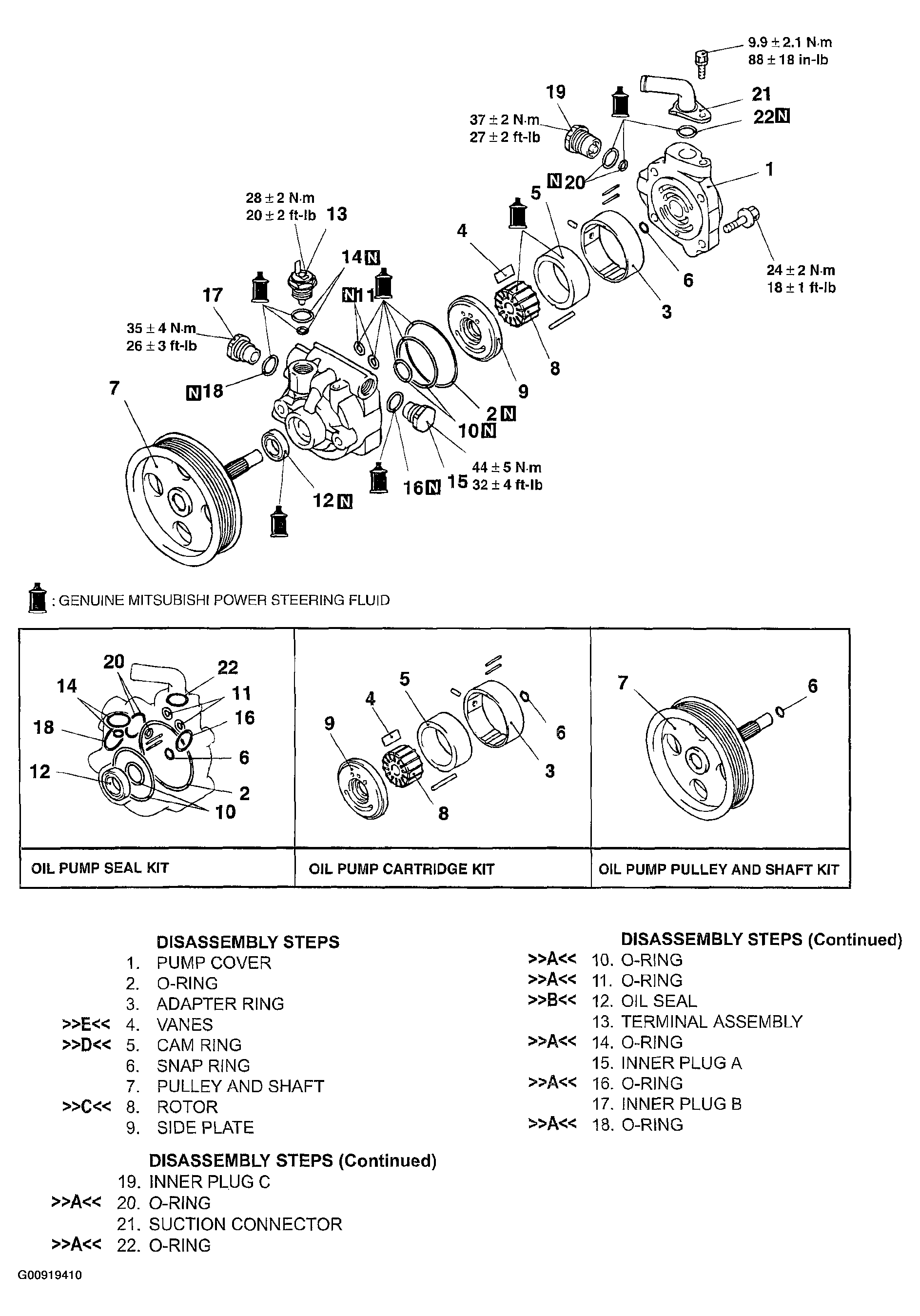

Fig 1: Exploded View Of Power Steering Oil Pump
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
