Ignition System
>>
Crankshaft Position Sensor
>>
Removal And Installation
Removal And Installation

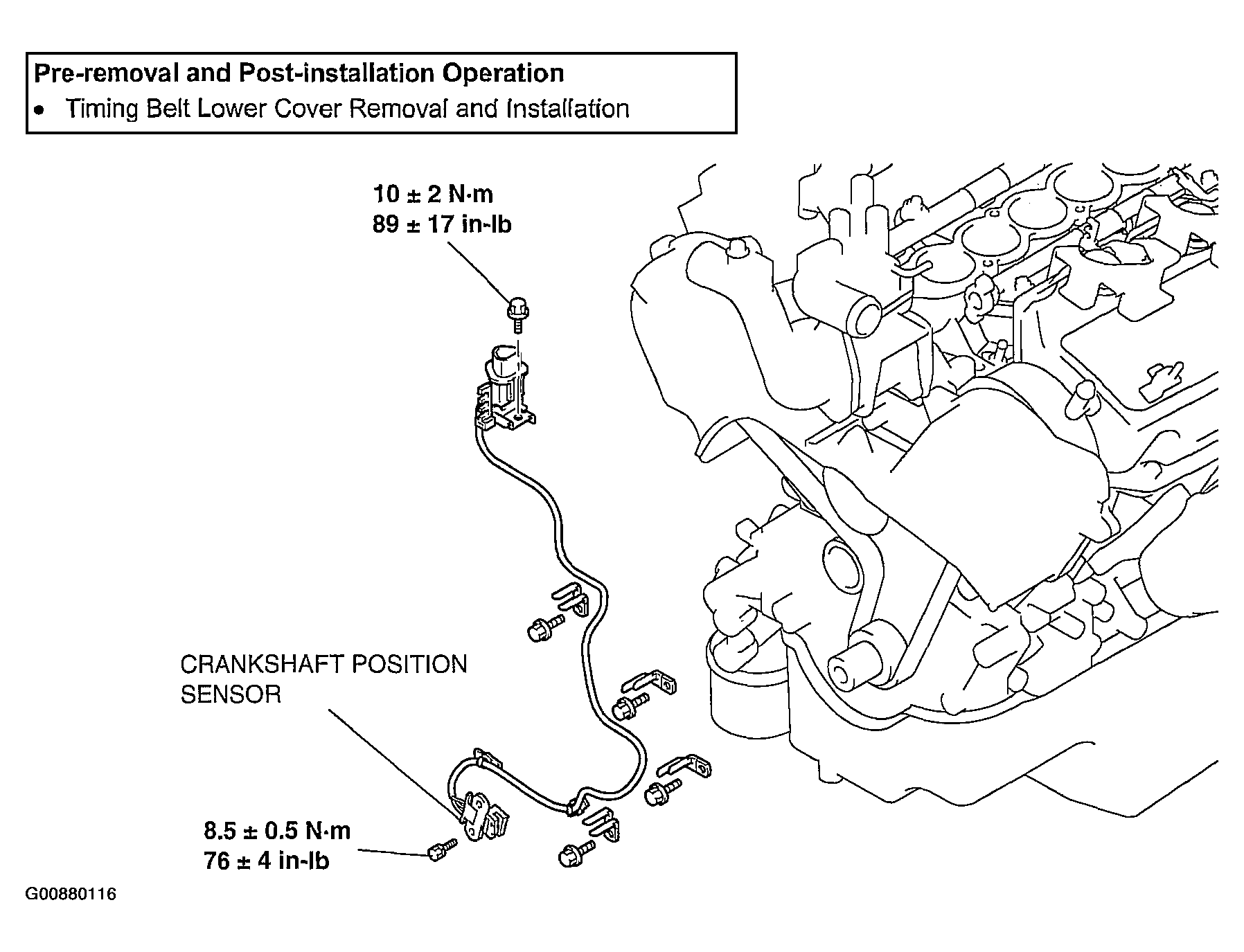

Fig 1: Exploded View Of Crankshaft Position Sensor Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
