Removal And Installation

CAUTION: The accelerator pedal position sensor is preadjusted precisely at factory. Whenever the accelerator pedal position sensor is removed and installed, it should be adjusted.

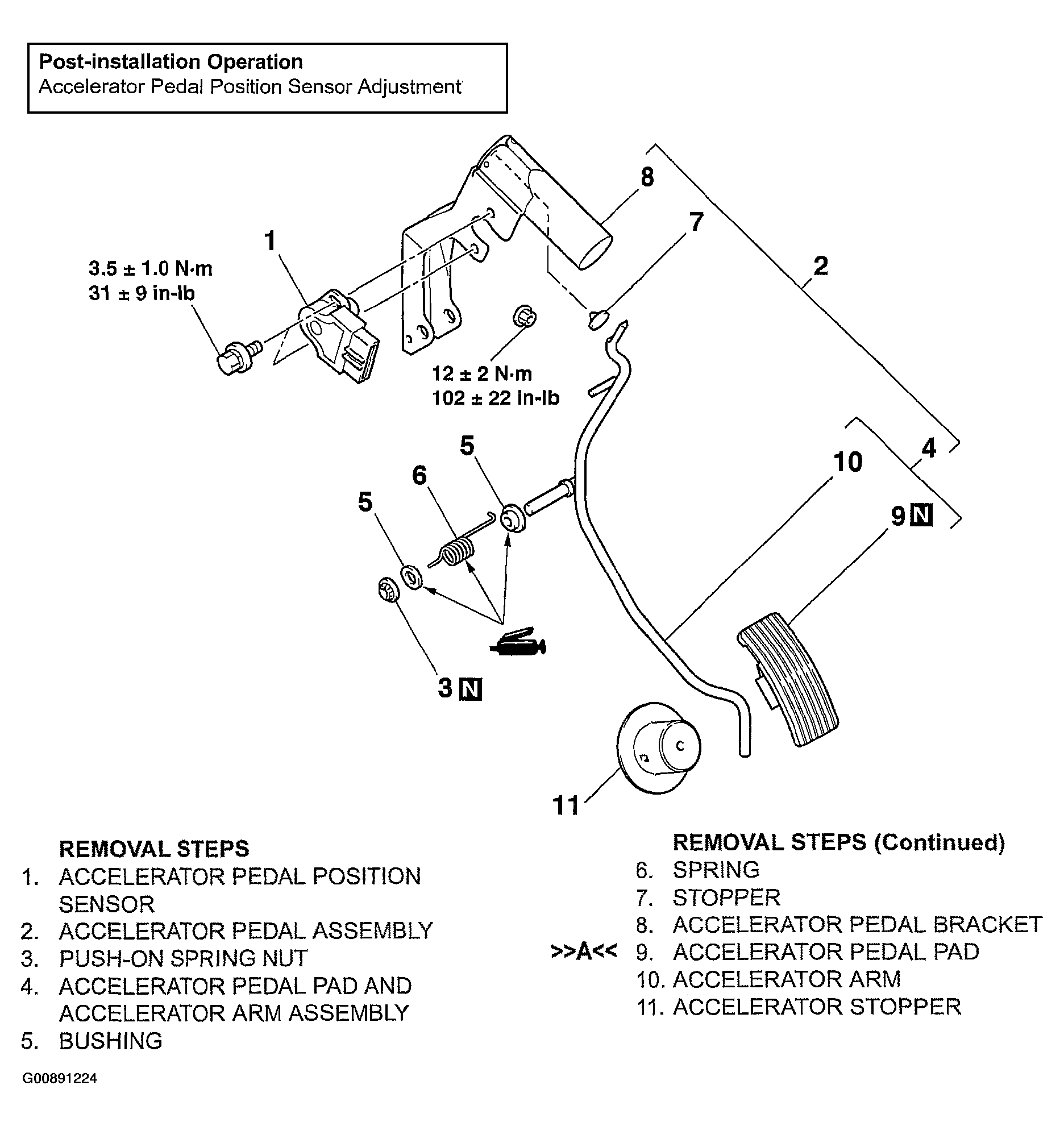

Fig 1: Adjusting Accelerator Pedal Position Sensor
G00891224Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
