Removal And Installation

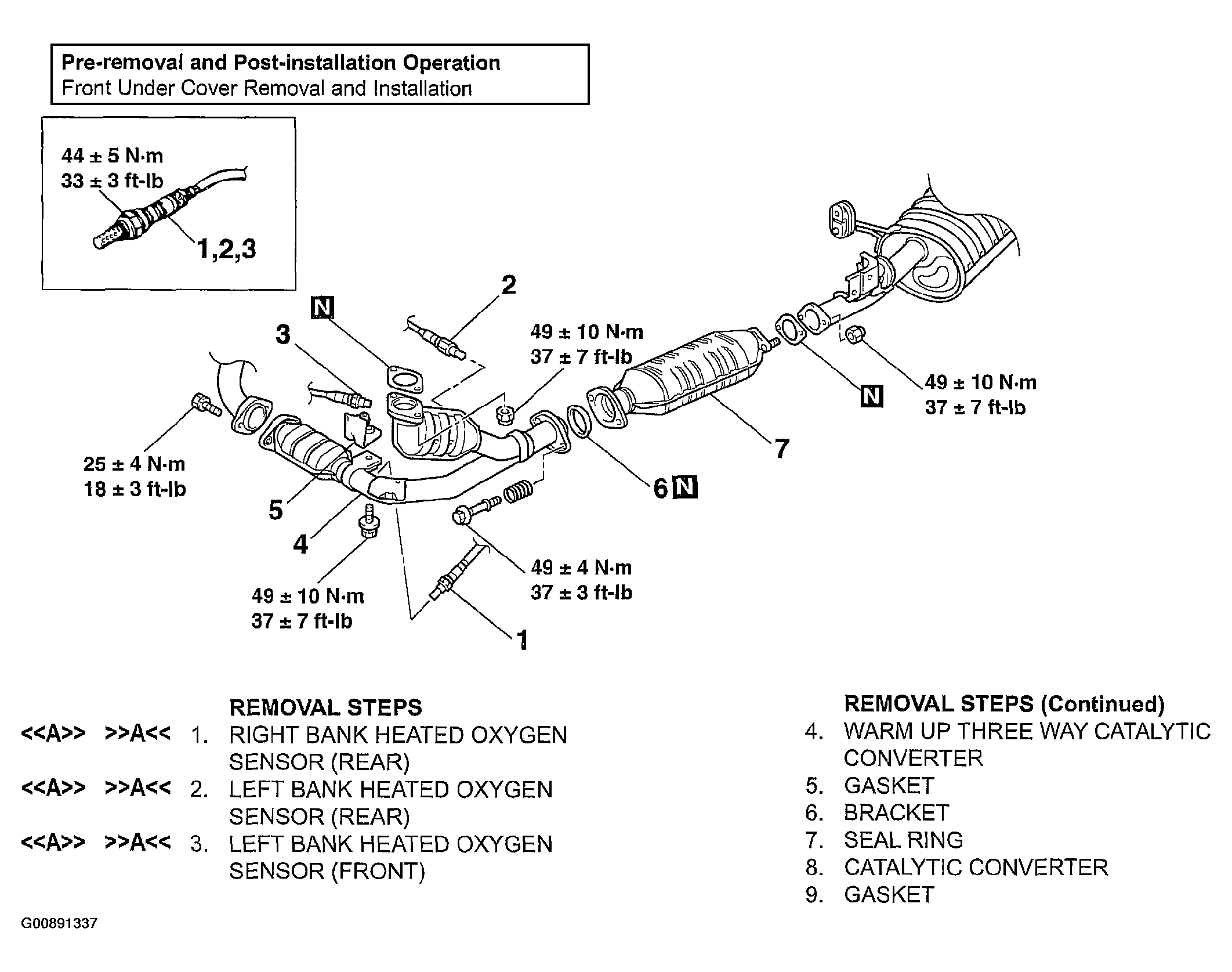

Fig 1: Removing And Installing Catalytic Converter Components
G00891337Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
