Mitsubishi
>>
2004
>>
Montero XLS
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
Overhaul
>>
Ignition System
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

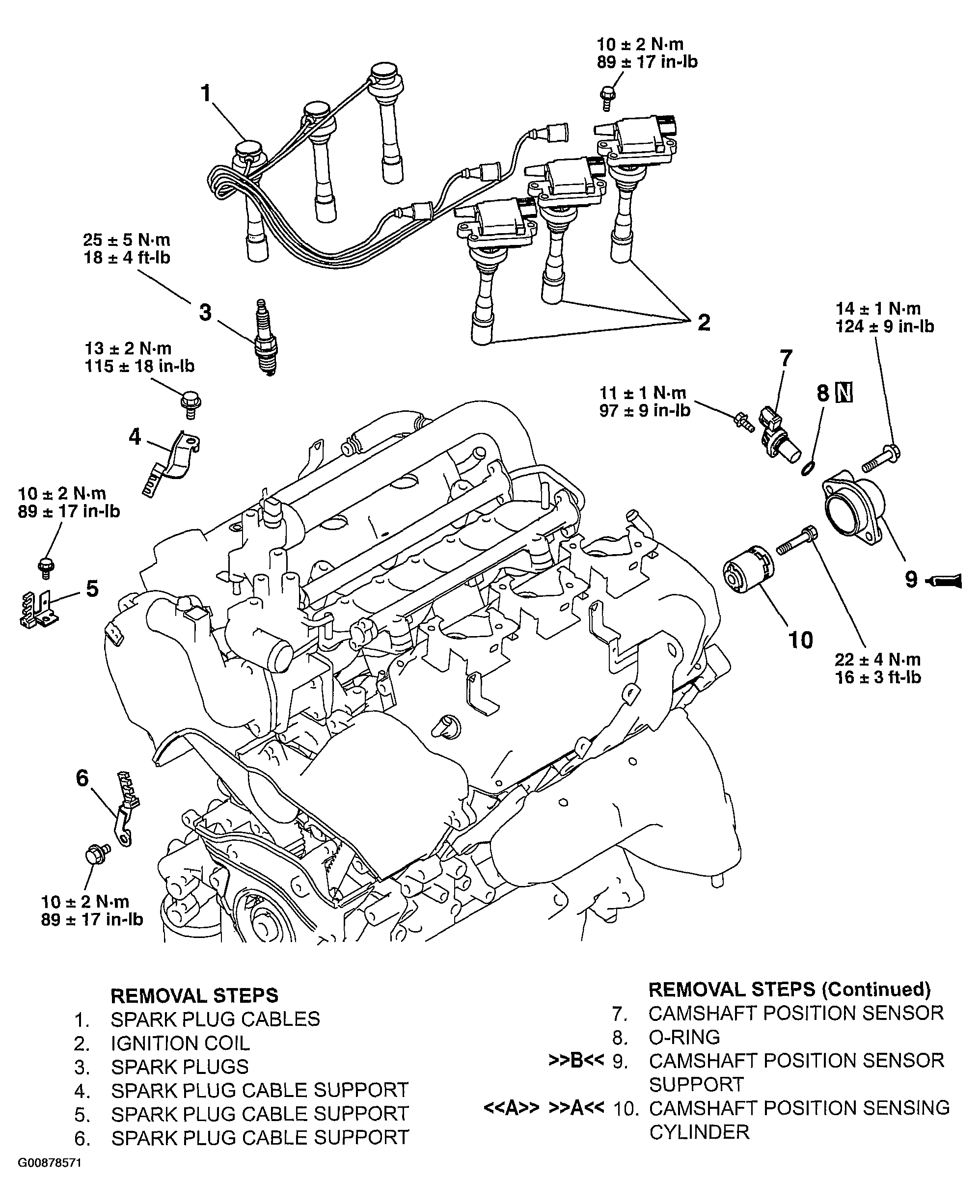

Fig 1: Exploded View And Tightening Torque Specifications Of Ignition System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
