Removal And Installation: Notes

CAUTION: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontal and loading the full weight of the engine on the vehicle body.

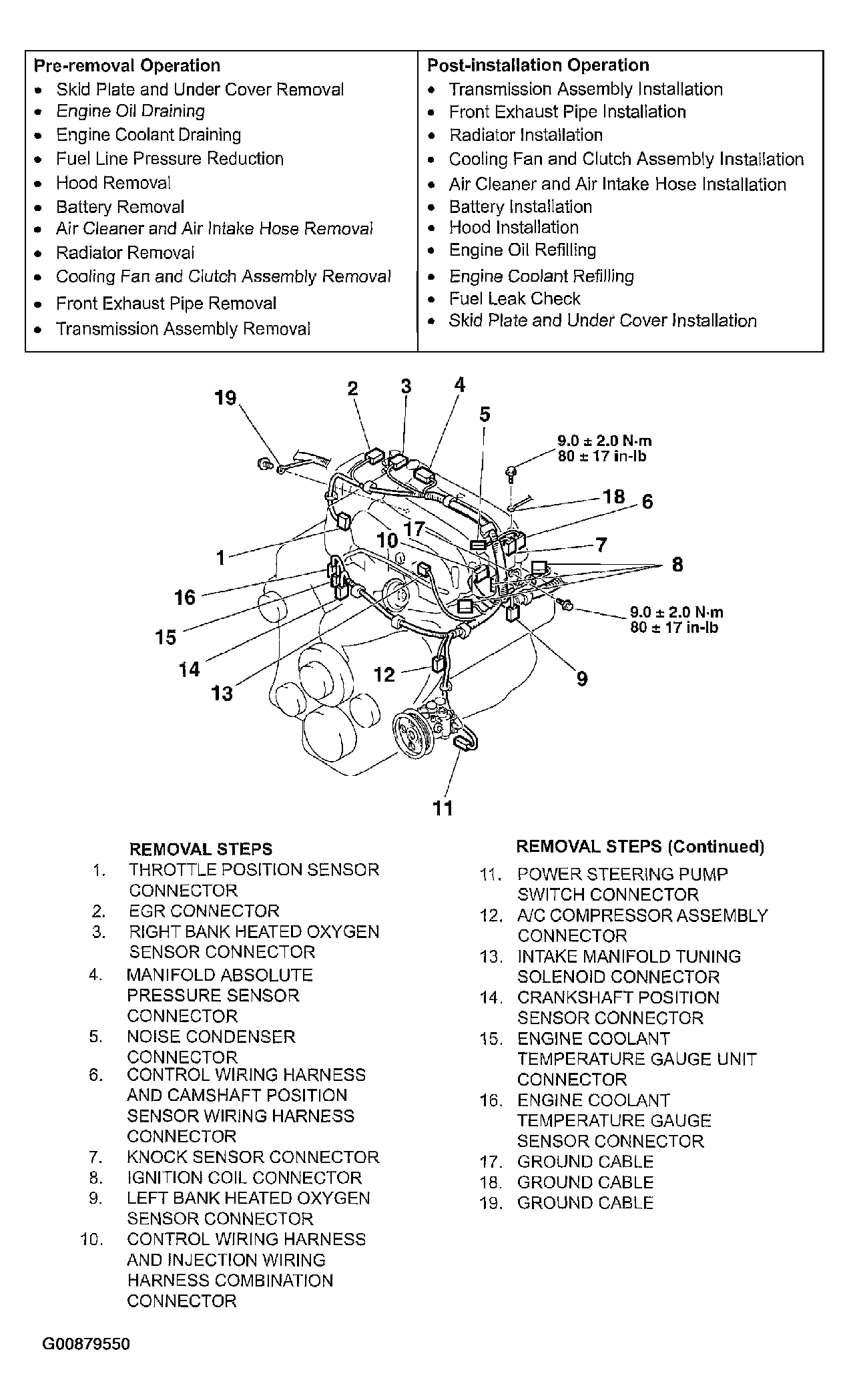

Fig 1: Removal And Installation Of Engine Assembly (1 Of 2)
G00879550Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

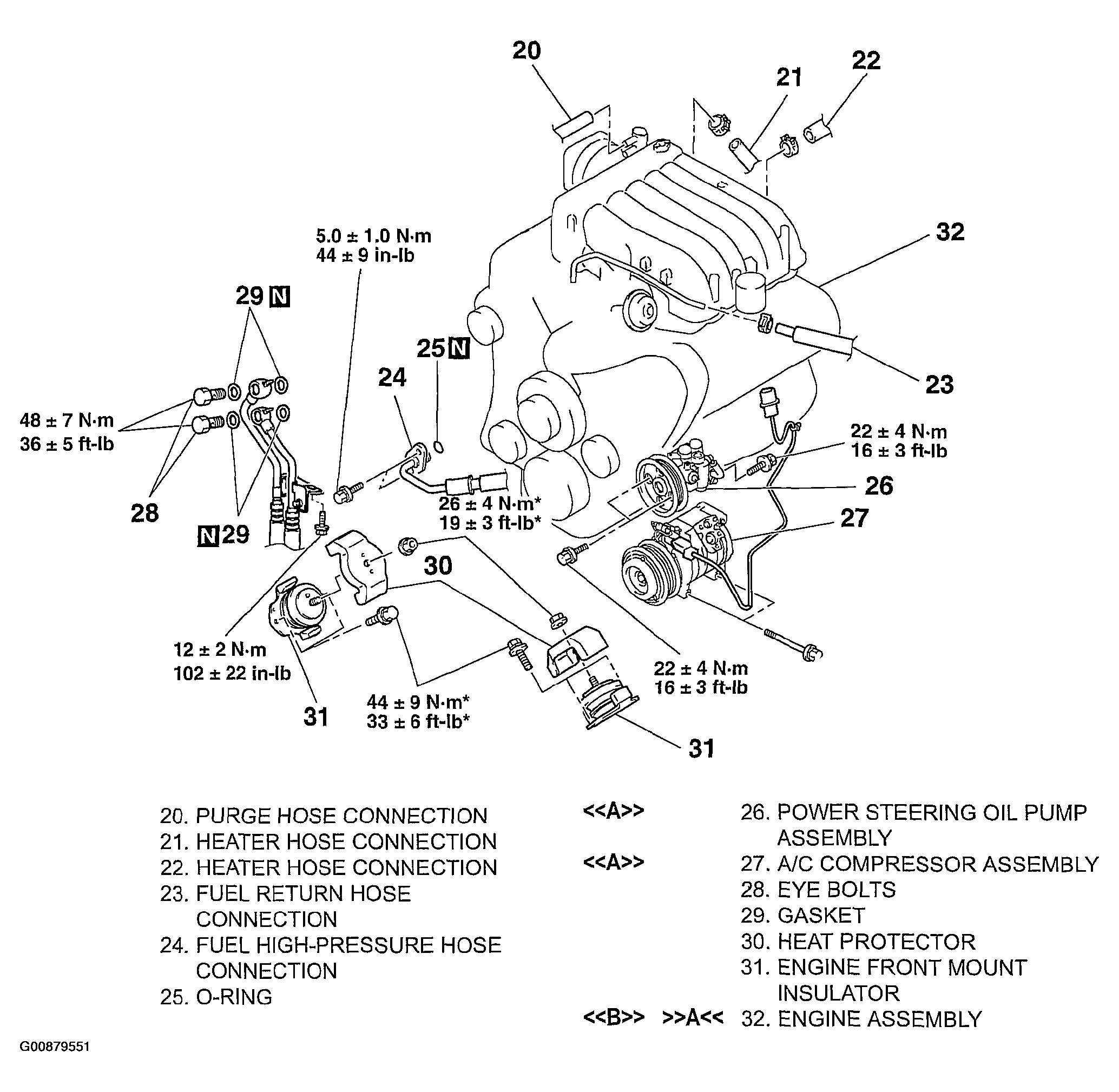

Fig 2: Removal And Installation Of Engine Assembly (2 Of 2)
G00879551Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
